Specific Venting Requirements: Concentric Adapter Box Pipe Connections
NOTE: Do NOT make actual connections until after reading the instructions and length require-
ments for installing the vent/combustion air kit. The connection requirements are the same for
both vertical and horizontal systems, but the length of the double-wall pipe will vary.
When pipe diameters differ, depending on direction of airflow, join the pipes with either a tapered reducer or enlarger
as shown in Figure 11.

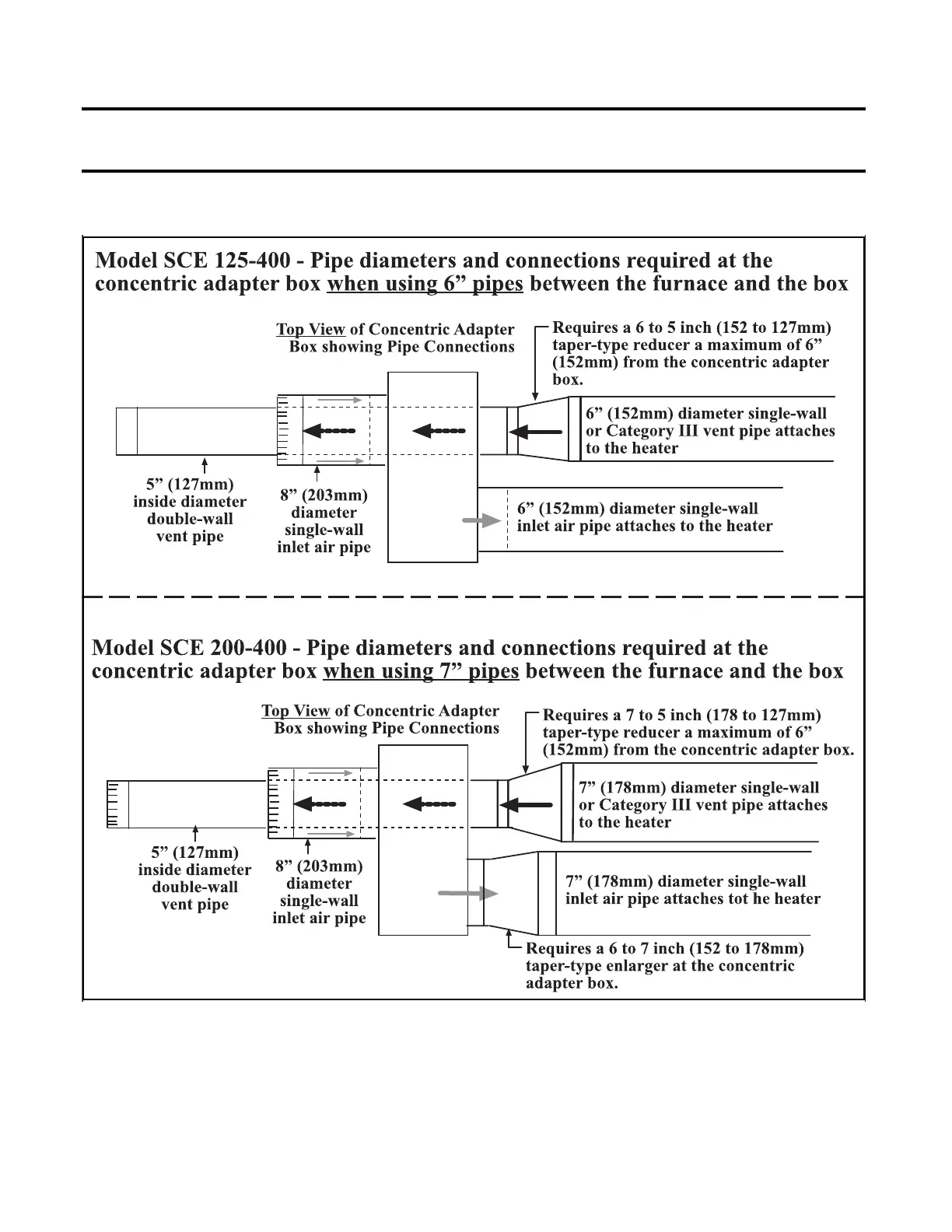

Figure 11. Concentric Adapter Box Connections
