The Eagle Manual
7

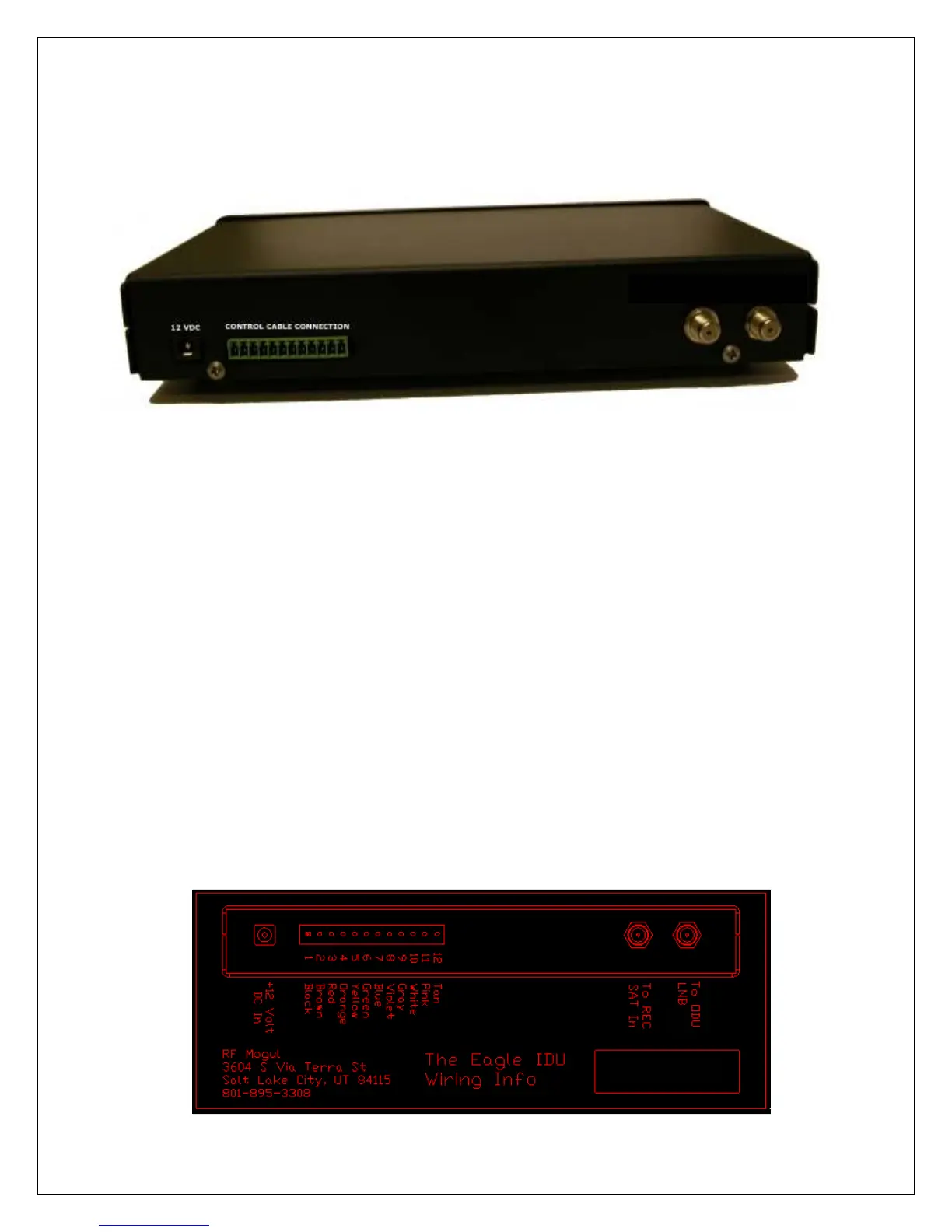

REAR VIEW
Definitions and Usage
CONNECTIONS
POWER
12 VDC 7 amp (power supply provided).
CONTROL CABLE CONNECTION:
Termination of the 12 wires of the control cable to the controller takes place here.
TO SATELLITE RECEIVER
This is a coax pass-through connection to your satellite receiver (Satellite IN). It is
optional except for DirecTV SWM.
TO ODU LNB:
This is a coax connection to the Antenna's LNB. The connection is made at the base of the mount to
any one of 4 coax cables that run through the mount and are secured to the LNB.
If you have DirecTV SWM, then the cable attached to the DiSEqC switch must be routed
directly to the controller uninterrupted then to the connection marked "TO LNB". (see configuration to
determine which coax at the base of the mount goes to the controller).
Label on the bottom of the controller
CONTROLLER (IDU)
