Connector Wiring Diagram
onnector Wiring Diagramonnector Wiring Diagram
onnector Wiring Diagram
Wiring the

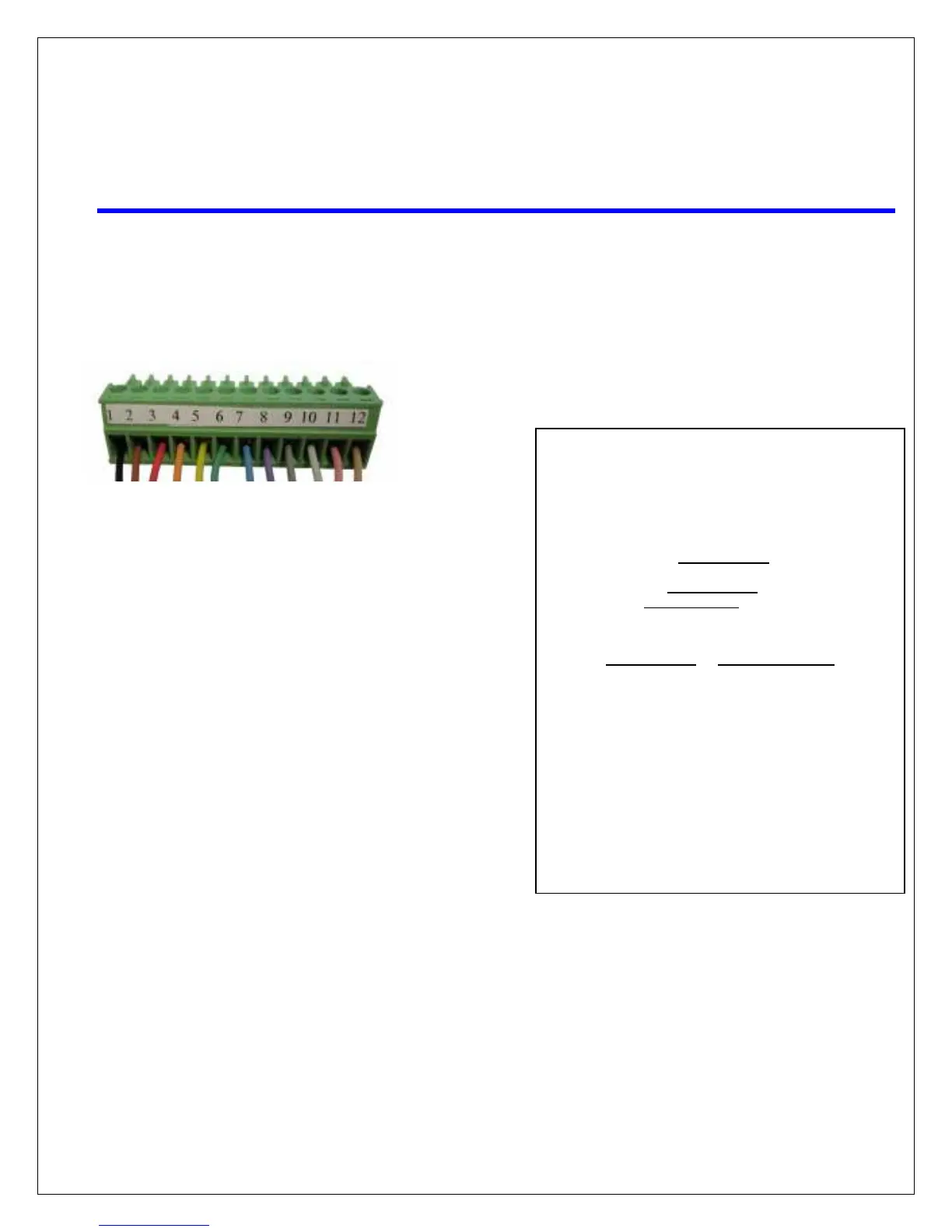

12 Pin Controller Connector
Pin Color How Used Where Used
1 = BLACK Motor -Azimuth
2 = BROWN Motor +Azimuth
3 = RED Motor -Elevation
4 = ORANGE Motor +Elevation
5 = YELLOW Motor - Skew
6 = GREEN Motor +Skew
7 = BLUE Count Azimuth
8 = VIOLET Count Elevation
9 = GRAY Count Skew
10 = WHITE Ground
11 = PINK 12 Volts DC GPS
12 = TAN GPS TXD GPS
RAISING THE ODU
USING A 12 VDC SOURCE
TO RAISE THE MOUNT WITH A
BATTERY
Touch the following wires from the control cable directly to a drill
battery or any 12 VDC source and it will result in movement of the
ODU. To reverse the direction, reverse the wires to your battery.
• ELEVATION Red and Orange will raise and lower the
mount
• AZIMUTH Black and Brown will rotate the dish
• SKEW Yellow and Green will tilt dish.
Wire Color Wire Function
BLACK +AZ
BROWN -AZ
RED +EL
ORANGE -EL
YELLOW - SKEW
GREEN +SKEW
