Communicating Furnace
Low airflow is 75% of full airflow with
switch 9 in the OFF position. If Switch 9
is in the ON position, low airflow is 50%
of full airflow.

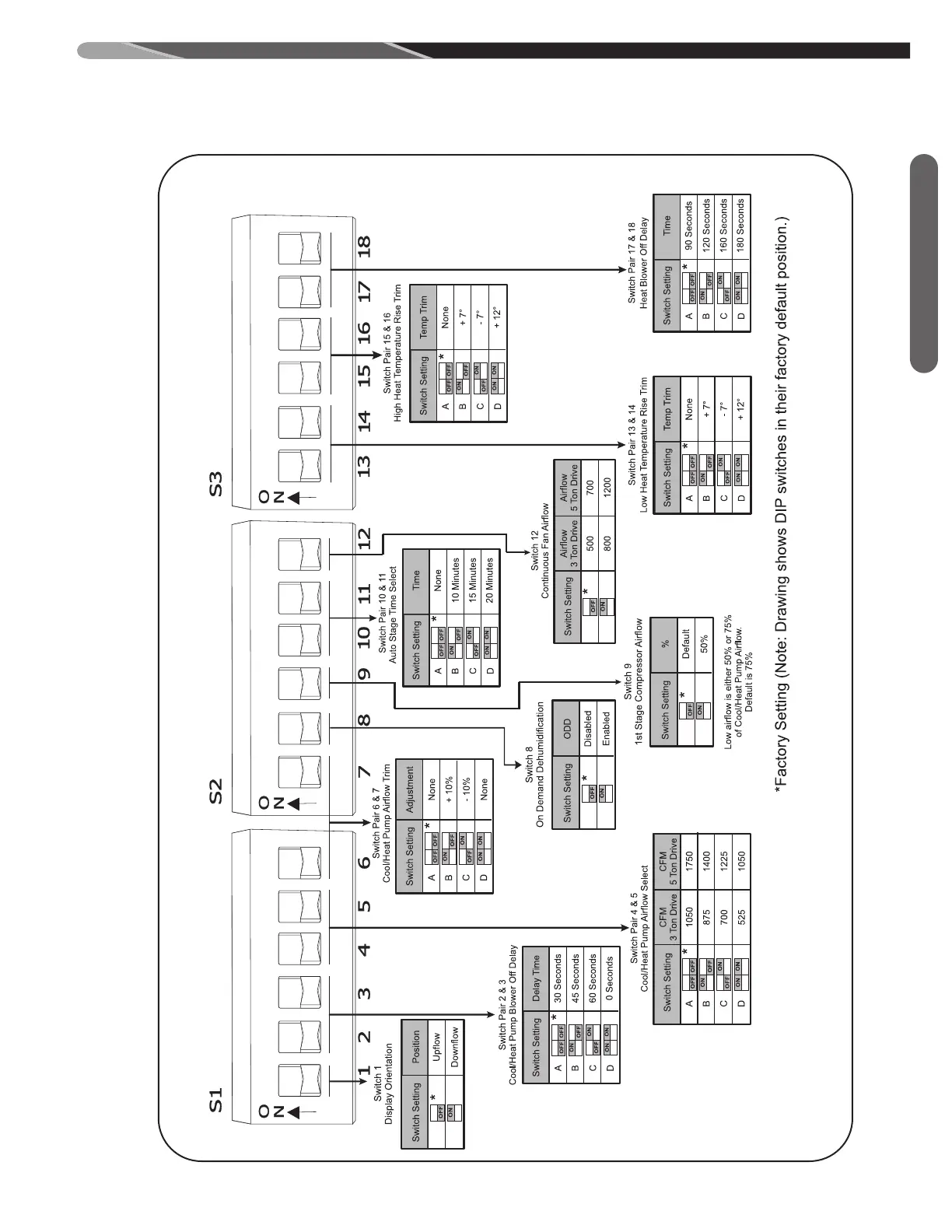

FIGURE 50
DIPSWITCH MAP
ST-A1210-03
The ECM motor used in this two-stage furnace is designed to deliver constant
CFM regardless of system static pressure. Design system static pressure should
never exceed 1.0 inches W.C.
