Rheem GHE80SS - Water Heater Location

17
Installation

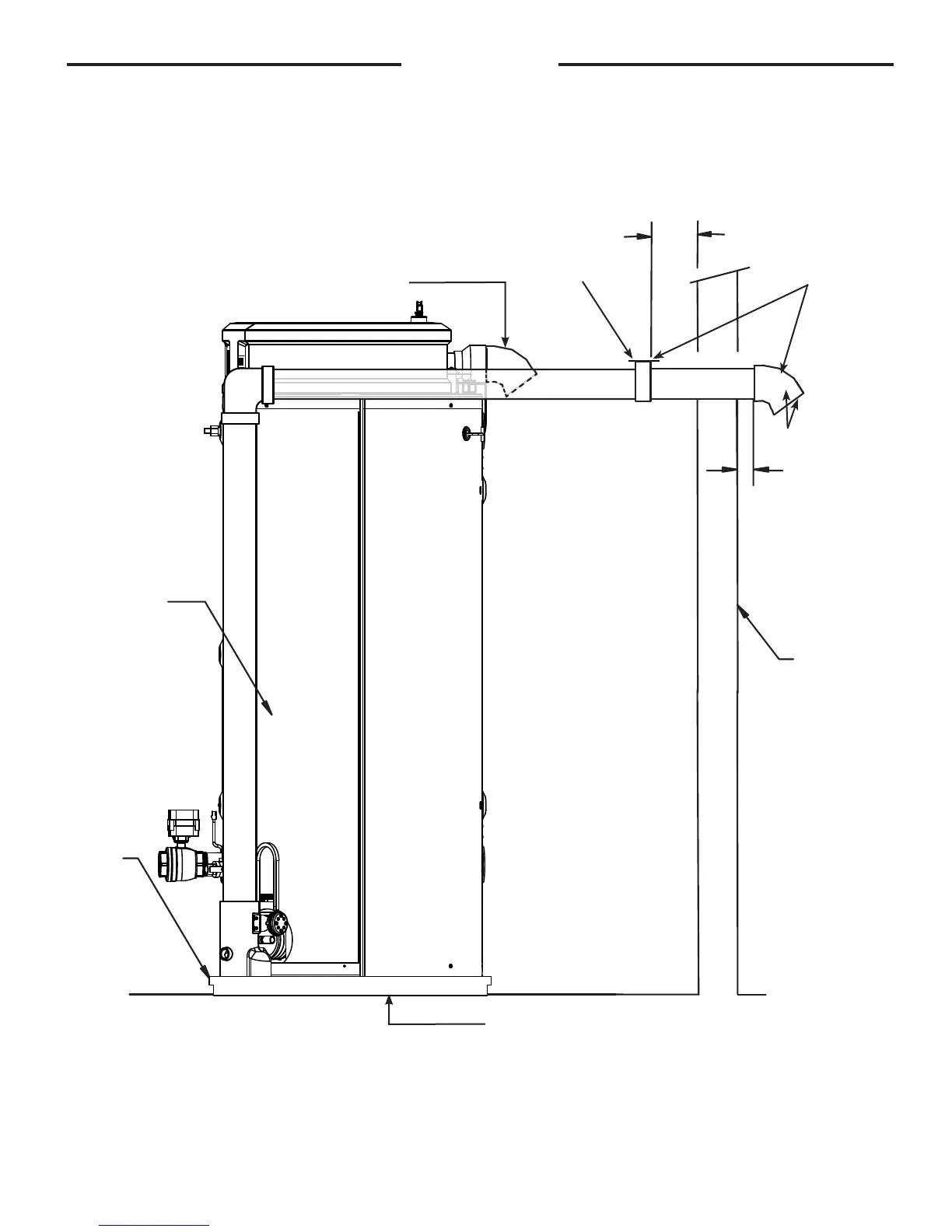

Figure - 10- Typical Horizontal Power Vent System
* A 6 inch pipe can be used on 300,000 Btu/h models and above.
EVERY 3' MAX.
When 6 inch pipe is used, start pipe
supports as close as possible to unit.
2, 3, 4, OR 6*
INCH PIPE AND
FITTINGS
SUPPORT BRACKET
45° TERMINAL
1 IN. MAX.
WALL
WATER
HEATER
DRAIN
PAN
FLOOR
