24 VAC THERMOSTAT
(TSTAT) INPUTS (J4 & J6)
24 VAC THERMOSTAT (TSTAT)
INPUTS (J4 & J6)
These connections are used with any
traditional 24VAC one-stage or two-
stage thermostat. Fully communicating
thermostats must be connected to the
COMM NETWORK CONNECTION
(see section titled
CCOOMMMMUUNNIICCAATTIINNGG
SSYYSSTTEEMMSS
of this document for
details).
WW11,, WW
22,, YY11,, YY22,, GG,, CC aanndd RR
are the
traditional
thermostat inputs used in
nearly all HVAC equipment. Installation
of the thermostat to these connections
is straight-forward and simple.
HHUUMM SSTTAATT
– T
his terminal is used
to connect the output of a humidistat
to the furnace control to control
humidification and/or dehumidifica-
tion. Optional equipment is required
for these features. Please see the
section titled
HUMIDIFICTION AND
DEHUMIDIFICATION
of this docu-
ment for more details.

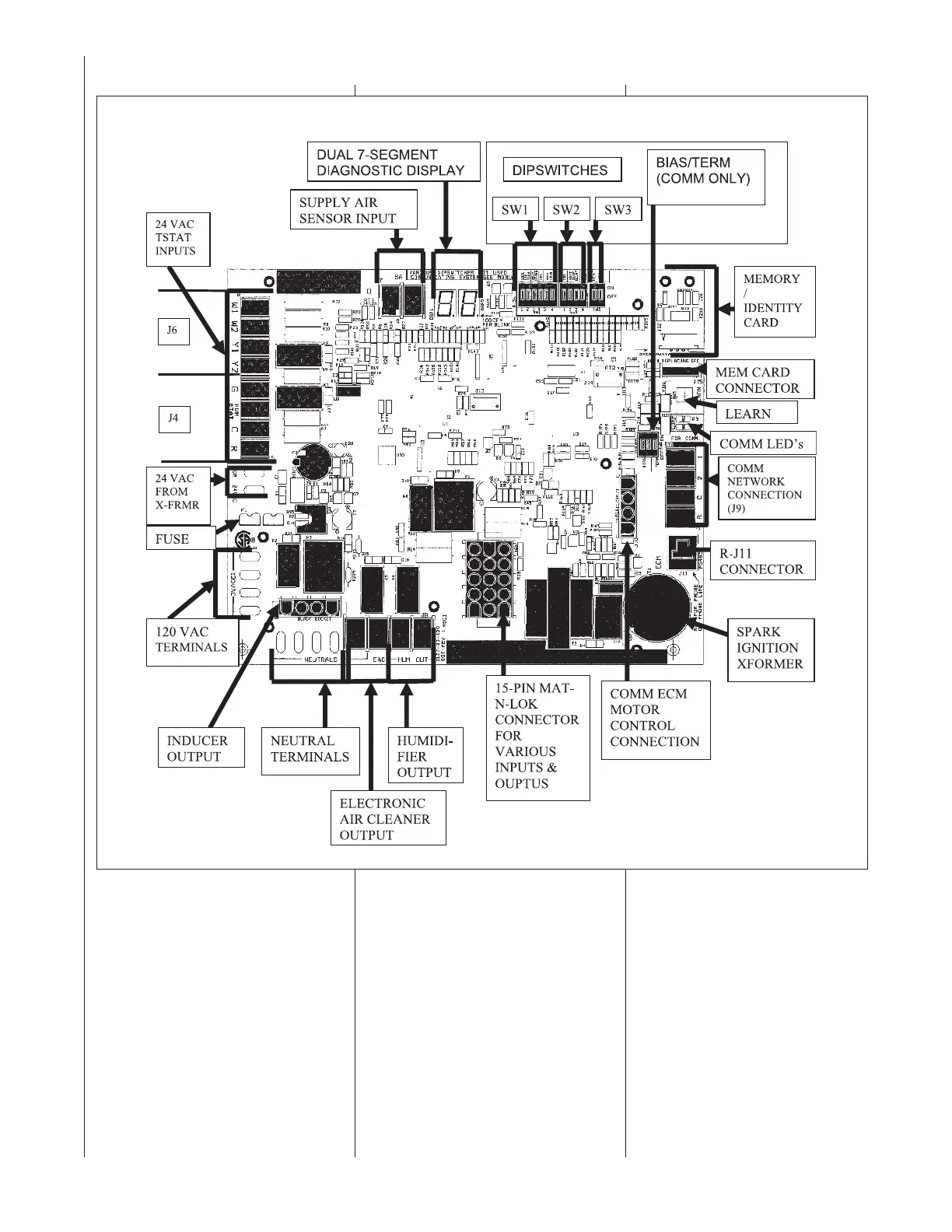

INTEGRATED FURNACE CONTROL (I.F.C.)
FIGURE 26
TWO-STAGE CLIMATE-TALK COMMUNICATING FURNACE CONTROL (RHEEM # 62-102784-01)
33
