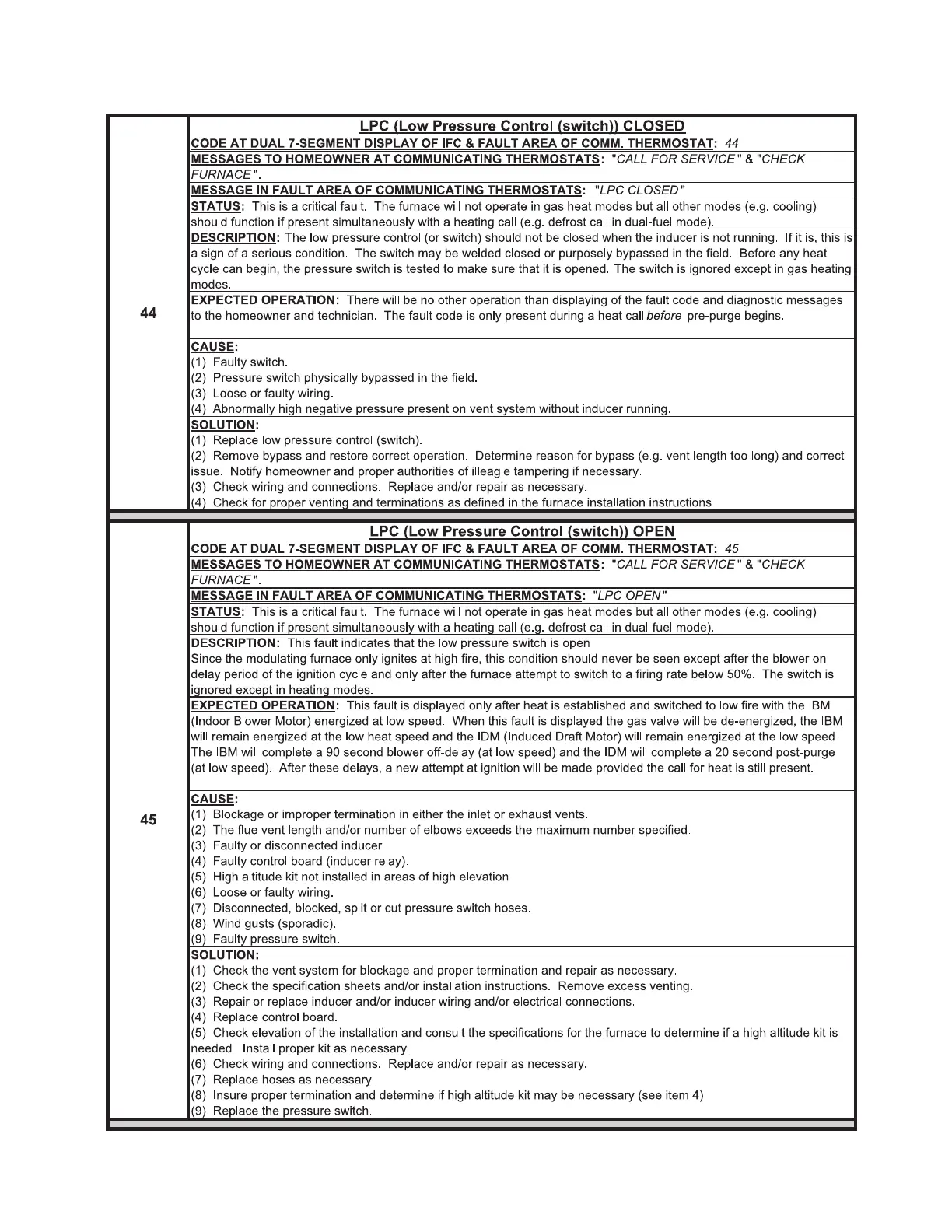

Rheem RGPE series - Furnace Fault Codes - Pressure Switches; Fault Code 44: LPC Closed; Fault Code 45: LPC Open

Rheem RGPE series

96 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

TABLE 20

FURNACE FAULT CODES EXPANDED W/DESCRIPTIONS AND SOLUTIONS – CONTINUED

when the inducer is energized at high speed.

73

Table of Contents

Default Chapter1
- Communicating Thermostats1
- Installation Instructions1
