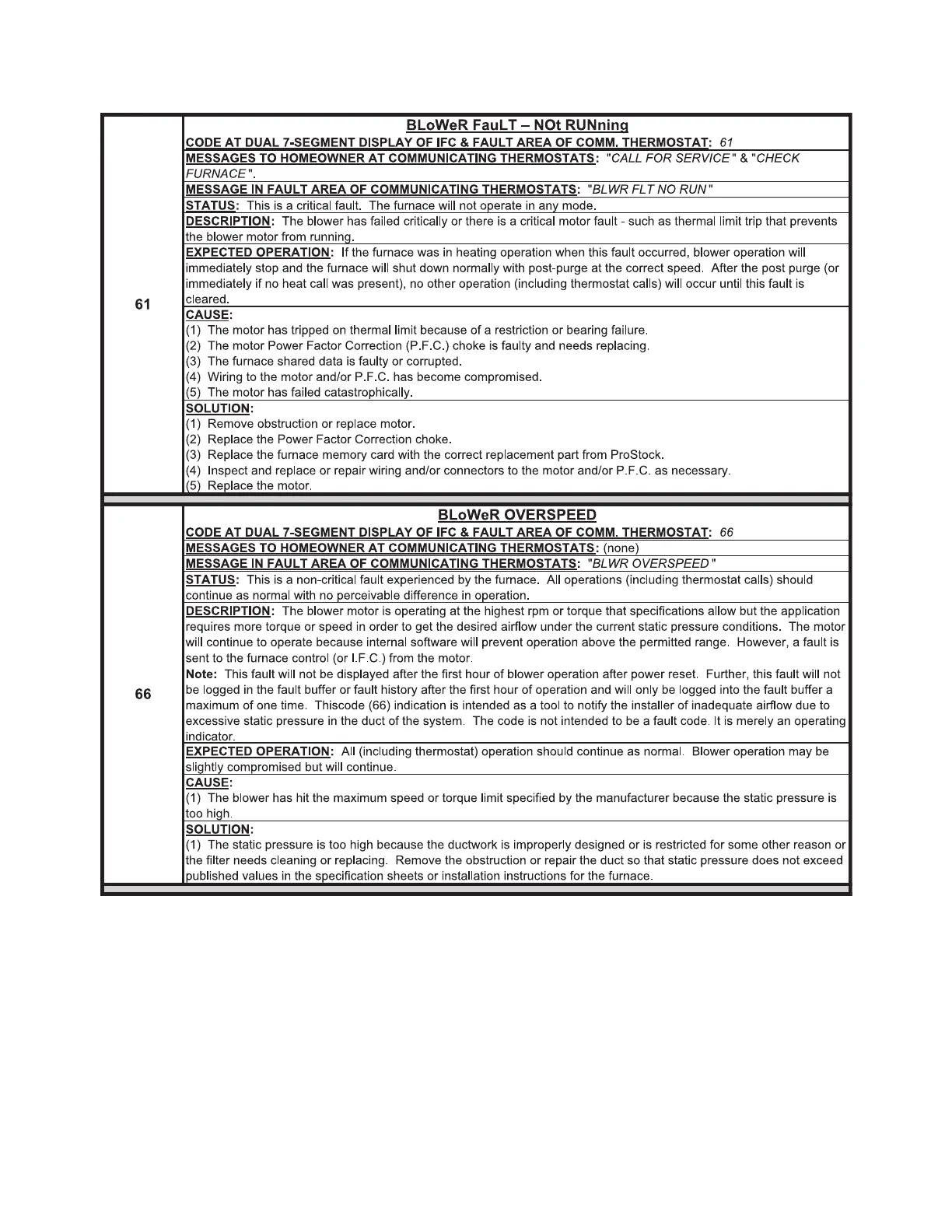

Rheem RGPE series - Furnace Fault Codes - Blower Operation; Fault Code 61: Blower Fault - Not Running; Fault Code 66: Blower Overspeed

Rheem RGPE series

96 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

TABLE 20

FURNACE FAULT CODES EXPANDED W/DESCRIPTIONS AND SOLUTIONS – CONTINUED
