Rheem RTGH-RH11DV Service Manual

8
NameofComponents

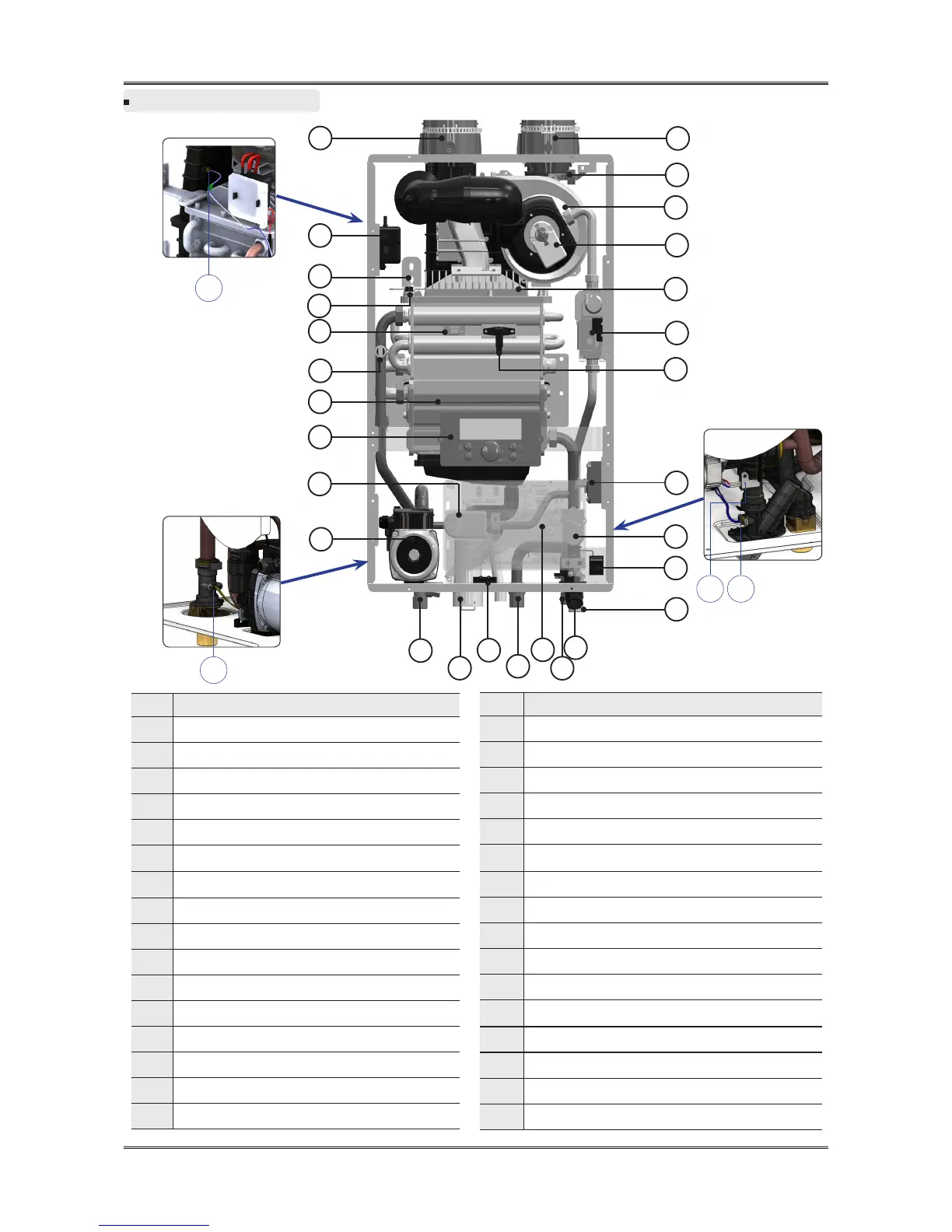

Chapter1ProductCharacteristics
30
NO Name of Component
1
Exhaust Outlet Collar
2
Ignition Trans
3
Ignition Rod
4
Over-heating Switch
5
Primary Heat Exchanger
6
H/E Temperature Sensor
7
Secondary Heat Exchanger
8
Control Panel
9
Mixing Valve
10
Recirculation Pump
11
'DHW' supply Adapter
12
Condensate Trap
13
Low level sensor
14
Recirculation Return Adapter
15
Main Controller
16
‘DHW’ Inlet Filter
NO Name of Component
17
‘DHW’ Inlet Adapter
18
Gas Inlet Adapter
19
Manual Power Switch
20
Water Flow Control Valve
21
Air Pressure Switch
22
Flame Detection Sensor
23
Gas Valve
24
Burner Case
25
AGM(Air Gas Mixer)
26
BLDC Fan
27
Air Intake Filter
28
Air Intake Collar
29
Exhaust Thermistor
30
Heat Exchanger Thermistor
31
Cold Water Thermistor
32
Flow Sensor
3
5
2
1
4
6
7
8
9
29
3132
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
