Chapter5ReplacementInstructions
MaincomponentsReplacementInstructions

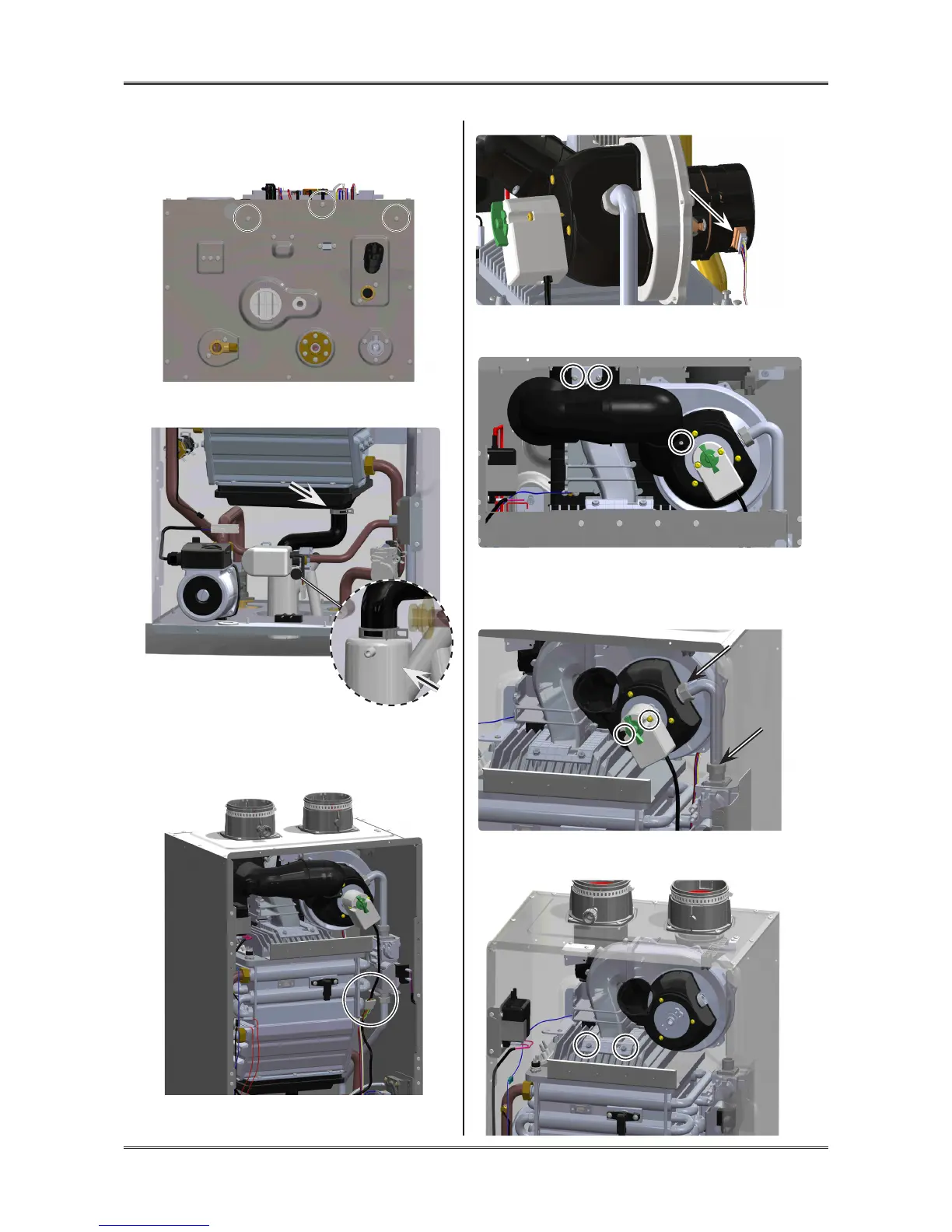

11.UnplugconnectorsonCircuitBoard.
12.LoosenthethreescrewstoremovetheCircuit
BoardandCircuitBoardBracketasonepiece.
13.Removetwoclipsandthenpulloutthe
CondensateHose.
2)RemoveFanconnector.
3)Loosenthreescrewstoremoveairpipe.
SeparateintakepipeattachedtoAGM.
4)LoosengaspipenutconnectedwithAGM.
Byusingahandscrewdriver,remove2screwsofthe
AGM.
5)Loosenburnerplatebracket’sbyloosentwoscrews
asshown.
14.RemovetheFanassembly.
1)RemoveAGMconnector.
