RHINO DM112 User Manual

ASSEMBLY
DM 07-02
© 2004 Alamo Group Inc.
Assembly Section 3-5

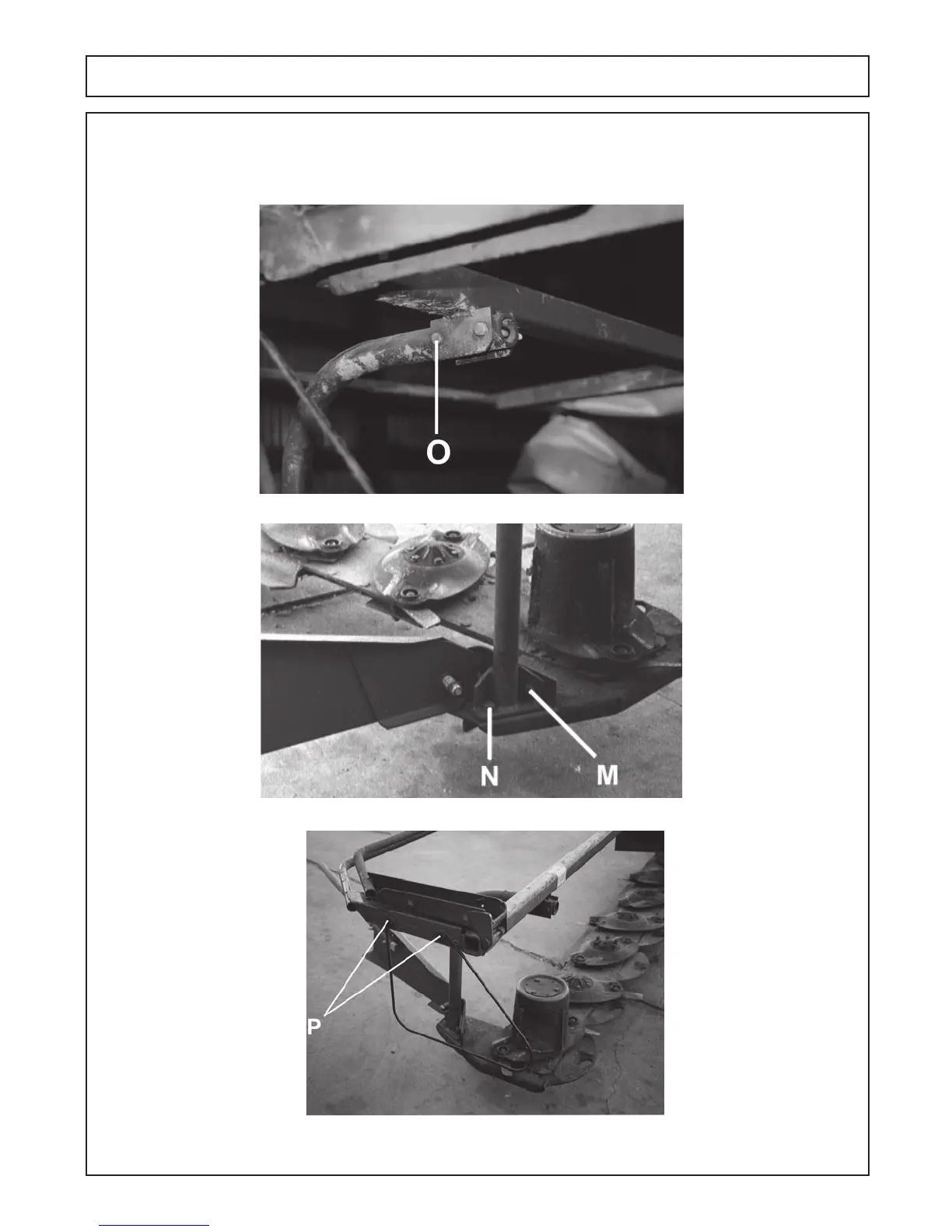

14. Attach the outer support weldment to the swath board bracket and the cover frame tube as shown (Figure
11&12).Using two M10 x 75 mm bolts and locknuts on top (O), and one M12 x 50mm bolt (N), and one M12 x
50mm carriage bolt (M).
15. Install the outer tarp support spring to the rear cover frame (P) as shown (Figure 13).
Figure 11
Figure 12
Figure 13
