MAINTENANCE
DM 07-02
Maintenance Section 5-6
© 2004 Alamo Group Inc.

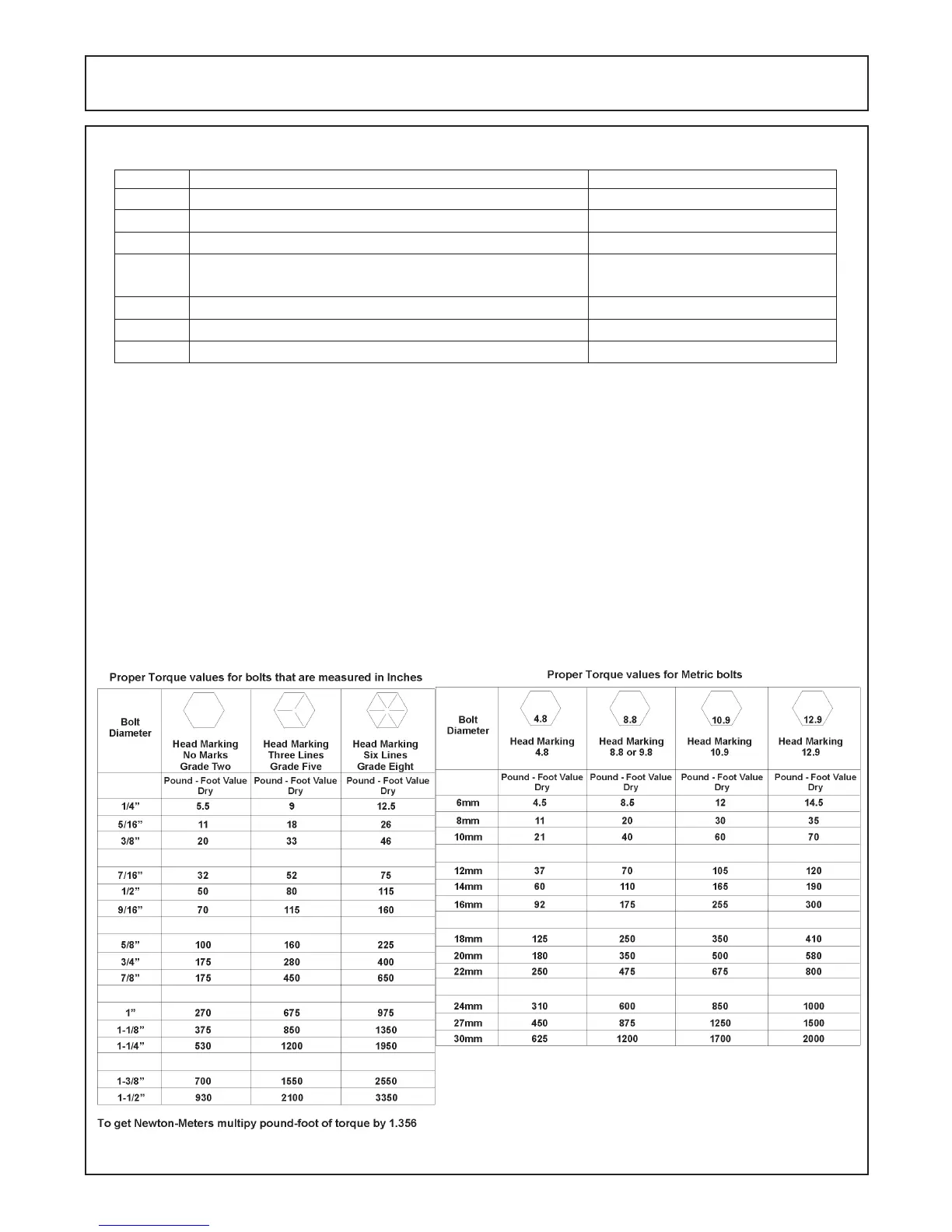

PROPER TORQUE FOR FASTENERS
Because of the severe operating conditions, correct bolt torque is very important. An improperly torqued bolt
can be easily shaken loose or broken by the vibrations. When replacing bolts, always use the same grade of
bolt as used originally. Use this chart as a guide to tightening all bolts. Torque values listed are for general use
only.
Lubrication Chart
Location Description Lubrication Frequency
1 Front IID U-joint After Every 8 Hours of Operation
2 Rear IID U-joint After Every 8 Hours of Operation
3 IID Shaft Slip Joints After Every 8 Hours of Operation
4 Gearboxes and Cutter Bar, Fill to respective Level Check Level After Every 8 Hours
Plug w/SAE EP90 or Equivalent Gear Lube of Operation
5 Main Frame Pivot Point Daily
6 All Sliding Sections After Every 8 Hours of Operation
7 All Pivots & Linkage After Every 8 Hours of Operation
NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil.
They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used.
This applies to both UNF fine and UNC coarse threads.
RECOMMENDED TORQUE IN FOOT POUNDS UNLESS OTHERWISE STATED IN THE MANUAL *
FIGURE 18
*
