Operation Section 4-9
OPERATION
DM 07-02
© 2004 Alamo Group Inc.
Figure 22
Figure 23
WARNING! SECURE TRANSPORT LOCK BEFORE TRANSPORTING MOWER, OTHERWISE MOWER
HEAD LIFT CYLINDER MAY LEAK DOWN RESULTING IN POSSIBLE INJURY OR DEATH
TO BYSTANDERS.
TRANSPORT
LOCK STORAGE
TRANSPORT
LOCK

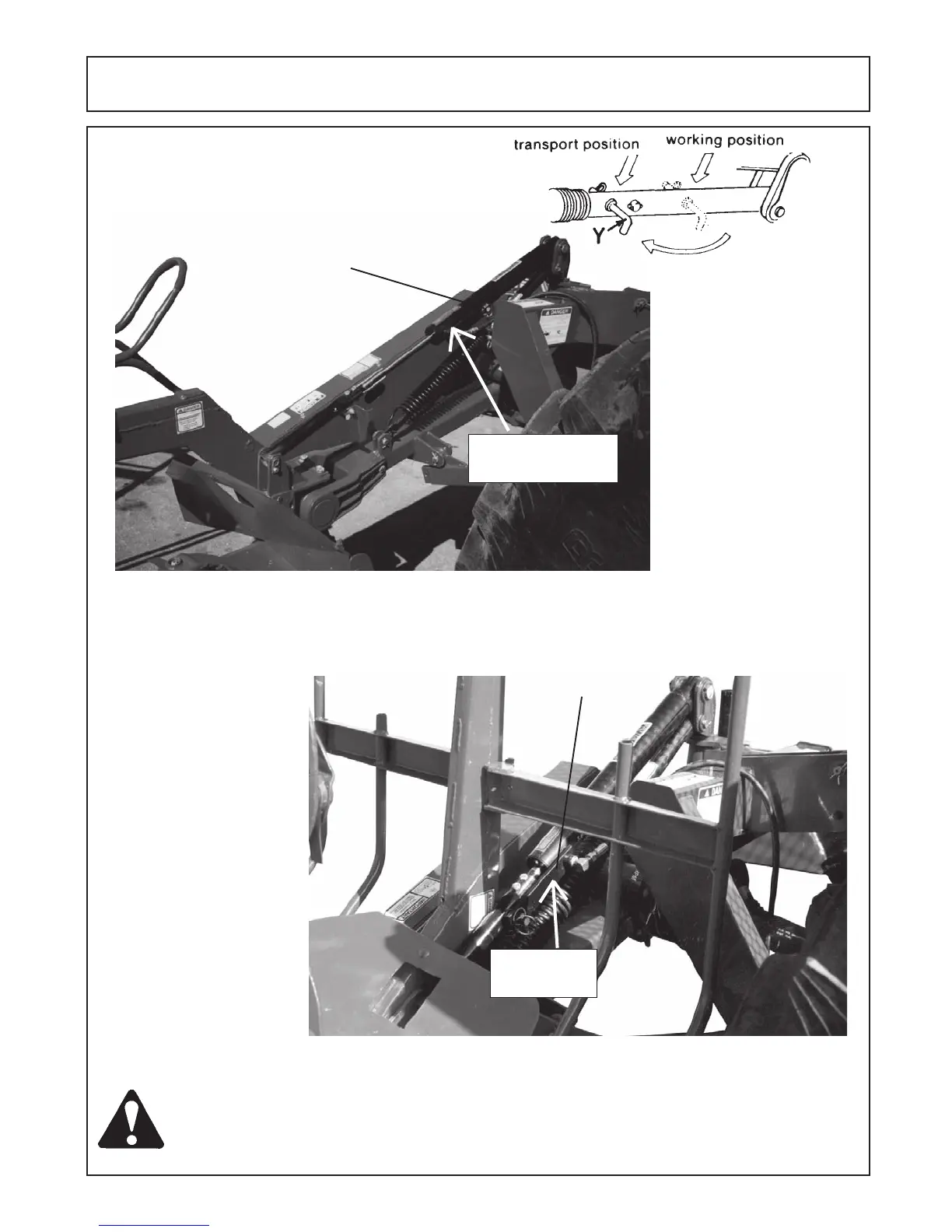

3. Remove the Lock Pin (Y) from the suspension tube.
After raising the bar to the transport position, move the
lock pin to transport position and secure with hairpin cotter.
(See Figure 21)
Figure 21
J
K
4. Raise the cutter bar using the tractor hydraulics. (See Figure 23).
5. To lock the cutterbar in the transport position; remove lynch pin from storage pin (J) on front of cylinder, rotate
lock plate (K) and latch over pin on rod end of cylinder as illustrated in Figure 23 . Secure with lynch pin.
6. To Unlatch: Raise
hydraulic cylinder until load is
off lock plate. Remove lynch
pin and rotate lock plate and
latch over upper front pin on
barrel end of cylinder. Secure
with lynch pin.
