DRIVELINE LUBRICATION

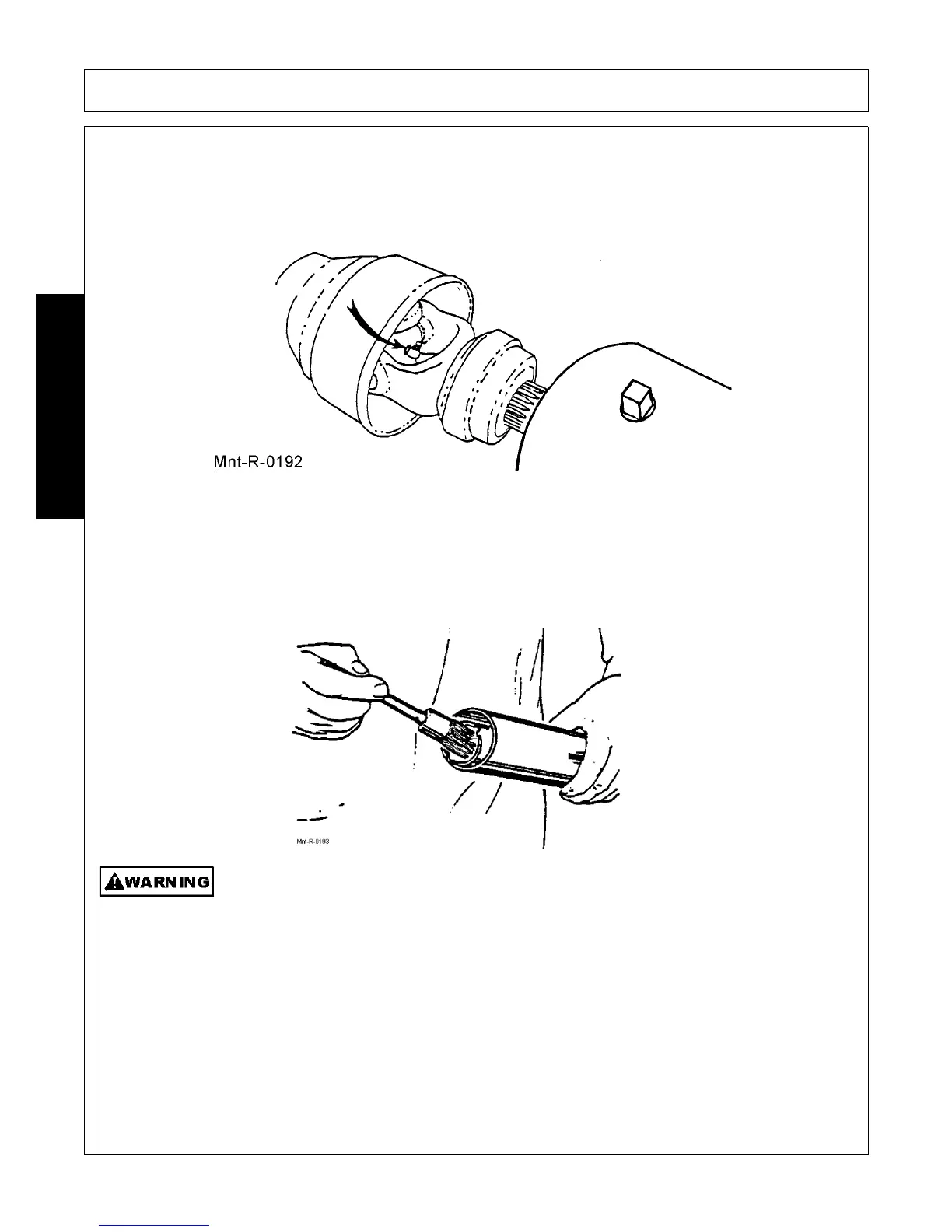

Grease Fittings are located on the Cross Assembly of each U-Joint and on the telescoping tubes. Grease the
U-Joint after each 8 hours of use. Mnt-R-0192. Do not force grease through the Needle Cup Assemblies.
The telescoping PTO shaft inside the shielding must be lubricated daily. Mnt-R-0193.
Disconnect driveline from tractor and pull halves apart. Insert grease into outer profile cavity on half attached to
gearbox and spread evenly. Install driveline halves together.
Reconnect driveline to tractor. Raise and lower cutter after applying grease to spread over joint working area
.
When attaching PTO yoke to tractor PTO shaft, it is important that the spring-activated
locking collar slides freely and locking balls are seated in groove on PTO shaft. A loose
yoke could slip off and result in personal injury or damage to cutter.
