MAINTENANCE
BELT REMOVAL/INSTALLATION
Shut off mower and tractor. Use following procedure to access belt and sheaves.
1. Remove driveline from gearbox shaft.

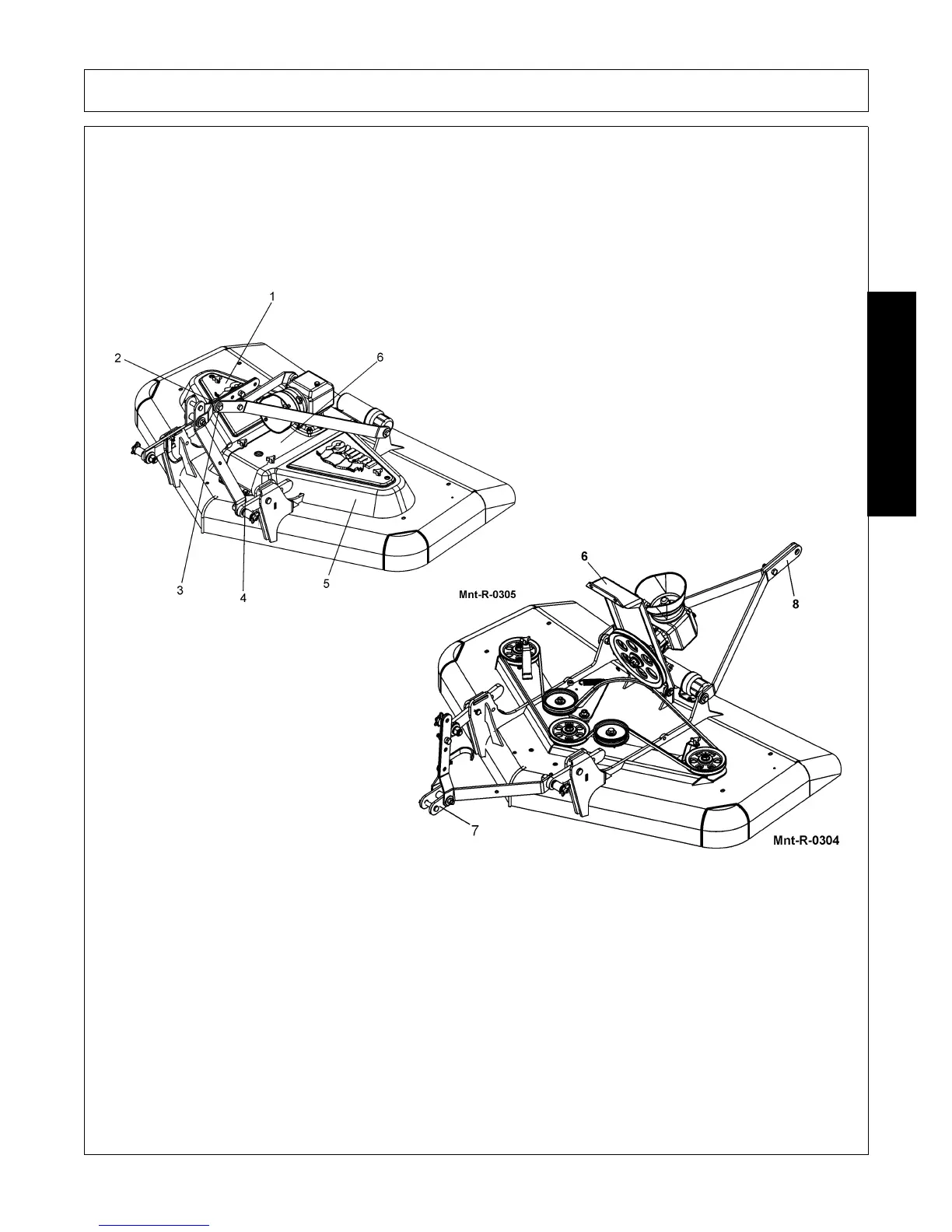

2. Remove belt shields (1) and (5)
3. Remove bolt (3) from rear braces and toggle link. Mnt-R-0305(
4. Rotate A-frame (7) to front and rear braces (8) to rear as shown. Mnt-R-0304
5. Remove bolts (4) from front gearbox mount plate (6) as shown. Mnt-R-0305
6. Disconnect spring from loop welded to frame rib.
7. Lift gearbox mount plate (6) to access belt, sheaves, and spindles. Securely block gearbox mount to
prevent it from falling forward.
Remove old drive belt. Install new drive belt and reassemble using reverse procedure listed.
