SAFETY
TM60/72/84/100 0
2/11
Safety Section 1-26
© 201
1 Alamo Group Inc.

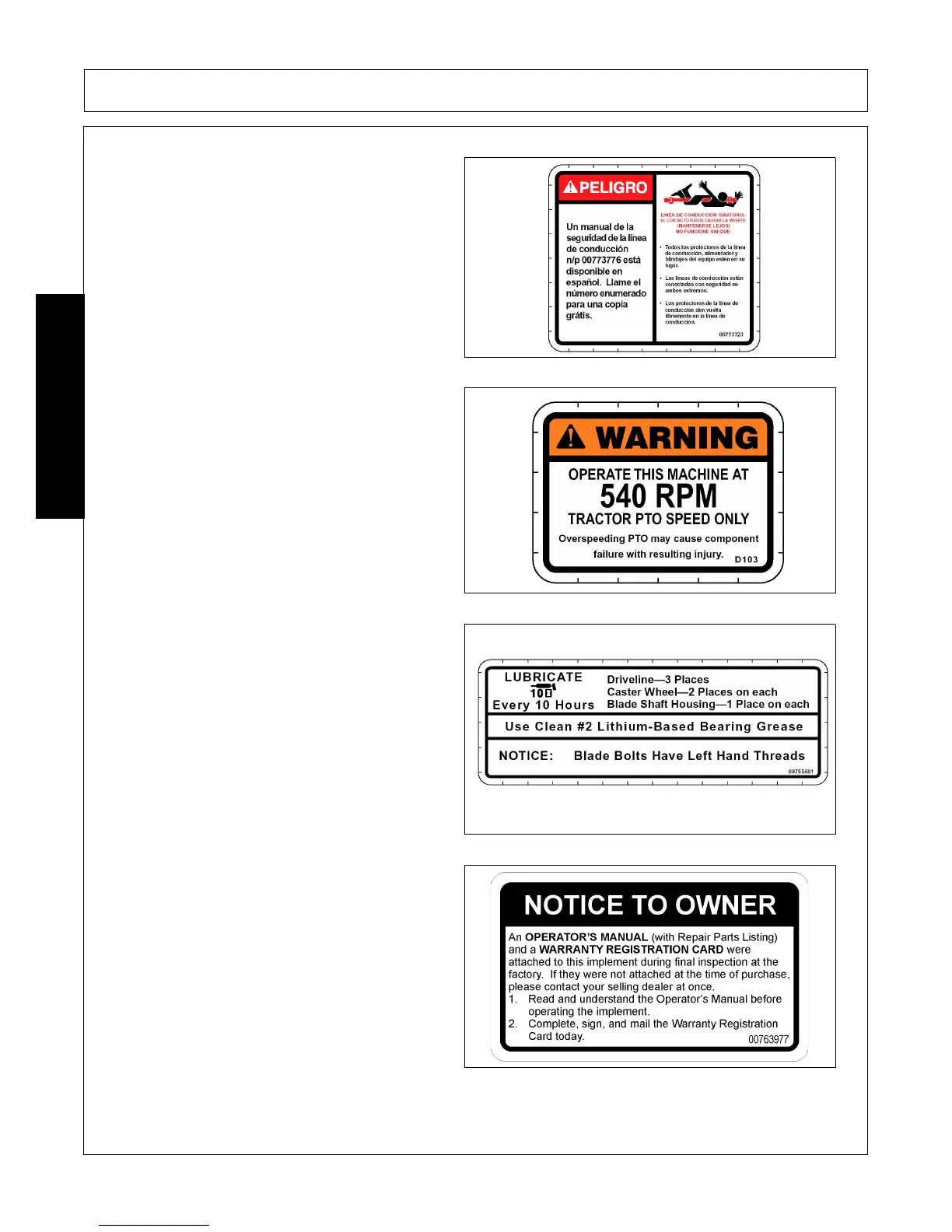

SAFETY
PELIGRO! S
pan
ish T
ranslati
on for Driveline Safety
P/N 00773723
W
ARNING! Avoid Bodily Injury
, U
se 540RPM PTO
S
peed Only
.
P/N D103
10 Hour - Lubrication Decal
P/N 00755691
Operator's Manu
al (with repair pa
rts) and warranty
was attached
to this implement during final
inspection.
P/N 00763977
31
33
Table of Contents
English
5
Table of Contents
5
Safety Section
7
General Safety Instructions and Practices
8
Operator Safety Instructions and Practices
9
Equipment Operation Safety Instructions and Practices
12
Connecting or Disconnecting Implement Safety Instructions and Practices
19
Transporting Safety Instructions and Practices
20
Maintenance and Service Safety Instructions and Practices
22
Decal Location
25
Decal Description
27
Federal Laws and Regulations
36
Safety Alerts
39
A Word to the User/Operator
39
The Industrial/Agricultural Mower
40
Follow a Safety Program
41
Prepare for Safe Operation
45
Start Safely
49
Operate Safely
49
Park Safely
54
Shut down Safely
54
Perform Maintenance Safely
55
Final Word to the User
62
Español
64
Default Chapter
64
Introducción
64
Alertas de Seguridad
65
Palabras para el Usuario/Operador
65
Cortadora de Césped Industrial/Para Agricultura
66
Cumplimiento del Programa de Seguridad
67
Preparación para una Operación Segura
71
Arranque con Seguridad
75
Operación con Seguridad
75
Apagado con Seguridad
80
Estacionamiento Seguro
80
Realización de Mantenimiento con Seguridad
81
Palabras Fi Nales para el Usuario
88
Introduction Section
89
Assembly Section
93
Dealer Set-Up Instructions
94
A-Frame Attachment for Tm60-72-84
95
A-Frame Attachment for Tm100
96
Caster Wheel Attachments
97
Driveline Attachment - to Gearbox
98
Operation Section
99
Standard Equipment and Specifications
101
Operator Requirements
102
Tractor Requirements
103
ROPS and Seat Belt
103
Tractor Safety Devices
103
Tractor Horsepower
104
Tractor 3-Point Hitch
104
Front End Weight
104
Power Take off (PTO)
105
Getting on and off the Tractor
105
Boarding the Tractor
106
Dismounting the Tractor
106
Starting the Tractor
107
Connecting the Mower to the Tractor
107
Connecting the Mower
108
Setting the Mower
108
Cutting Height Adjustment
109
Driveline Attachment
110
Driveline Length Modification
110
Pre-Operation Inspection and Service
112
Tractor Pre-Operation Inspection/Service
113
Mower Pre-Operation Inspection/Service
113
Front Gauge Wheel Interference Check
115
Cutting Component Inspection
116
Blade Bolt Inspection
117
Driving the Tractor and Implement
120
Brake and Differential Lock Setting
121
Starting the Tractor
121
Raising the Mower
122
Operating the Tractor and Mower
122
Crossing Ditches and Steep Inclines
123
Operating the Tractor and Implement
124
Foreign Debris Hazards
125
Bystanders/Passersby Precautions
125
Engaging the Power Take off (PTO)
126
PTO RPM and Ground Speed
127
Operating the Mower
127
Shutting down the Implement
130
Disconnecting the Mower from the Tractor
131
Mower Storage
133
Transporting the Tractor and Implement
133
Transporting on Public Roadways
135
Hauling the Tractor and Implement
137
Troubleshooting Guide
138
Maintenance Section
141
Lubrication
142
Gearbox
143
Gauge Wheel Assemblies
143
Driveline Lubrication
144
Blade Spindle Lubrication
145
Blade Servicing
145
Blade Sharpening
146
Blade Removal
146
Blade Installation
146
Belt Adjustment Procedure
146
Belt Removal/Installation
147
Storage
148
Proper Torque for Fasteners
148
Gearbox Servicing
150
Gearbox Disassembly
151
Parts Inspection
152
Output Shaft Installation
152
Input Shaft Installation
152
Assembly Completion
152
Blade Spindle Instructions
153
Limited Warranty
154
