3.4 Installation
3.4.1 General notes
The cooling tower must always be installed on a flat, perfectly horizontal surface and, if in the version
with basin, in such a way that the underlying support is both uniform and uninterrupted.
3.4.2 Assembly of the components
3.4.2.1 Version with basin
n the case of a version with basin, for transportation reasons the cooling tower will be delivered in two
pieces: the main casing and the top part.

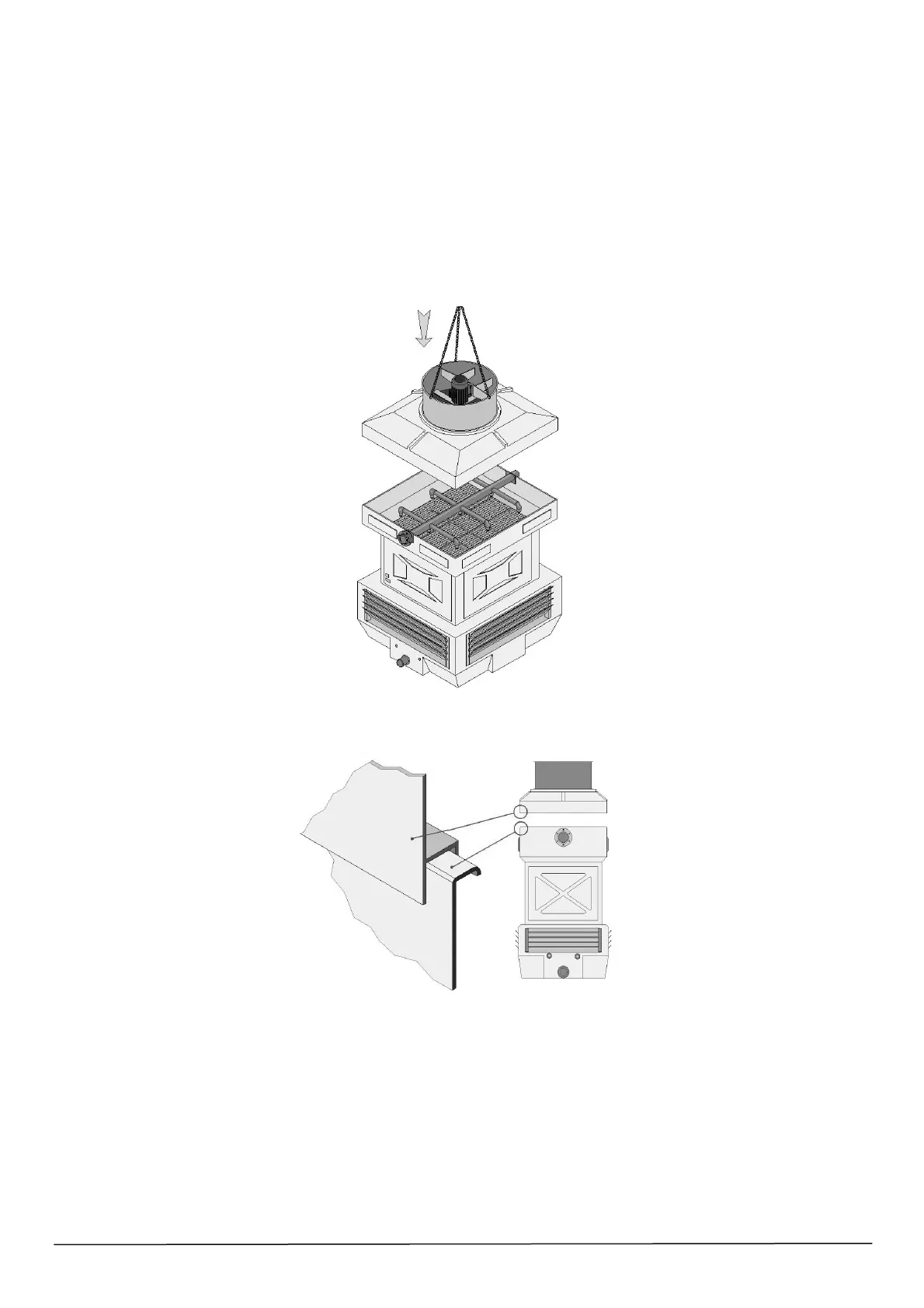

It will then be sufficient to position the top part above the main casing as shown in the figure [Fig. 07].
[Fig. 07]
the top part is fitted to the main casing by simply inserting the edge of the upper component over the edge
of the other [Fig. 08].
[Fig. 08]
