Revison 0.8.6 Document No. 01424
Page 10
STEP 1: Connect the patient ECG lead cable snap to the electrode.
STEP 2: Remove the protective backing from the electrode.
STEP 3: Apply the electrode to the patient’s skin. Apply each electrode to match
Figures 1 or 2 in this manual or as instructed by the physician.
6.1.1 3-lead configuration
Three color-coded lead wires are used to create two channels of ECG re
cording. This is a typical electrode placement:

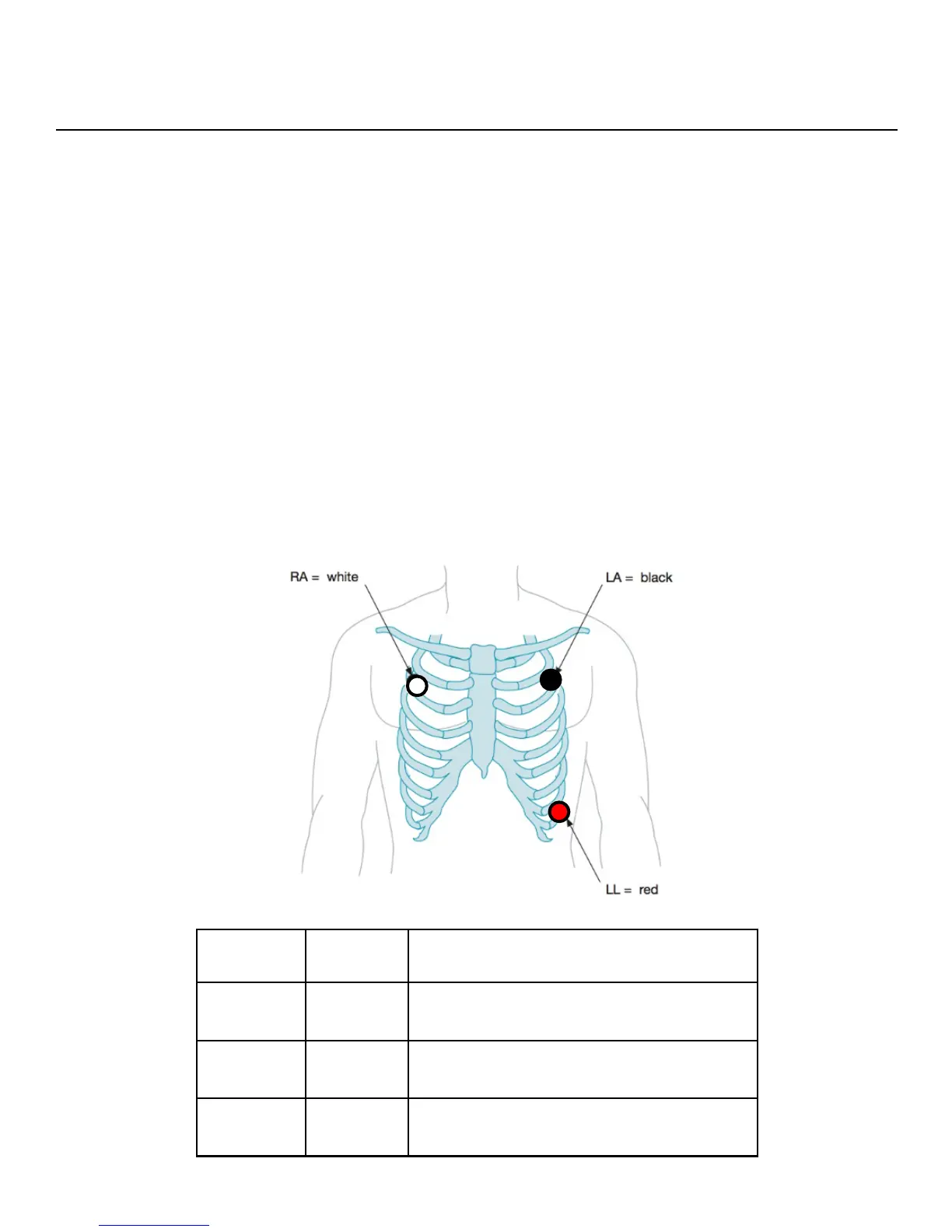

Figure 1—3-Lead Electrode Placement
# Color Location
RA White Upper-right portion of chest, 2 to 3
inches below collarbone
LL Red Below left breast, over lower
ribcage
LA Black Upper-left portion of chest, 2 to 3
inches below collarbone
