Revison 0.8.6 Document No. 01424
Page 12
6.2 Connecting the patient ECG lead cable to the
monitor

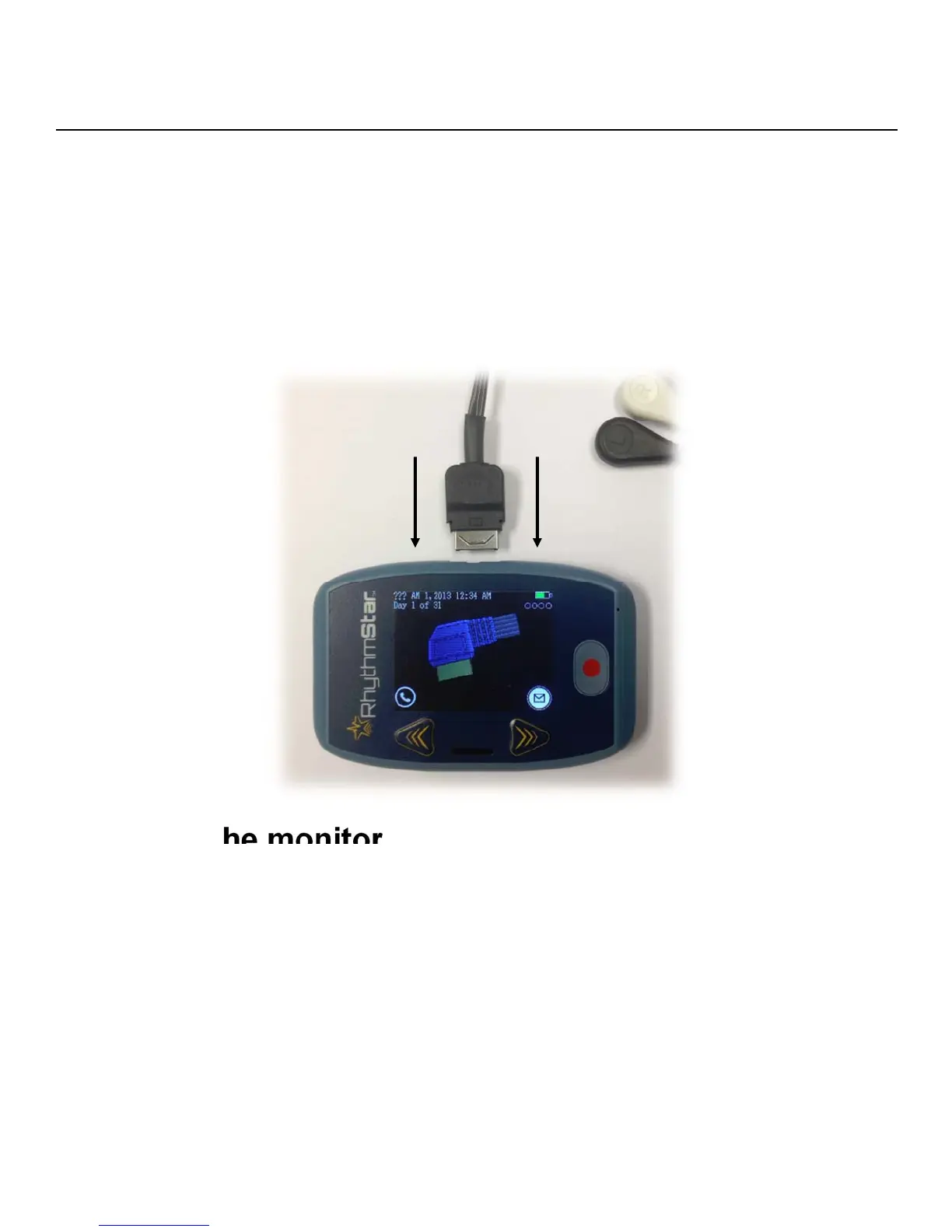

The cabl
e has a metal connector which can only be inserted one way into the cable
receptacle opening on the top portion of the RhythmStar monitor. Once aligned, firmly
insert the cable connector into the cable receptacle as pictured below:
7. Using the monitor
7.1 Powering on the monitor
RhythmStar does not contai
n a separate On/Off power button. When you are ready
to begin using RhythmStar, insert a charged battery into the monitor as pictured on
the following page.
