④ Lock Indicators
⑤ Up and down, left and right button
⑥ Enter button: for confirm
⑦ Menu button: for back step
⑧ Lock button: press to lock set

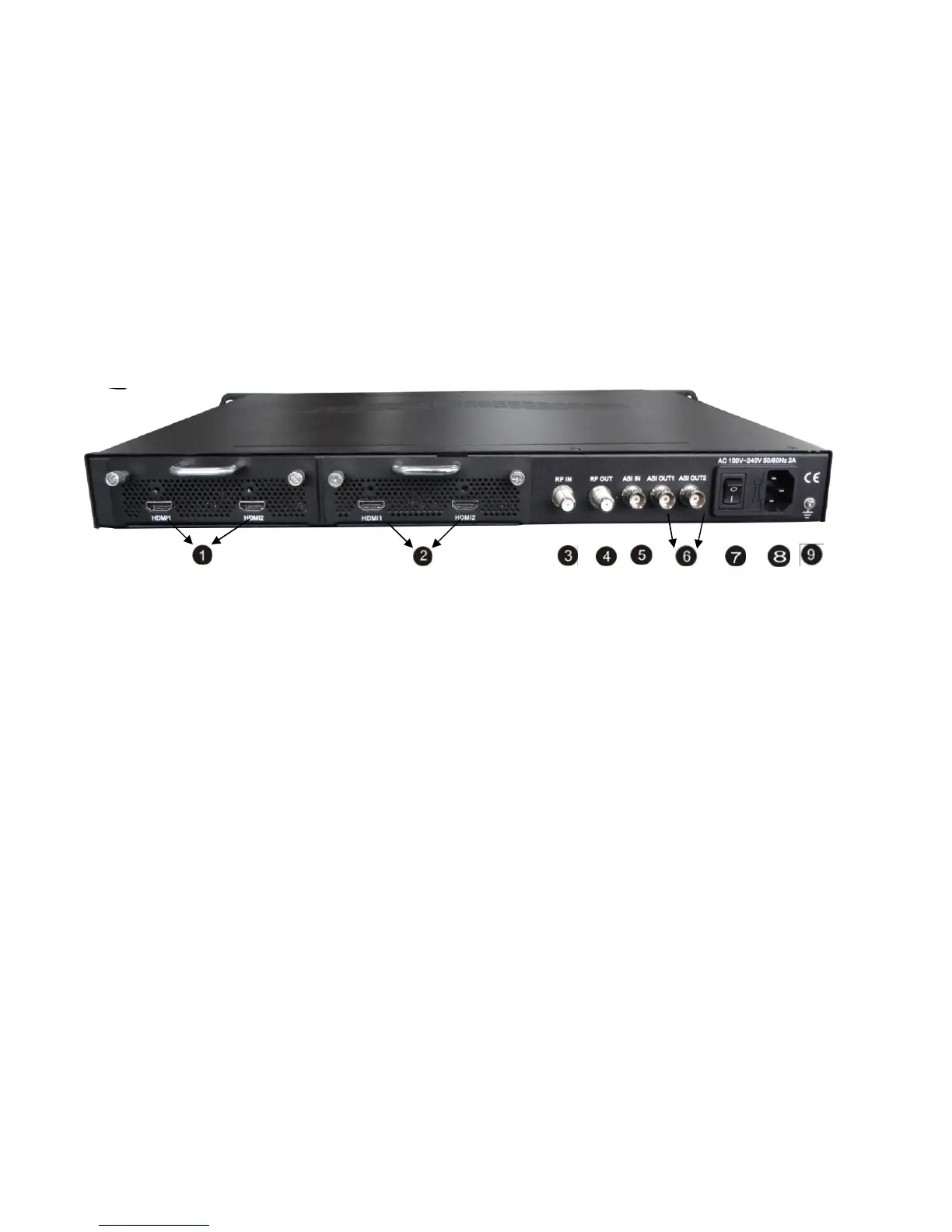

Rear Panel Illustration
HDMI Module 1: HDMI input port 1&2
HDMI Module 2: HDMI input port 3&4
RF in port (for combiner use)
RF out port
ASI input port
ASI output ports
Switch
Power supply slot
Grounding
