POINT B - SETTINGS
DIP 1 (ON) MOTOR ROTATION DIRECTION CHECK (See Point C)
DIP 2 (ON) PROGRAMMING (See Point D)
DIP 1-2 STORAGE/DELETION OF RADIO CODES FOR COMPLETE
OPENING (DIP 1 ON followed by DIP 2 ON) (POINT G) ONLY FOR CRX MODELS
DIP 1-3 STORAGE/DELETION OF RADIO CODES FOR PEDESTRIAN OPENING (DIP 1 ON
followed by DIP 3 ON) (POINT H) ONLY FOR CRX MODELS
DIP 2-1 PROGRAMMING OF THE PEDESTRIAN OPENING (See Point F)
DIP 3 ON - Automatic Closing ENABLED
OFF - Automatic Closing DISABLED
DIP 4 ON - Photocells active only in closing
OFF - Photocells always active
DIP 5 ON - blinker pre-flashing
OFF - blinker normal-flashing
DIP 6 OFF - STEP BY STEP
Single pulse contact (K BUTT)
Pedestrian button (PED BUTT)
Radio Receiver command
ON - AUTOMATIC
Single pulse contact (K BUTT)
Pedestrian button (PED BUTT)
Radio Receiver command
DIP 7 ON - low speed in approaching ENABLED
OFF - low speed in approaching DISABLED
DIP 8 ON - electric lock command ENABLED
OFF - electric lock command DISABLED
DIP 9 ON - Hammering on complete close position to ease Manual Release
- Hammering before opening to ease electric lock unlocking
OFF - no impulse
DIP 10 ON - Extra thrust when reached closing position to make sure that the mechanical
bolt is fixed into the ground
OFF no impulse
DIP 11 ON - black out function ENABLED (See chart 2)
OFF - black out function DISABLED
DIP 12 ON - close command after the transit through the photocell ENABLED
OFF - close command after the transit through the photocell DISABLED
DIP 13 ON - safety strip self-test ENABLED
OFF - safety strip self-test DISABLED
DIP 14 to select type of motor (see CHART 1)
DIP 15 to select type of motor (see CHART 1)
DIP 16 to select type of motor (see CHART 1)
JP 17 OPEN JUMPER 1 motor (M1) - 1 leaf
CLOSE JUMPER 2 motors (M1 and M2) - 2 leaves
JP1 => Pay attention that the jumper is inserted!
JP2 => Pay attention that the jumper is inserted!
JP3 => Pay attention that the jumper is inserted!
CHART 1
TYPE OF MOTOR CODE DIP 14 DIP 15 DIP 16
1 KING 230/50 AA14001 OFF OFF OFF
KING L 230/50 AA14010
KING 220/60 AA14002
KING L 220/60 AA14011
KING ICE 230/50 AA14019
2 MAGIC IRR. 105° AA10960 ON OFF OFF
MAGIC IRR. 180° AA10965
MAGIC REV. 105° AA10920
MAGIC REV. 180° AA10930
DUKE 110° AA10975
DUKE 180° AA10985
PRATIC AA18001
G
B
J1 N -L1 Main power supply 230 Vac 50/60 Hz (120V/60Hz upon request)
J2 A+ TEST Safety strip self-test power supply +24 Vdc
A + Accessories power supply +24 Vdc
A - Accessories power supply -24 Vdc
PHOT. NC Photocells contact (NC)
EDGE NC Safety strip contact (NC)
K BUTT. Single pulse contact (NO)
PED. BUTT. Pedestrian opening contact (NO)
COM Common contact (common line for all the command and safety
inputs)
LOCK Electric lock connection (MAX 15W 12V)
AERIAL Radio Antenna
J3 COM Common contact (common line for all the command and safety
inputs)
BUZZER Buzzer contact (24 Vdc max 200 mA)
SIGNAL Gate open state output indicator (24 Vdc 3W max)
J4
Flashing light (max 40W )
U - MOTOR 2 MOTOR 2 COMMON CONNECTION
V-W - MOTOR 2 MOTOR 2 PHASE AND CAPACITOR CONNECTIONS
U - MOTOR 1 MOTOR 1 COMMON CONNECTION
V-W - MOTOR 1 MOTOR 1 PHASE AND CAPACITOR CONNECTIONS
J5
SW T2
DO NOT REMOVE ANY JUMPER! OTHERWISE THE OPERATOR
WILL NOT WORK!
J6 SW RADIO
(only CRX control board) DO NOT REMOVE ANY JUMPER!
OTHERWISE THE OPERATOR WILL NOT WORK!
J7 PROBE Terminal block to connect the heater sensor only for operator
(code AA14019).
J8 RADIO Built-in radio module (model CRX), or connector for radio receiver
RIB, 24 Vdc supply
JP17 To select 1 motor (M1) or 2 motors (M1 and M2)
S3 PROG Programming button
TR1 TORQUE Electronic torque regulator
TR2 LOW SPEED Electronic regulator for low speed on approach motor (See chart
1)

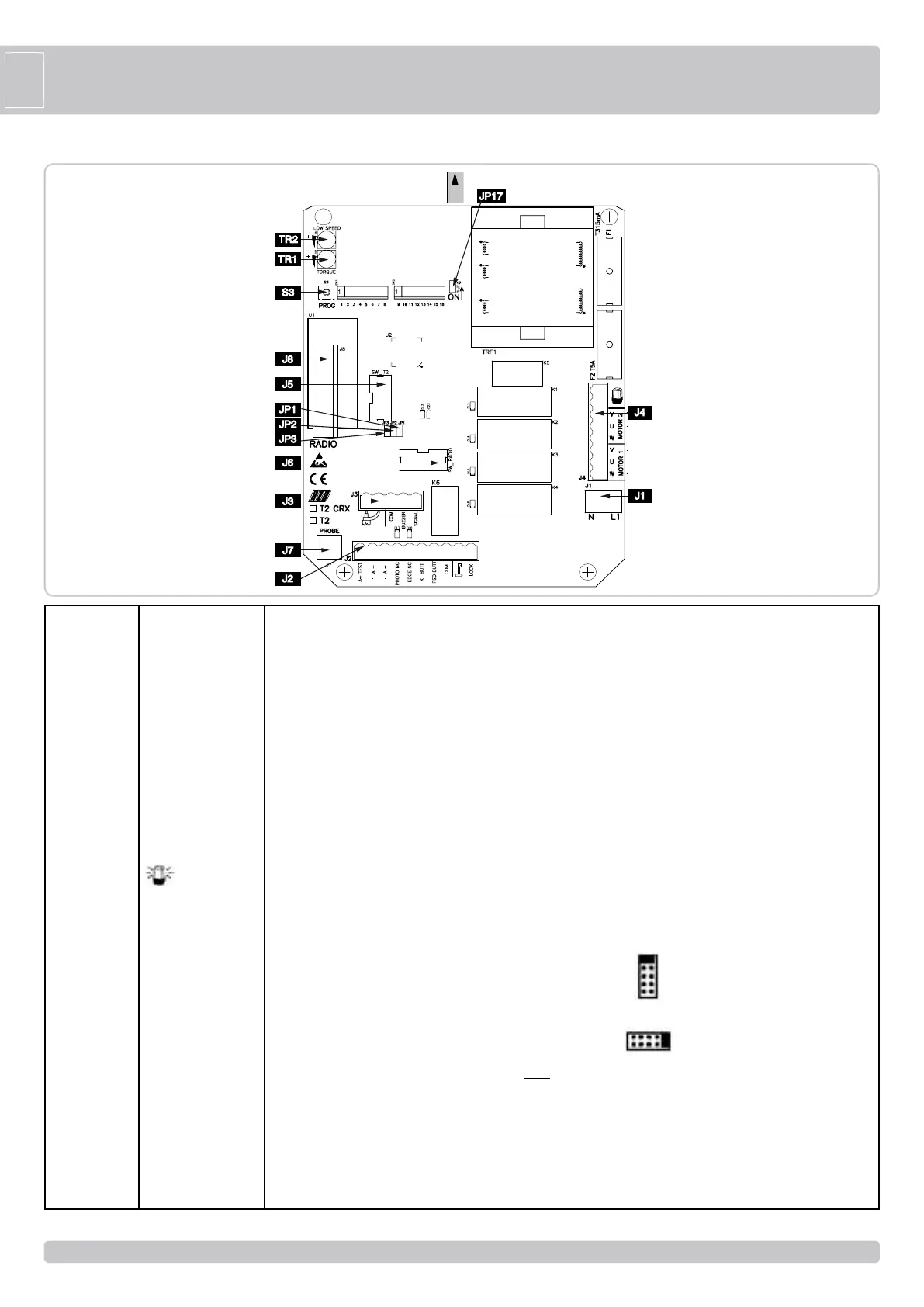

POINT A - CONTROL PANEL FEATURES
TR2
TR1
S3
J8
J5
J3
J7
J2
J4
J1
J6
JP1
JP2
JP3
JP17
