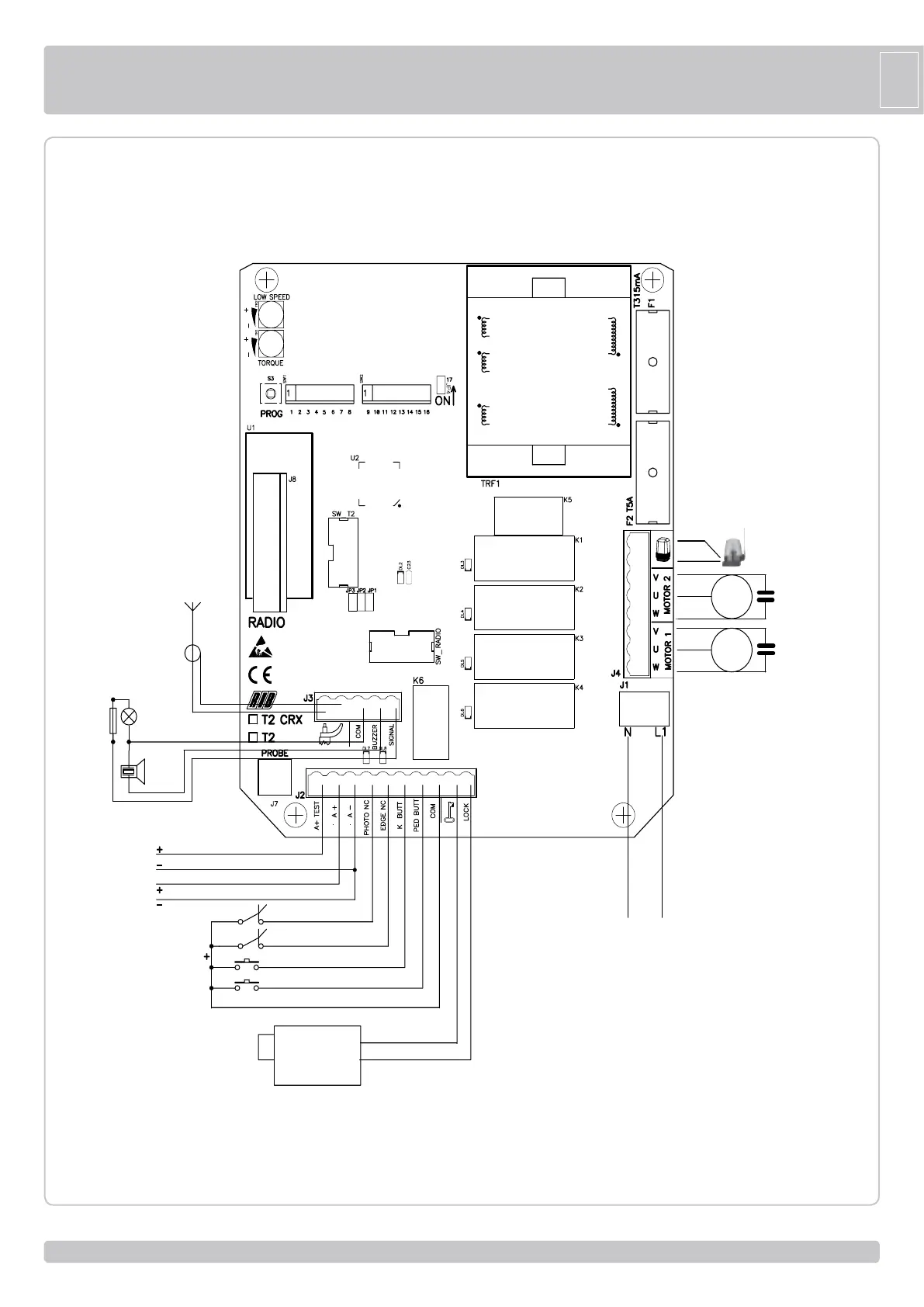

COLLEGAMENTI
ELETTRICI
I
T2
cod.
AC07086
T2
CRX
cod.
AC07085
+
+
-
-
+
R=2,2KΩ
BUZZER
+
-
MOTOR 1
MOTOR 2
ALIMENTAZIONE
230Vac
50 Hz
ANTENNA
CALZA
ANTENNA
24
Vdc per
AUTOTEST
PER
COSTA
24
Vdc per
ACCESSORI
FOTOCELLULE
SERRATURA
ELETTRICA
COSTE
PASSO PASSO
PEDONALE
COMUNE
LAMPEGGIATORE
CONDENSATORE
M2
CONDENSATORE
M1
4
6
Table of Contents
Safety Instructions for Installation
3
Collegamenti Elettrici
5
Branchements Électriques
13
Caractéristiques Techniques
18
Electric Connections
21
Conrol Panel Features
22
Settings
23
Motor Rotation Direction Check
23
Programming for 2 Motors
23
Programming for 1 Motor
24
Programming of Pedestrian Opening
24
Programming Radio Codes for Complete Opening
24
Programming Radio Codes for Pedestrian Opening
24
Clock Function
25
Pedestrian Command
25
Automatic Closing
25
Safety Strip
25
Technical Specifications
26
Troubleshooting
26
Buzzer
26
Gate Open Indicator
26
Optional Equipment
27
Lateral Support
27
Wi-Fi Devices
28
Conexiones Eléctricas
37
Características Técnicas
42
Esolución de Problemas
42
Soporte Lateral
43
Registro DI Manutenzione
45
