RIB B2 24V - Page 23

23
G
B

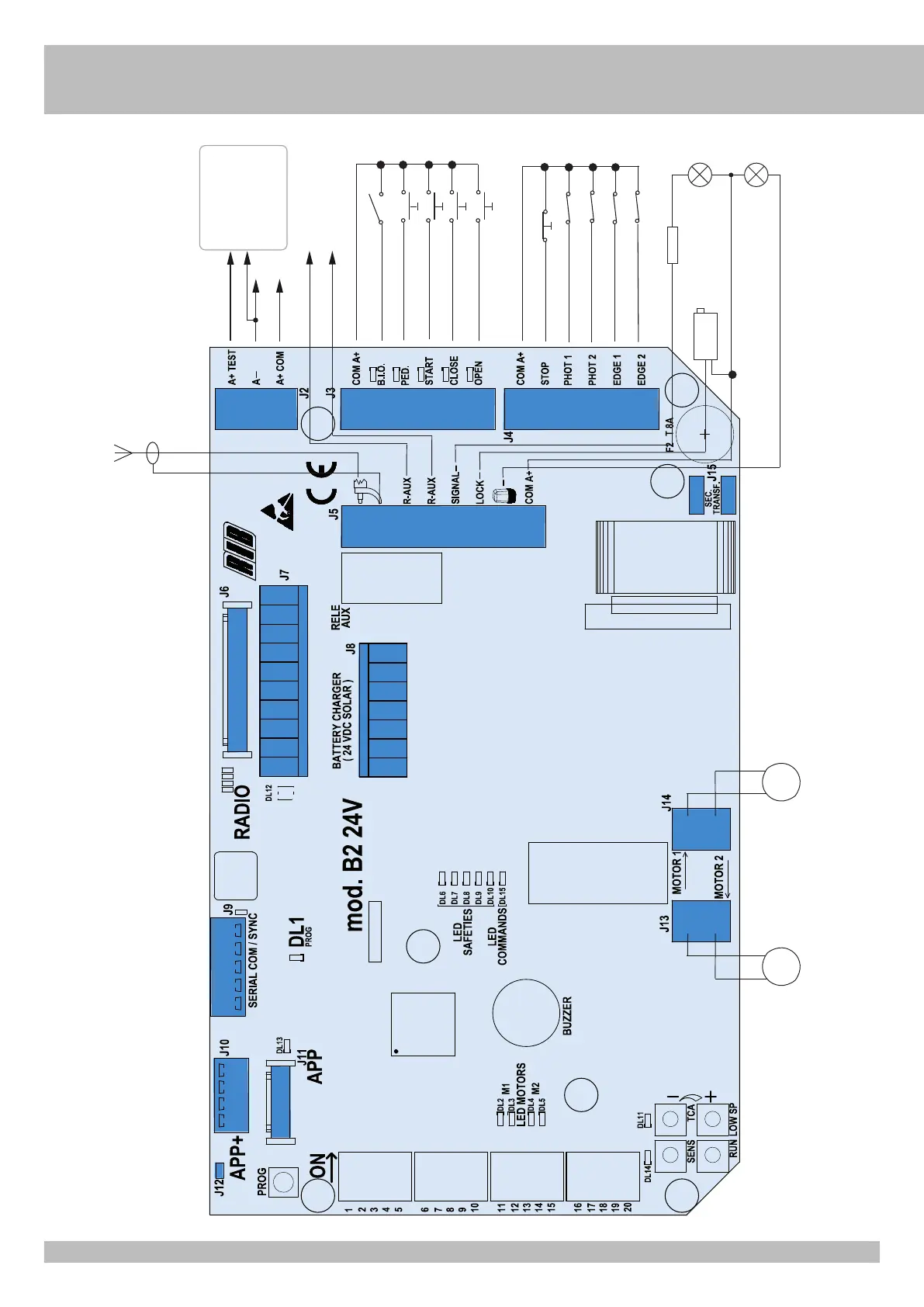

ELECTRIC CONNECTIONS
M2 M1
COMMON COMMON COMMON
COMMON
PHOTOCELL1
STOP
EDGE 2
PHOTOCELL 2
EDGE 1
PEDESTRIAN
OPEN
CLOSE
TIMER
SINGLE COMMAND
A+TEST / A- PHOTOCELLS AUTO-TEST OR ENERGY SAVING (LOW BATTERY) WITH BATTERY OPERATION
ANTENNA 433 MHz
ANTENNA BRAIDING
24Vdc 0,8A ±15%
24Vdc 0,8A ±15%
ELECTRIC LOCK
BLINKER 24Vdc 20W
LED 24Vdc 10W
R=2,2K 1/4W
700 W MAX
