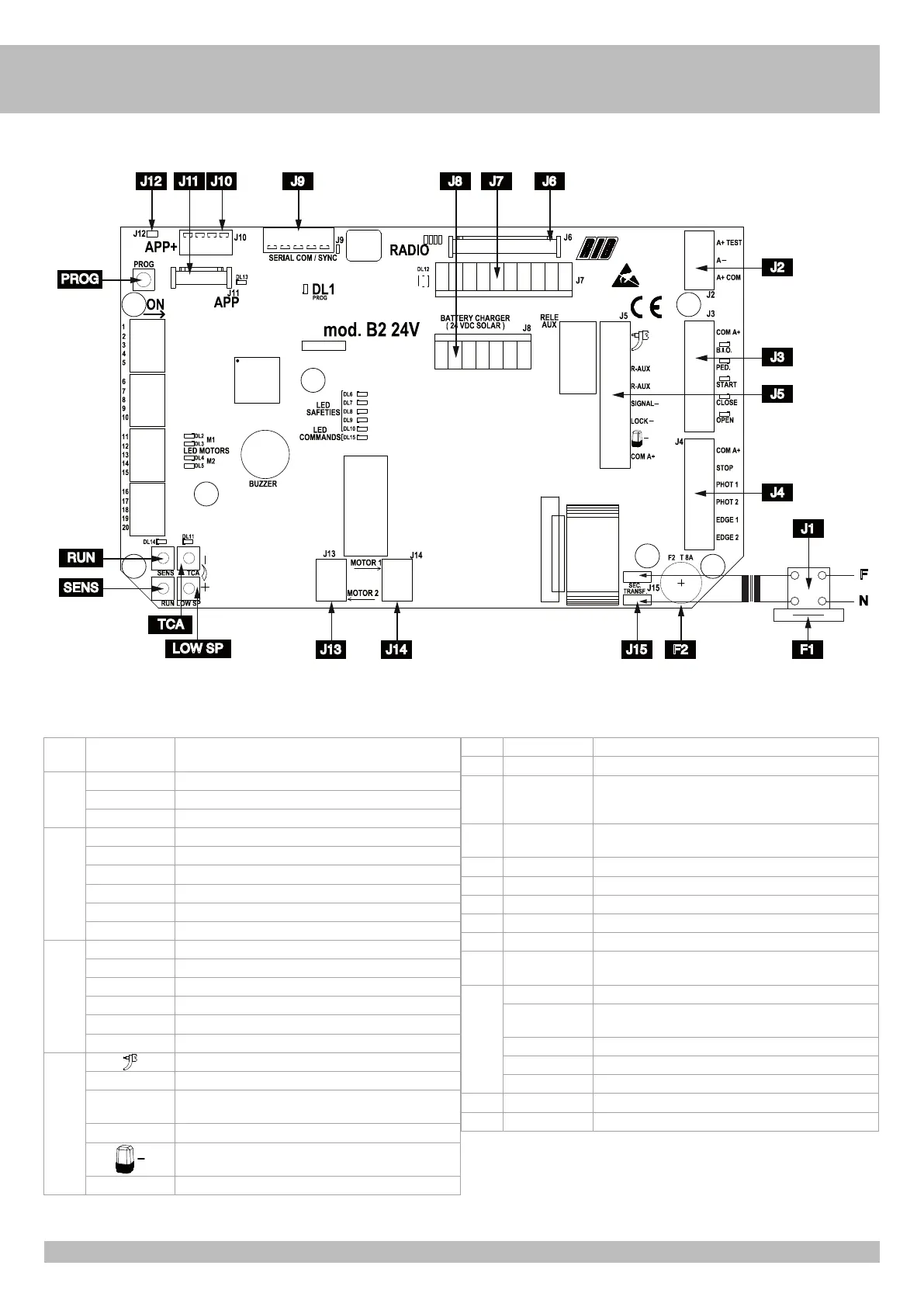

A - CONTROL PANEL FEATURES
G
B
J1 N F Power supply 230 Vac 50/60 Hz - external to the control
panel - (120 V 60 Hz upon request)
J2 A+TEST + 24Vdc photocells self-test power supply
A- - 24Vdc accessories power supply
A+ COM + 24Vdc accessories power supply
J3 COM A+ Common contacts / Positive 24 Vdc
B.I.O. Contact (NO) dedicated to a clock
PED. Pedestrian opening contact (NO)
START Single pulse contact (NO)
CLOSE Closing impulse contact (NO)
OPEN Opening impulse contact (NO)
J4 COM A+ Common contacts / Positive 24 Vdc
STOP STOP impulse contact (NC)
PHOTO 1 Photocells contact 1 (NC)
PHOTO 2 Photocells contact 2 (NC)
EDGE 1 Edge 1 contact (NC)
EDGE 2 Edge 2 contact (NC)
J5
Radio Antenna 433MHz
R-AUX Auxiliary relay contact (NO) Max 700 W
SIGNAL - Gate open state and battery state output indicator (24 Vdc 3
W max)
LOCK - Electric lock connection (MAX 15W 12V)
24Vdc blinker (code ACG7061) power supply. Pay attention
to the polarity.
COM A+ Common contacts / Positive 24 Vdc
J6 RADIO Connector for radio module ACG8069
J7 RADIO Connector for radio receiver RIB, 24 Vdc supply
J8 BATTERY
CHARGER (24 V
DC SOLAR)
Connector for charge card of 24 Vdc battery (code ACG4773)
J9 SERIAL COM /
SYNC
Connector for serial connection
J10 APP+ Connector for APP+ card
J11 APP Connector for APP Card
J12 RS485 termination of J10
J13 MOTOR 2 MOTOR 2 CONNECTION (without polarity)
J14 MOTOR 1 MOTOR 1 CONNECTION (without polarity)
J15 SECONDARY
TRANSFORMER
Connection to secondary coil of transformer 18 Vac
SENS Trimmer for adjusting sensitivity to impact against an obstacle
TCA Trimmer for automatic closing time adjustment (DISABLED
DEFAULT AND DL11 LED OFF)
RUN Trimmer for high speed adjustment operations
LOW SP Trimmer for low speed adjustment operations
PROG Programming button
F1 T 2 A Transformer protection fuse (external to the card B2 24V)
F2 T 8 A Motors protection fuse
F
N
J15 F1F2J14J13
J12 J11 J10 J9 J8 J7 J6
J1
J4
J3
J2
PROG
RUN
TCA
SENS
LOW SP
J5
