25
1
280/11,2”x300/12”
3000/118” - 4000/157”
1065/42”
1000/39”
TECHNICAL FEATURES
Ambidextrous irreversible gearmotor used to actuate booms up to 4 m / 157”
inches long. For non intensive applications (less then 400 cycles a day)
our operator RAPID S can be equipped with a boom long up to 5 m. For
intensive applications (more then 400 cycles) use only operator RAPID N
(code AA50080F).
The cabinet of the operator is treated with cataphoresis and thermal spray
coating. The barrier boom can be supplied as a single piece or, in the case
high objects may hinder its travel, you can require it in the articulated version,
specifying the height of this obstacle from the ground.
The barrier boom with RIB profile is constructed for being fitted with a pneumatic
safety strip or with a photocell strip.
N.B. You must make installation features comply with laws and standards in
force.
ASSEMBLING RAPID S
After you have cemented in the base plate where you want it, mount RAPID S
using the nuts provided and a no. 19 hexagonal wrench.

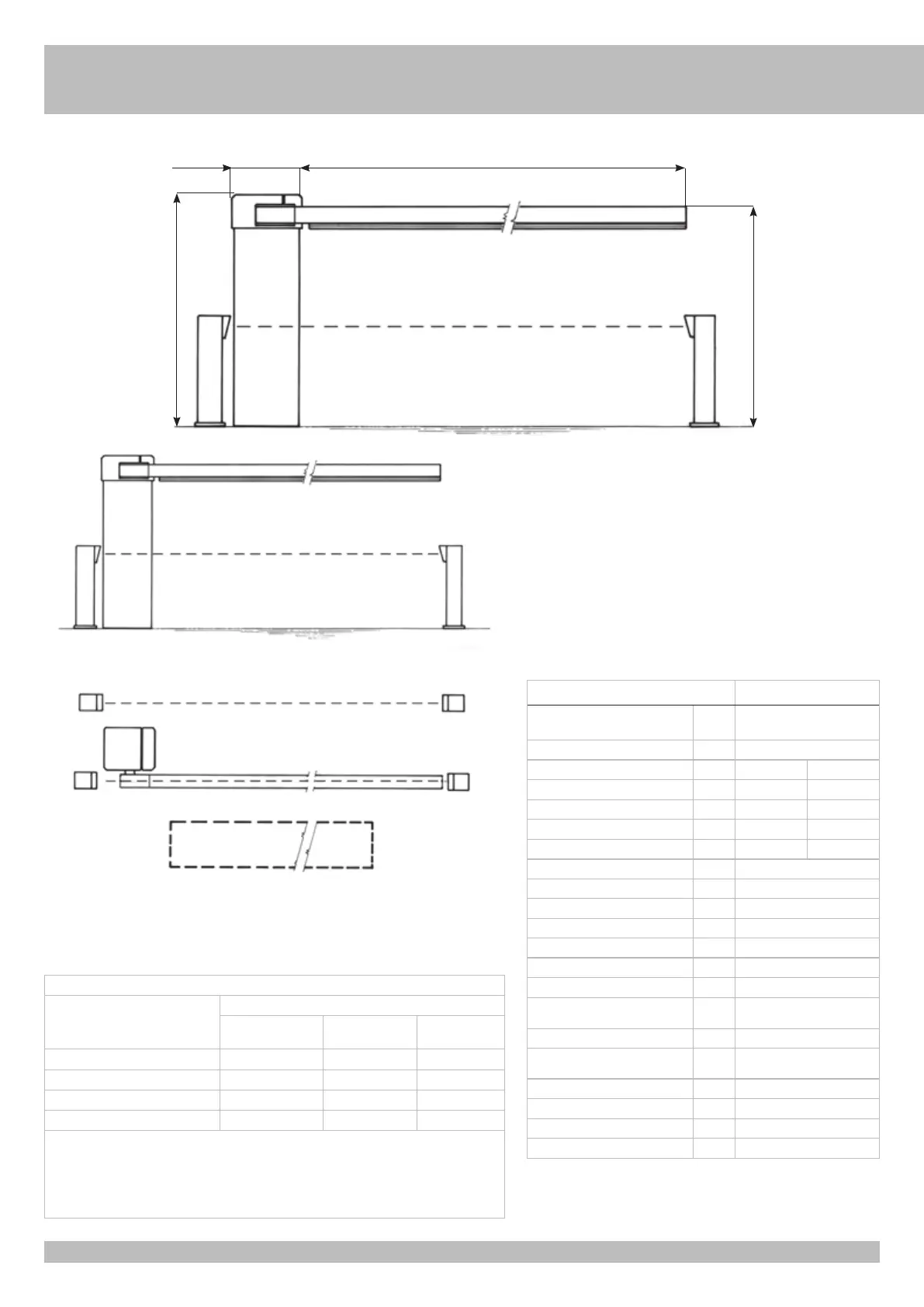

Measurements
in mm/inch
1 - RAPID S barrier
2 - Photoelectric cells
3 - Galvanized column for P.E. cells
4 - Strip with Photo electric cells
5 - Magnetic loop
- Key selector
- Tuned aerial
2
❺
❶
❹
❷
❷
❷
❷
❷
❷
❸
❸ ❸
❸
❸
❸
TECHNICAL DATA
RAPID S
Max. boom lenght
m/in
3-4/118”-157” m/in service intensive
5/197” m/in service not intensive
Opening time
s
3
EEC Power supply 230V~ 50Hz 230V~ 60Hz
Motor capacity
W
240 285
Power absorbed
A
1 1,3
Capacitor
m
F
10 10
Max. torque
Nm/lbsm
80/176 73/160,5
EEC Power supply 120V~ 60Hz
Motor capacity
W
186
Power absorbed
A
2
Capacitor
m
F
25
Max. torque
Nm/lbsm
54/119
Normative cycles 230V
n°
∞ - 3s/2s
Normative cycles 120V
n°
∞ - 3s/2s
Daily operations suggested
n°
1200 for boom 3-4 m
400 for boom 5 m
Service 100%
Guaranteed consecutive cycles
n°
1200 for boom 3-4 m
400 for boom 5 m
Lubrification SHELL OMALA S2 G100
Weight of electroreducer
kg
62
Working Temperature
°C
-10 ÷ +55
Protection IP
IP
54
Parts to install meeting the EN 12453 standard
COMMAND TYPE
USE OF THE SHUTTER
Skilled persons
(out of a public area*)
Skilled persons
(public area)
Unrestricted use
with manned operation
A B -
with visible impulses (e.g. sensor)
C C C e D
with not visible impulses (e.g. transmitter)
C C e D C e D
automatic
C e D C e D C e D
* a typical example are those shutters which do not have access to any public way.
A: Command button with manned operation (that is, operating as long as activated), like code ACG2013.
B: Key selector with manned operation, like code ACG1010.
C: Safety edges, like code ACG3010 and/or other safety devices to keep thrust force within the limits of
EN12453 regulation - Appendix A.
D: Photocells, like code ACG8026.
G
B
SYSTEM LAY-OUT
