AERIAL

24Vdc

for the

ELECTRICAL SUPPLY

OF ACCESSORIES

PHOTOCELLS

K BUTTON

COM

ELECTRICAL SUPPLY

230V 50-60Hz

ANTENNA – Use an RG58 co-axial cable

JUMPER

COM-EDGE

A* A Observe the polarity

of the photocells’ electrical supply

MOTOR 2

MOTOR THAT CLOSES FIRST

CONNECT CAPACITOR BETWEEN V2 and W2

MOTOR 1

MOTOR THAT OPENS FIRST

CONNECT CAPACITOR BETWEEN V1 and W1

A* A S C NC A* AS

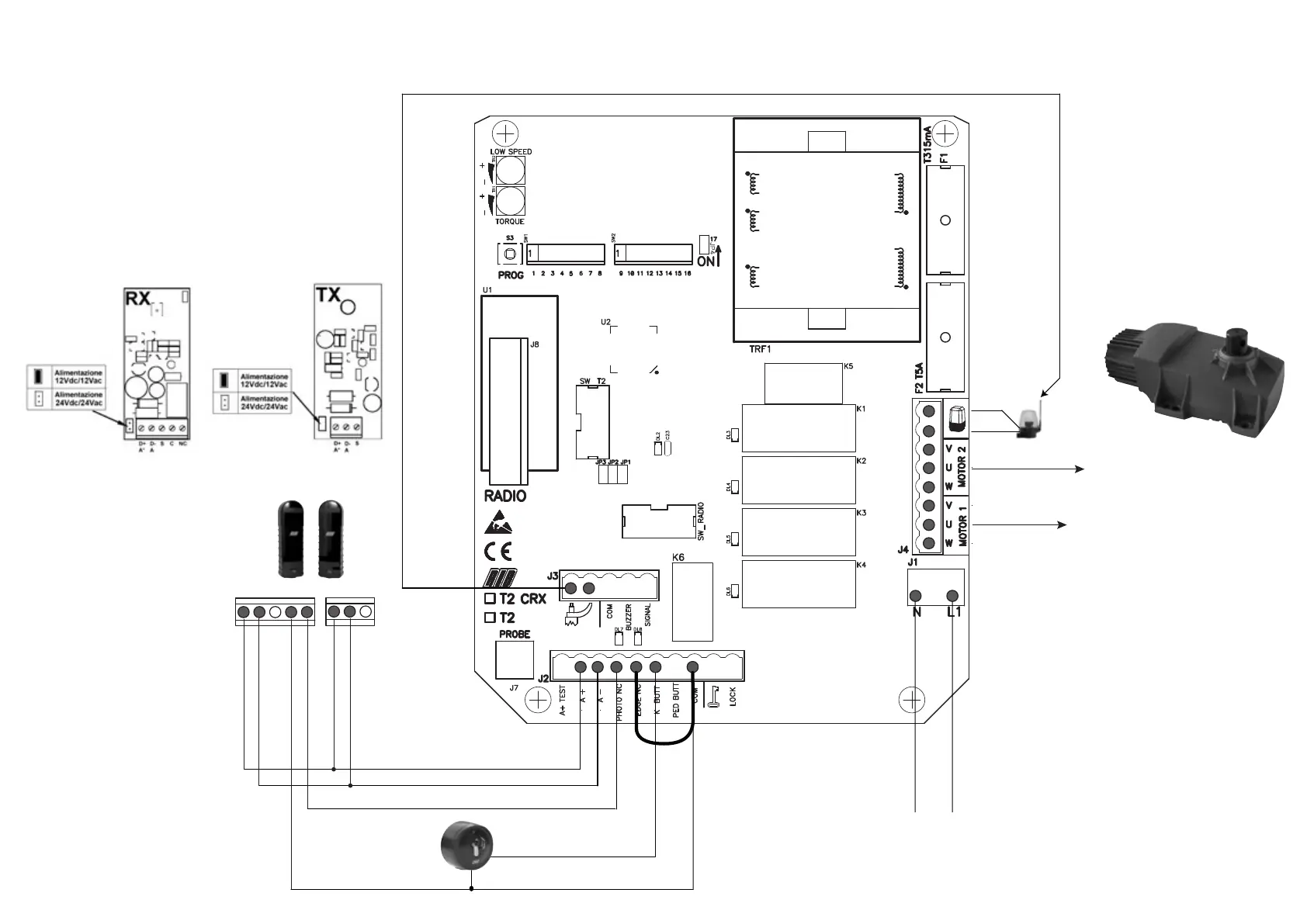

SIMPLIFIED INSTRUCTIONS FOR DUKE WITH T2-CRX
