Ribao CS-95A - Other Maintenance

10. Other Maintenance

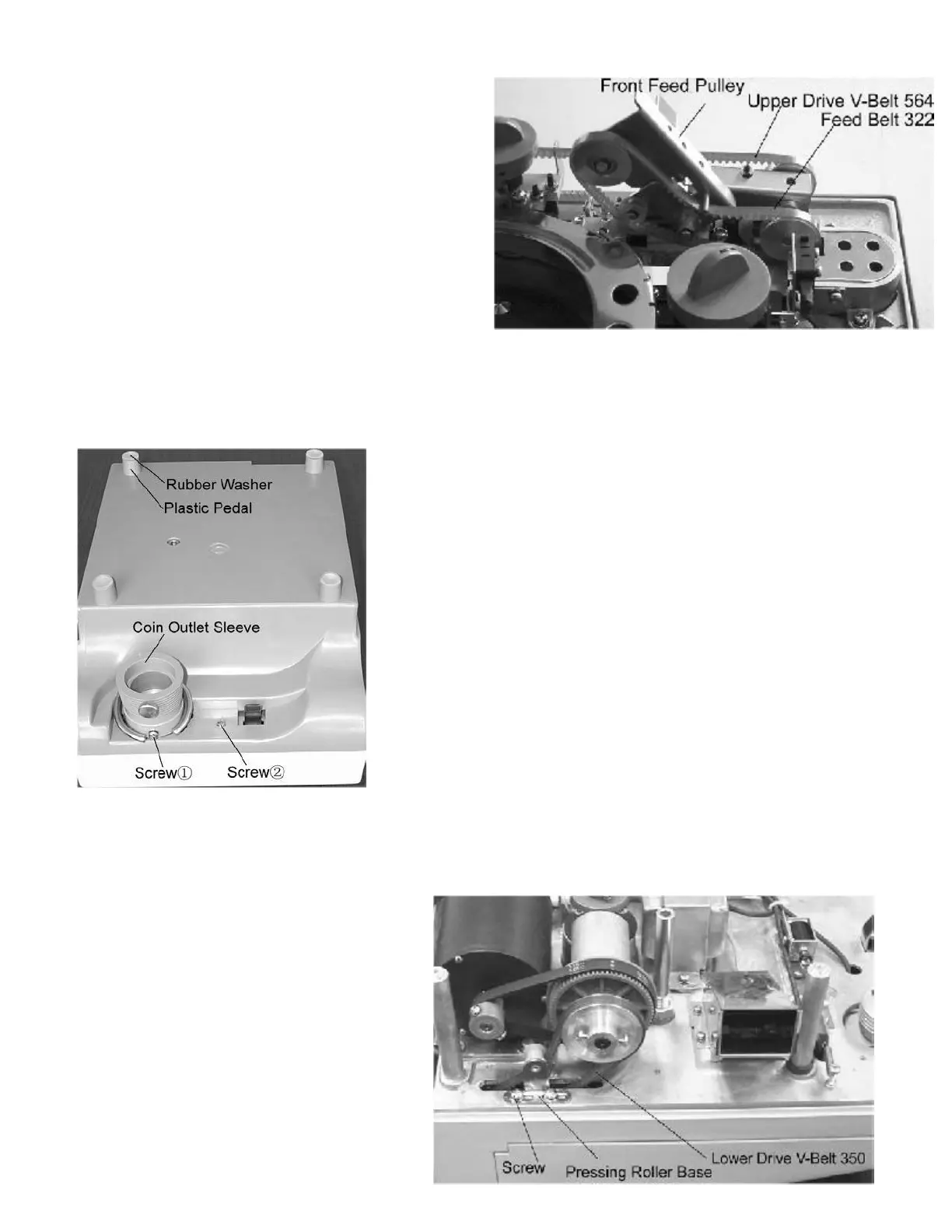

Diagram 2
Diagram 1
Diagram 3
STEP 1.
As right diagram 1, open the
upper cover, pull the Front Feed
Pulley Arm upward, then remove
the V-Belt 322 and V-belt 564 from
the machine, then, put on a new
V-Belt on the Pulleys.
STEP 3.
As right diagram, remove the
V-belt 350 and fix a new belt on
the pulley, the tension can be
adjusted by adjusting the
position of the Pressure Roller
Arm.
STEP 2.
As the left diagram 2, remove the
Rubber Washer on the Plastic
Pedal, unscrew the four screws
in the Plastic Pedal.
Unscrew the screw 1 and screw 2,
rotate the Coin outlet Chute, then
you can screw off it from the
machine.
Pull the Bottom Cover upward,
remove the Bottom Cover from
the machine.
