Installation Parts
33

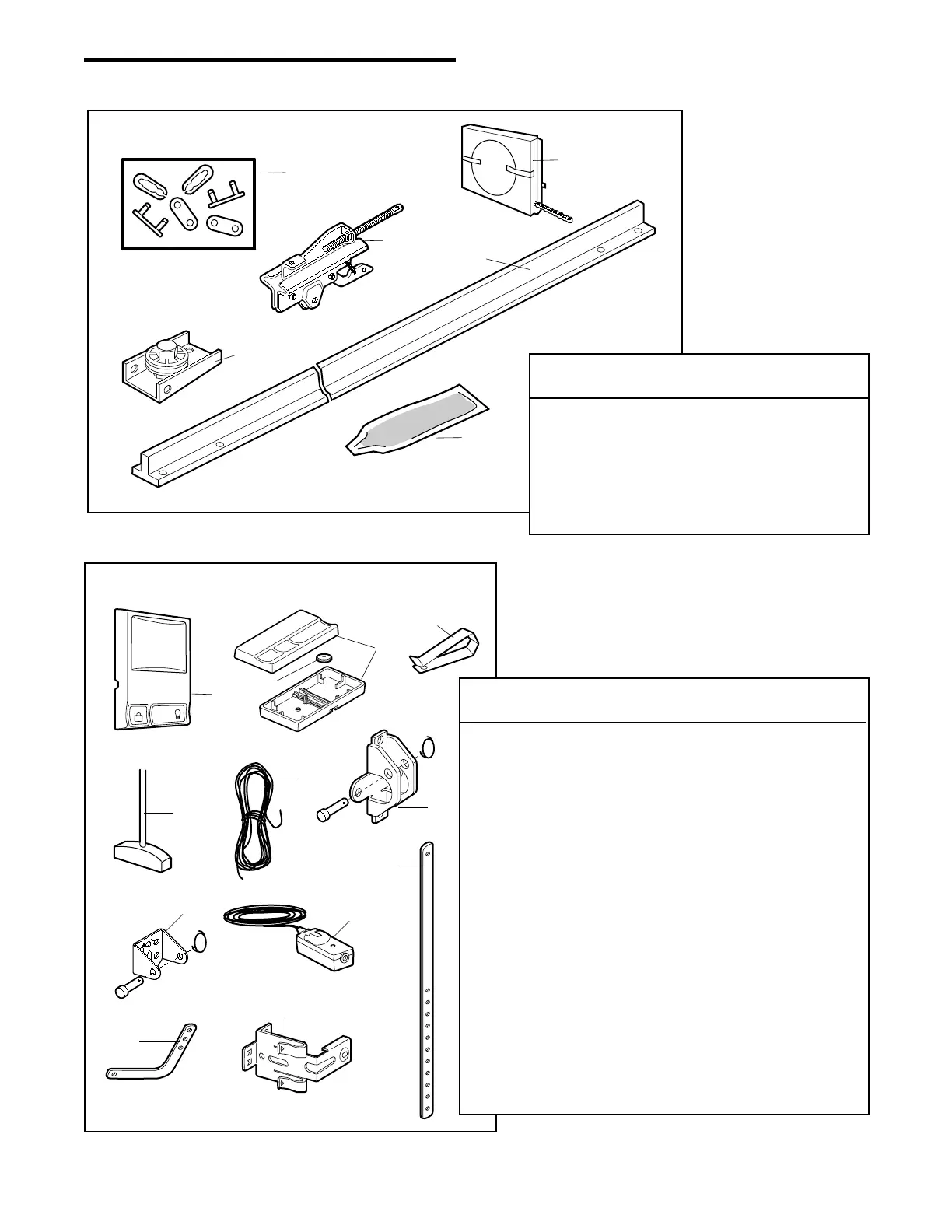

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 1707LMC One-piece T-rail
5 41D3484 Full chain assembly
6 83A11-2 Rail grease
KEY PART
NO. NO. DESCRIPTION
1 41A5273-19 Multi-Function door control panel
2 41A5056-21 3-Button remote control housing
(no circuit board)
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope & handle
assembly
6 217A238 2-Conductor bell wire, white & white/red
7 41A5047 Door bracket w clevis pin & fastener
8 41A4353 Header bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit (receiving and
sending eyes) with 3' 2-conductor
bell wire
10 178B34 Straight door arm section
11 178B35 Curved door arm section
12 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A2770-6 Installation hardware bag
(includes hardware listed on page 5).
114A2550 Owner's manual
