OVERVIEW
B064 Series/B140 Series/G126
6-4
SM
6.1.2

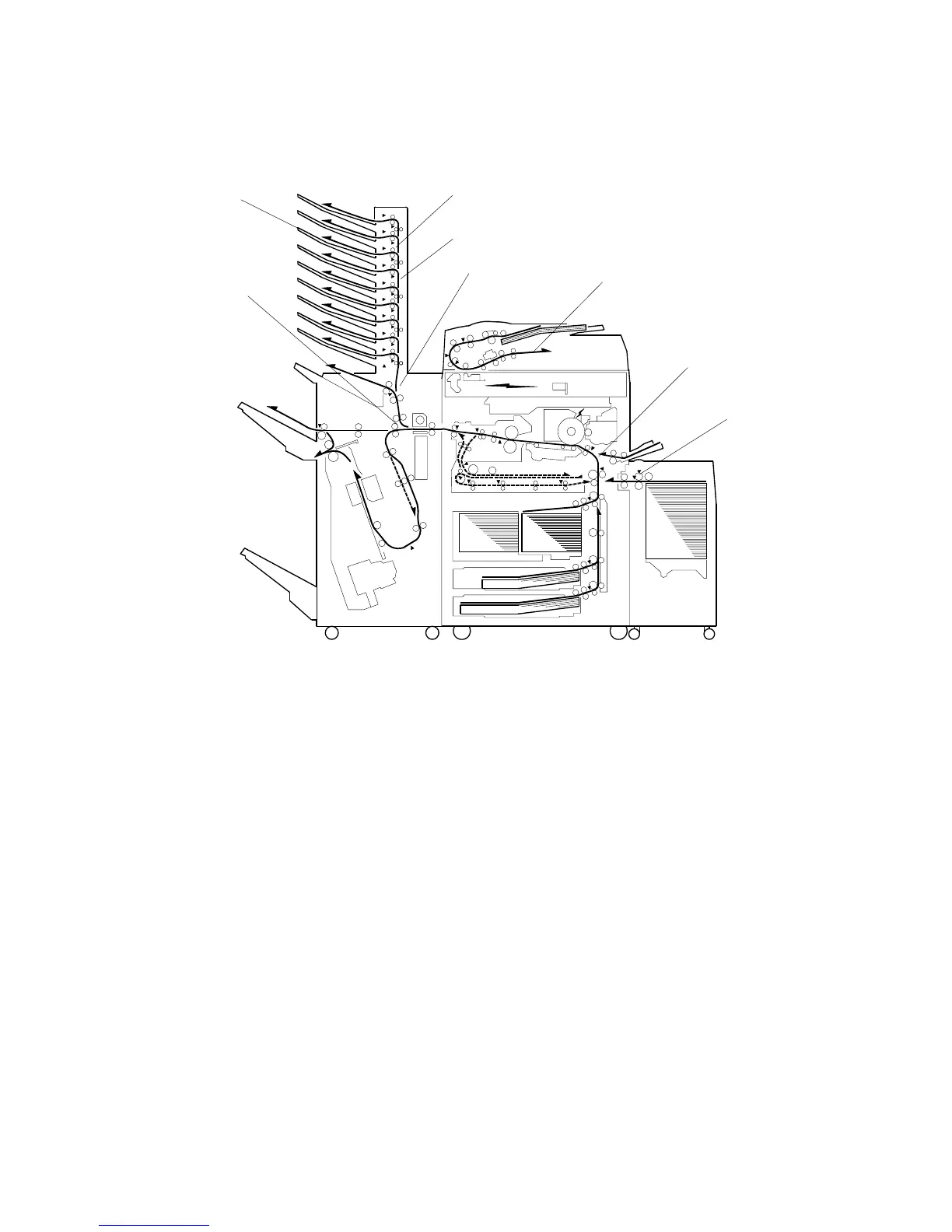

PAPER PATH (WITH 9-BIN MAILBOX)
1.
Original Paper Path
2.
Vertical Transport Path
3. LCT
Feed
4. Selected
Trays
5. Turn
Gates
6.
Mailbox Paper Path
7.
Junction Gate (paper goes either up to the
mailbox or out to the finisher’s proof tray)
8.
Junction Gates (two junction gates control
the paper path inside the finisher)
B140D902.
W
MF
1
2
3
4
5
6
7
8
601
603
