34
• 如果重新输入的号码不匹配，屏幕会出现[TEL # does not match]。请返回到步骤 3。
7. 如果需要扫描更多原稿，请在 60 秒内按下[1]，在曝光玻璃上放置下一份原稿，然后按
[OK]键。重复该步骤直到扫描完所有原稿。
如果没有在 60 秒内按下[1]，则机器将开始对目的地进行拨号。
8. 当扫描完所有原稿时，按[2]开始发送传真。
注
• 仅当使用数字键输入传真号码时需要进行确认。当使用单触快速拨号、快速拨号、重拨功
能或从计算机发送传真来指定目的地时，则不需要确认号码。
• 有关其他传真功能的详细信息，请参见《用户指南》 的“使用传真功能”。

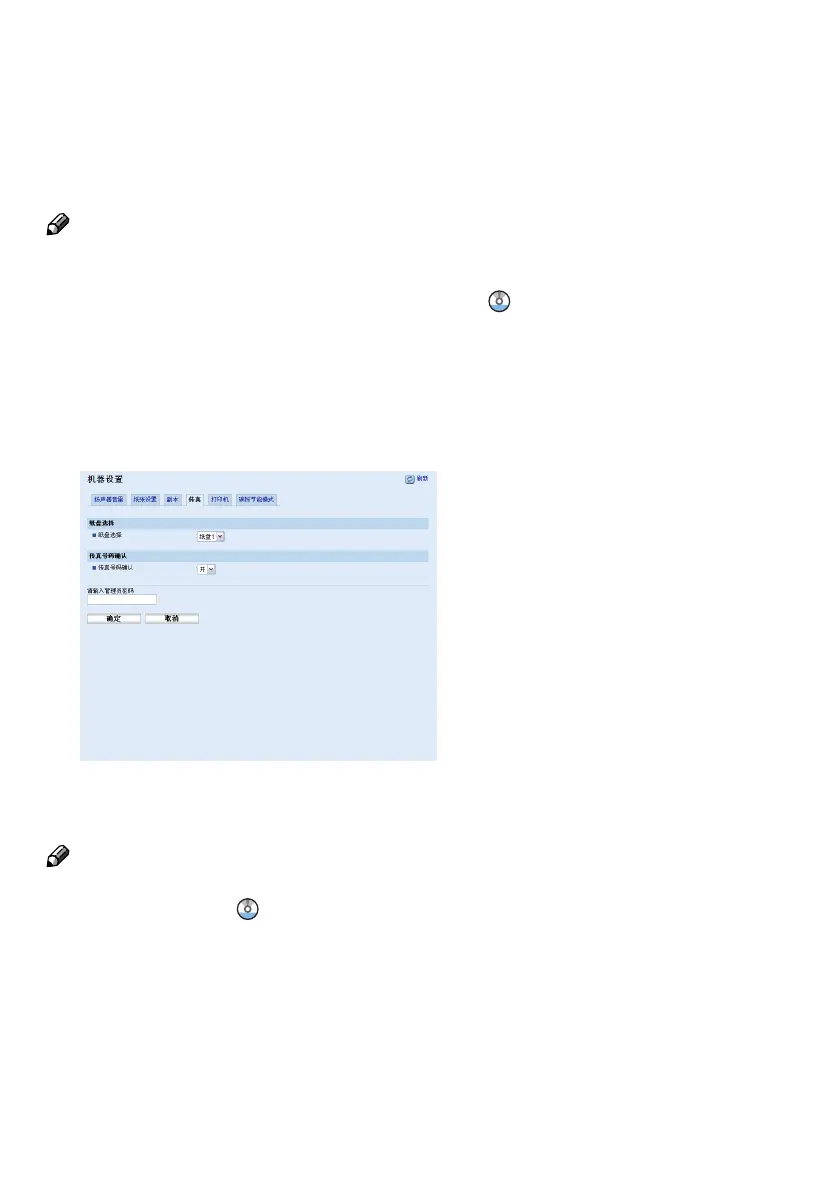

使用 Web Image Monitor 启用此功能
1. 启动 Web 浏览器。
2. 在 Web 浏览器的地址栏中输入“http://(机器的 IP 地址)/”来访问机器。
3. 单击[机器设置],然后单击[传真]标签。
4. 从[传真号码确认]列表中选择[开]。
5. 输入管理员密码，然后单击[确定].
注
• 仅当指定了[管理员密码]，才会出现[传真号码确认]设置。有关[管理员密码]的详细信息，
请参见《用户指南》
中的“配置密码”。

Other manuals for Ricoh Aficio SP C231SF

Preview: User Guide
User Guide416 pages
Preview: Service Manual
Service Manual292 pages
Preview: Specifications
Specifications4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh Aficio SP C231SF and is the answer not in the manual?

Ricoh Aficio SP C231SF Specifications

Aficio SP C231SF

Engine Specifications IconEngine Specifications
print resolution600 x 600 dpi (Speed mode), 1200 x 600 dpi equivalent (Standard Mode), 2400 x 600 dpi equivalent (Fine Mode)
output speed21 pages-per-minute in B&W and Full-Color
first print speed14 seconds or less
warm-up time48 seconds or less
Power IconPower
power requirements120V, 60Hz
maximum power consumption1, 300W
energy saver mode20W
System Memory IconSystem Memory
memory (ram)128 MB RAM standard/maximum
standard interfacesUSB 2.0, 10/100Base-TX Ethernet
optional interfaceIEEE 802.11b/g Wireless
Weight and Dimensions IconWeight and Dimensions
dimensions16.54" x 19.41" x 18.74" (420 x 493 x 476 mm)
weight66.14 lb. (30 kg or less)

Aficio SP C232SF

Engine Specifications IconEngine Specifications
print resolution600 x 600 dpi (Speed mode), 1200 x 600 dpi equivalent (Standard Mode), 2400 x 600 dpi equivalent (Fine Mode)
output speed21 pages-per-minute in B&W and Full-Color
first print speed14 seconds or less
warm-up time48 seconds or less
Power IconPower
power requirements120V, 60Hz
maximum power consumption1, 300W
energy saver mode25W
System Memory IconSystem Memory
memory (ram)256 MB RAM standard/512 MB RAM maximum (shared)
standard interfacesUSB 2.0, 10/100Base-TX Ethernet
optional interfaceIEEE 802.11b/g Wireless
Weight and Dimensions IconWeight and Dimensions
dimensions16.54" x 19.41" x 18.74" (420 x 493 x 476 mm)
weight66.14 lb. (30 kg or less)
