Ricoh bk5010 Installation Manual

1-7
Installation
04 October 2007
Exit arm catcher
1. Remove the adhesive backing from the Exit arm catcher.
2. InstalltheExitarmcatcheronthenishersothatitwillholdtheExitpaperarm
as high as possible. The nut on the Exit arm catcher should be centered over
theExitpaperarm,accordingtogure.

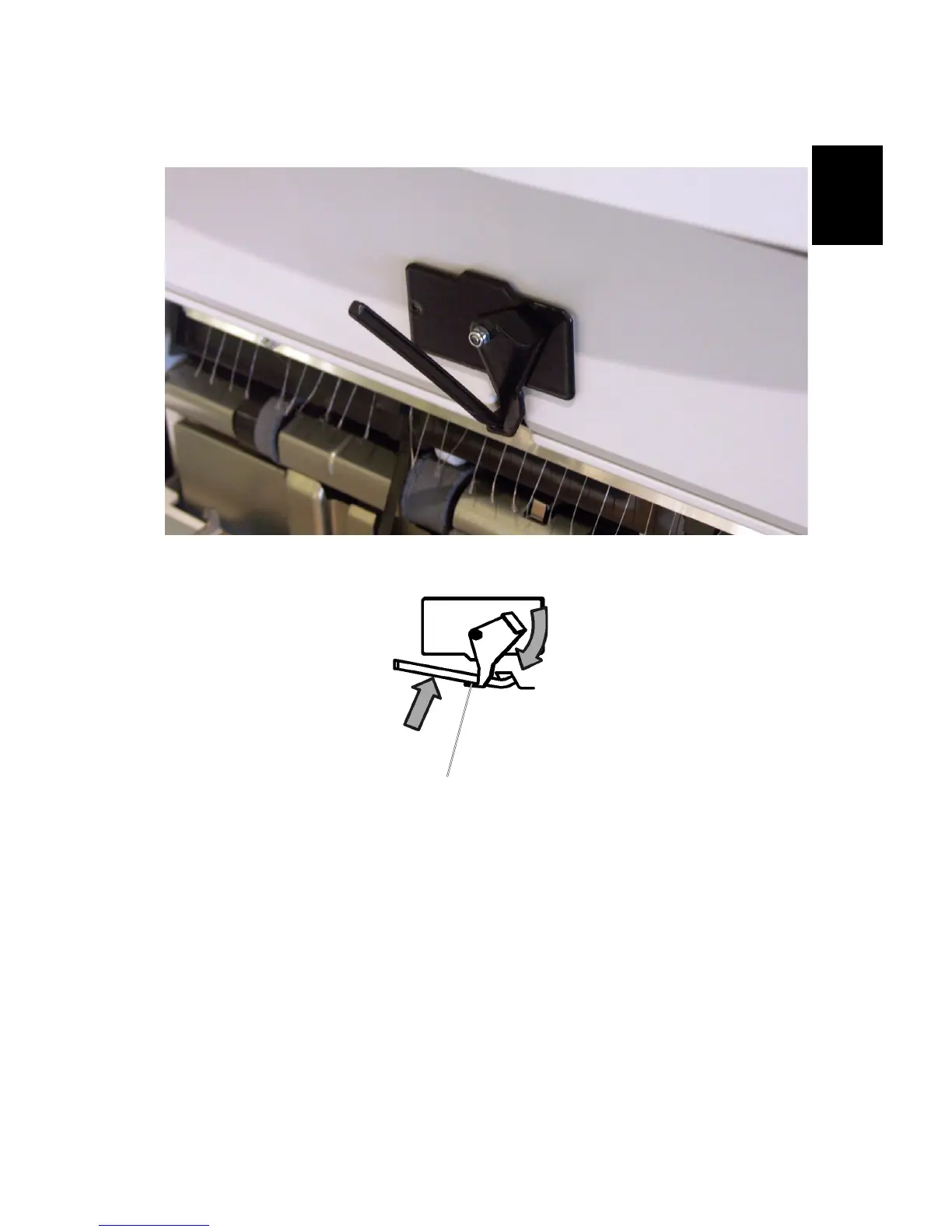

3. Lift up the Exit paper arm, and set it onto the Exit arm catcher [A].
[A]
BOOKLET MAKER INSTALLATION
