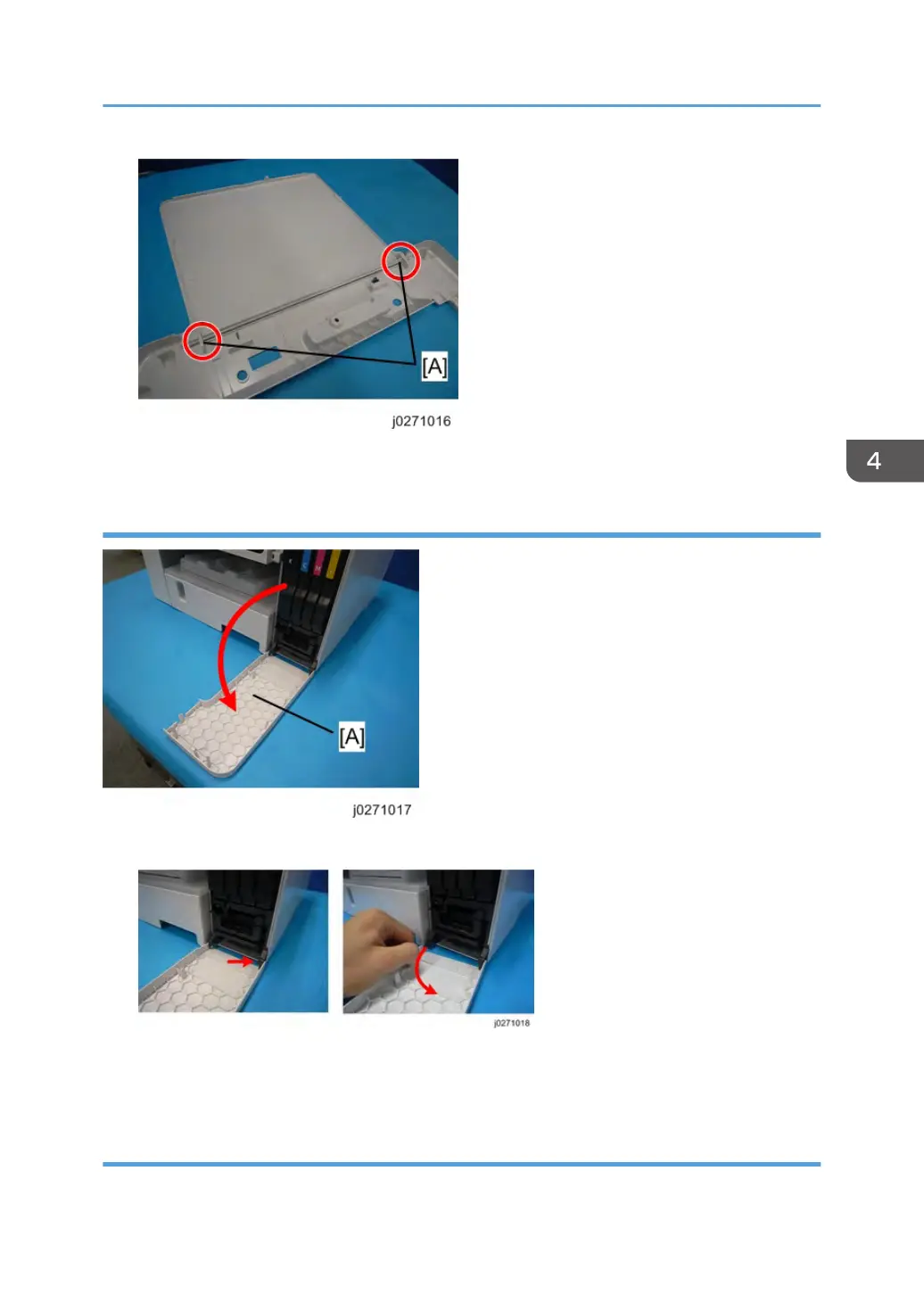

5. Disengage the top cover latch [A].
Right Front Cover
1. Open the right front cover [A].
2. Disengage the latch.
3.
The right front cover.
Right Cover
Preparation
Common Procedures
53
