CIS Structure - 2

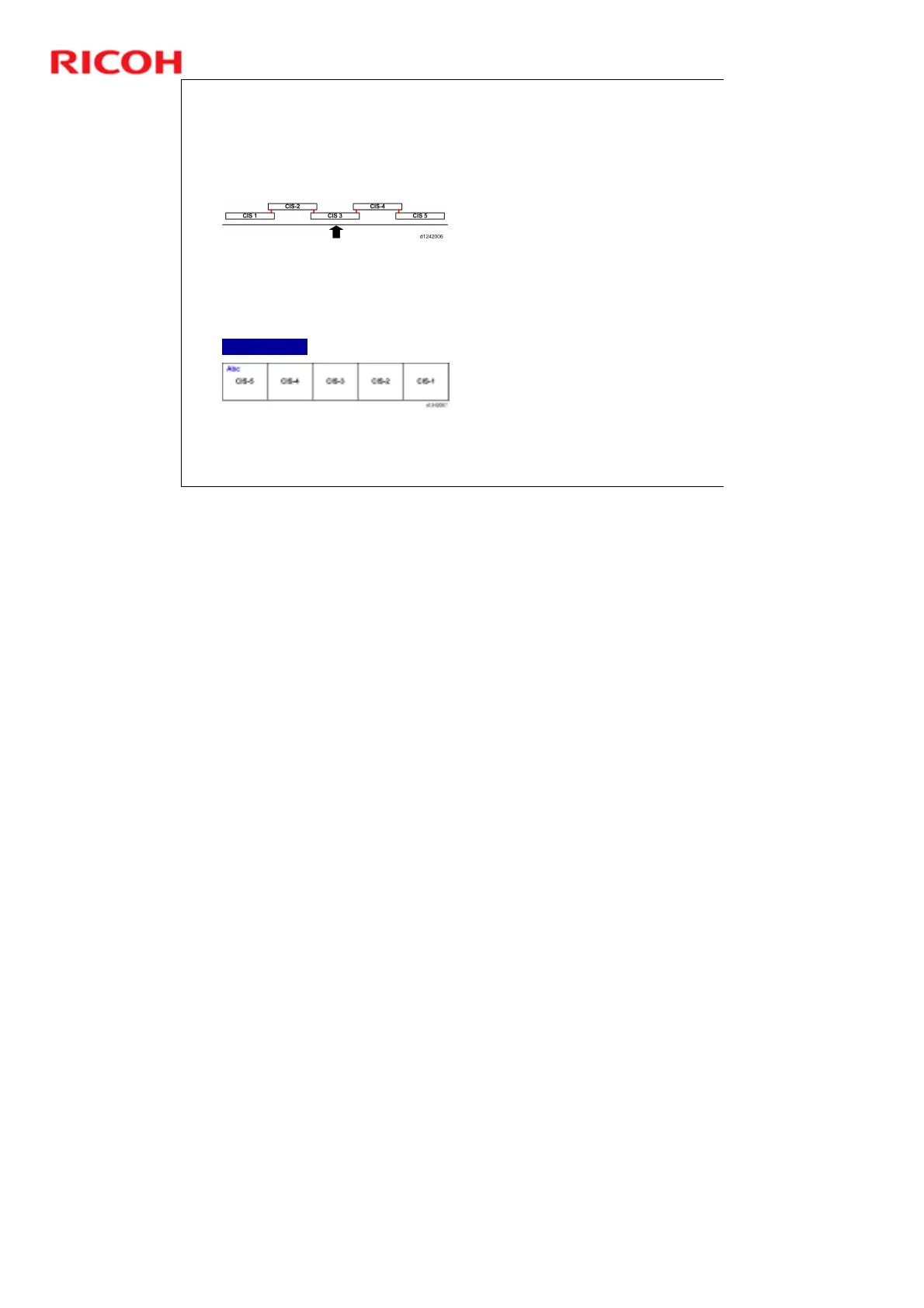

 The CIS unit is made of 5
contact image sensors
connected at 4 joints.
 From above, the CIS
sections are numbered
from left to right as CIS-1
to CIS-5.
 But, when you look at the
copy to identify the areas
scanned by each section,
the numbering is in the
opposite sequence, with
CIS-5 on the left to CIS-1
on the right.
Printed Image
