MO-C1 Training
Slide 18
Front Cover - 2
The front cover can be raised to remove paper jams and to load paper for bypass
feeding.
The left and right front cover switches (push switches) detect when the front cover is
raised and lowered.
The guide pins on either end of the front cover are set in tracks which guide the
cover into the correct closed position.
The front cover track switch (a push-switch) ensures that the carriage does not stop
suddenly, which could damage it (see the next slide for details).
The machine cannot operate until the front cover is down and all three of these
switches are closed.

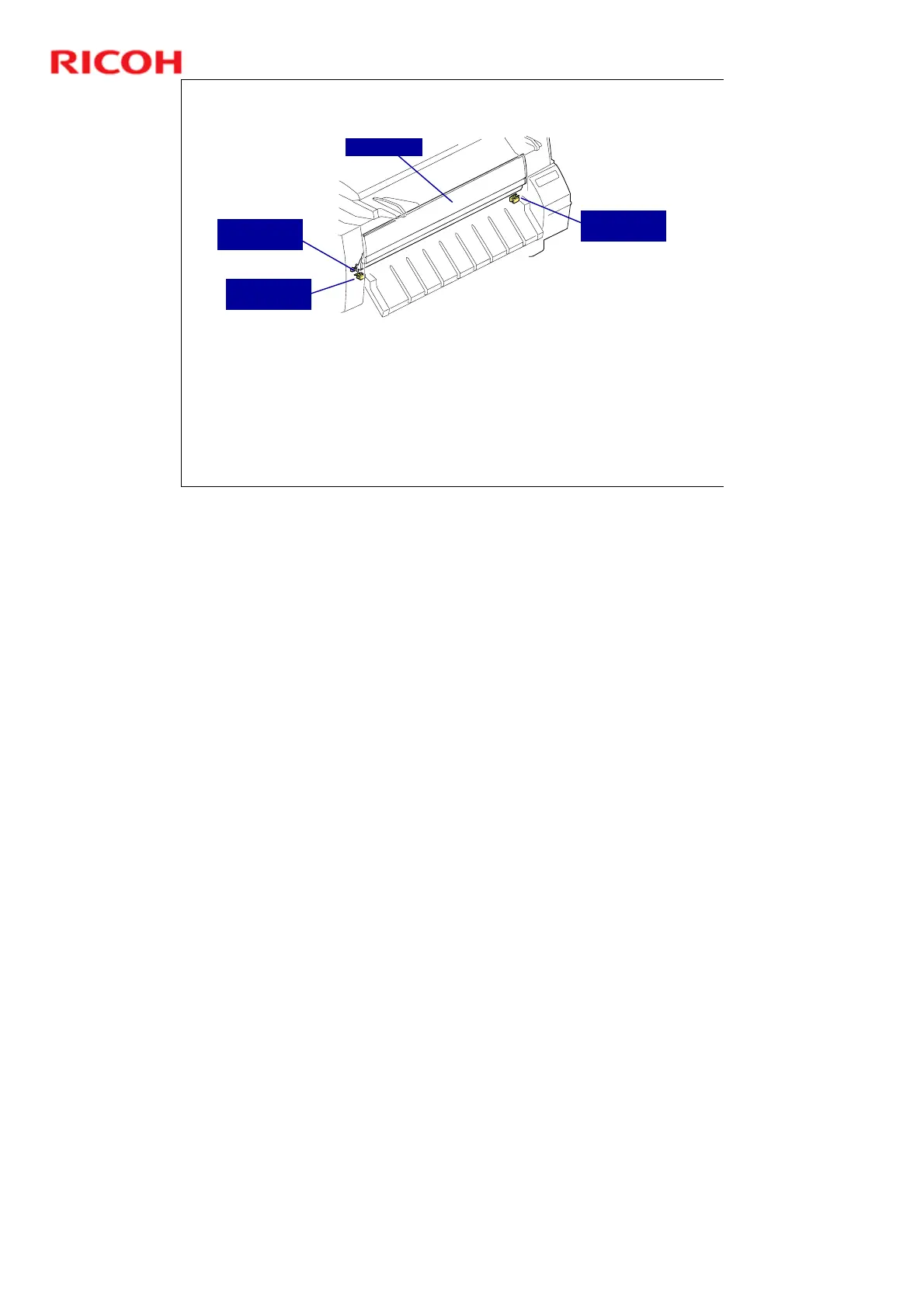

Front Cover
Left Front
Cover Switch
Right Front
Cover Switch
Front Cover
Track Switch
