Rear View

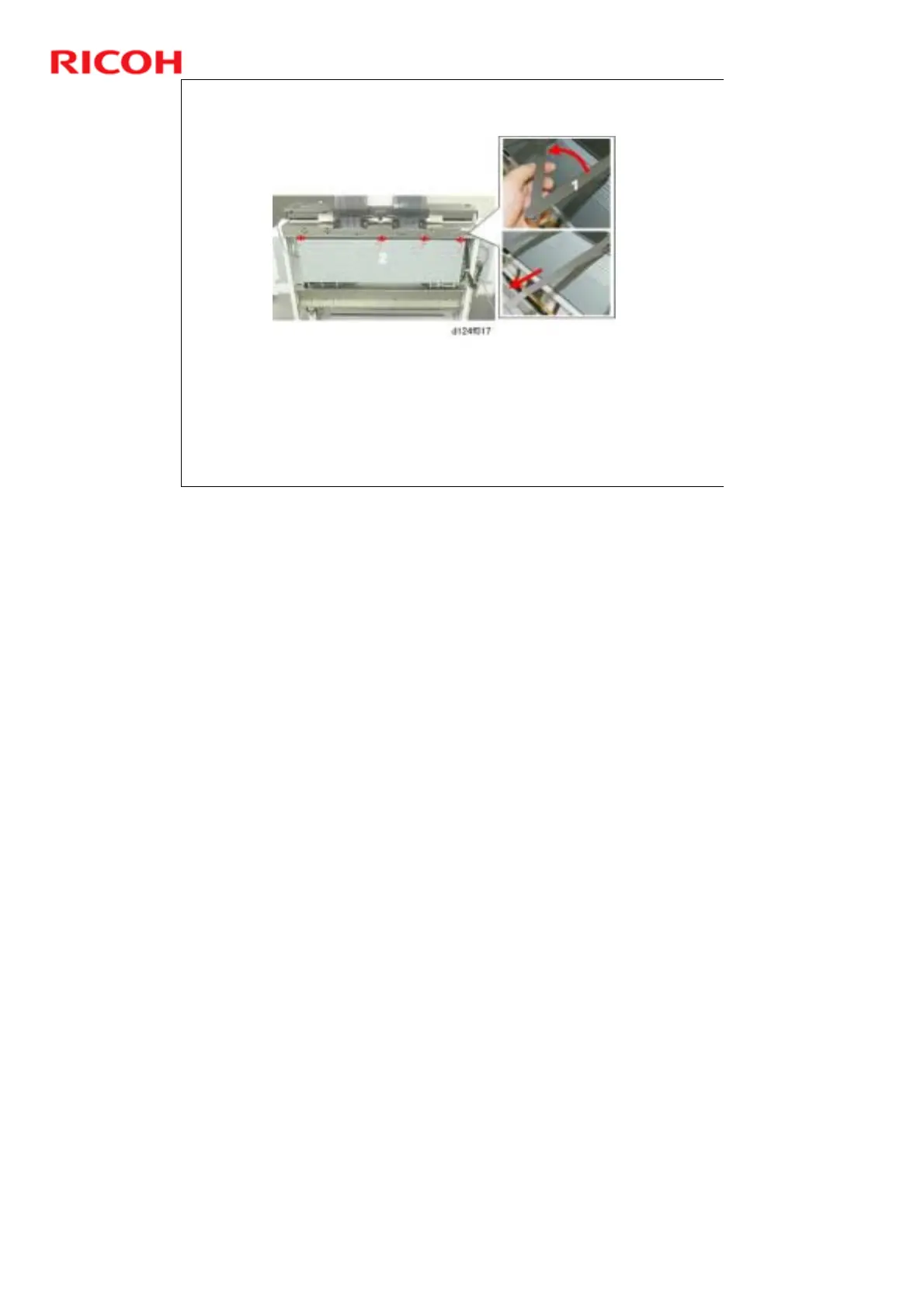

Four rear output guides [1] can be attached to the back of the
machine to hold originals that exit from the back of the machine.
The PCB box cover [2] covers the area where the controller board
and all other PCBs are mounted on the back of the machine.
Four braided ground harnesses are connected with screws to the
back of the scanner unit and the PCB box cover.
