8.2DRIVE MECHANISM
8.2.1Fusing Unit Drive

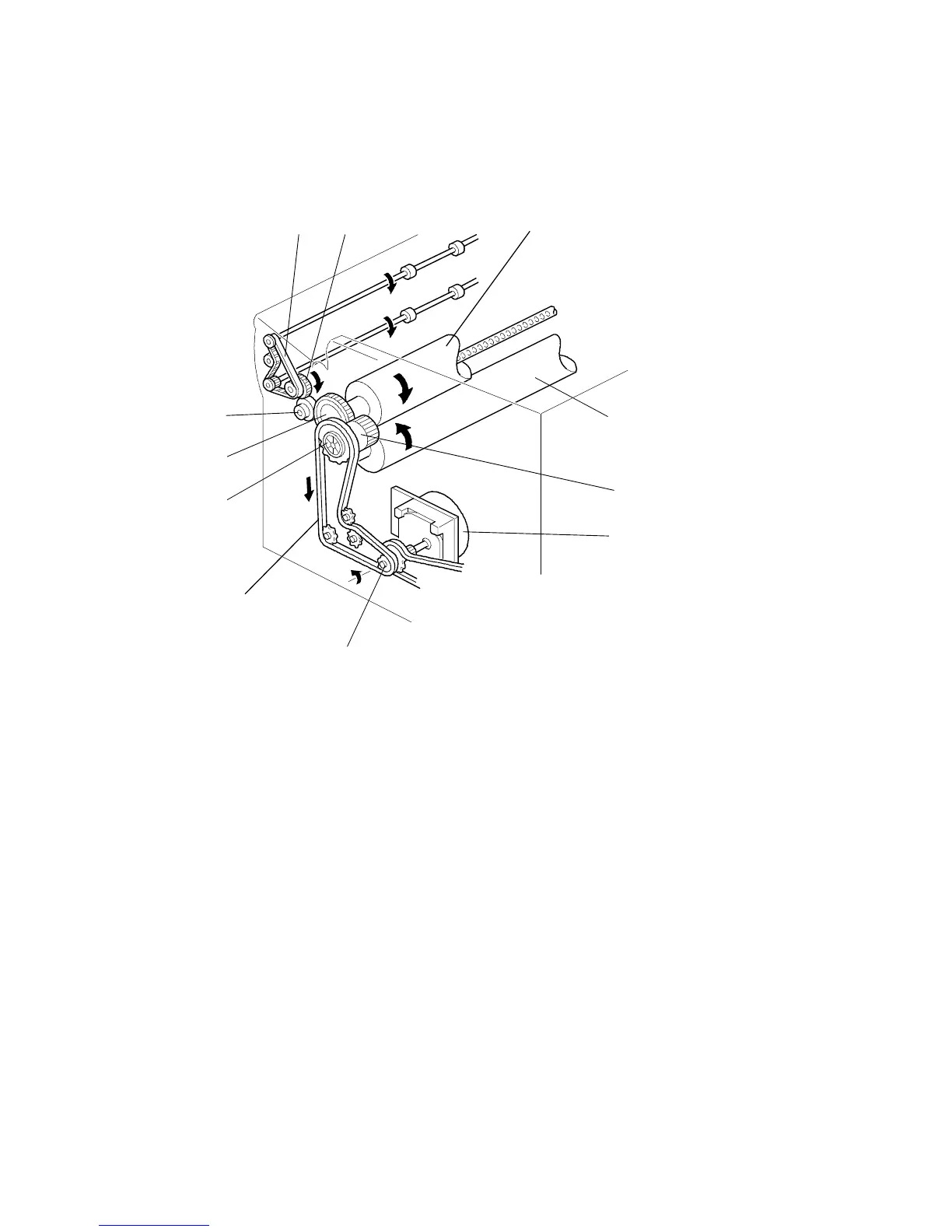

The hot roller [A] is turned by the hot roller drive gear [B] as shown. The pressure
roller [C] is friction driven by the hot roller. The fusing rollers turn constantly when
the main motor [D] is on, driven via the gear [E], through the fusing drive chain
[F], sprocket [G], and gear [H], to the hot roller drive gear.
The exit section is driven by the exit unit drive belt [I] through the hot roller drive
gear and gears [J].
[I]
[J] [A]
[C]
[H]
[D]
[E]
[F]
[G]
[B]
[J]
SM 2-28 A163
