6
The MP 6200SR Series

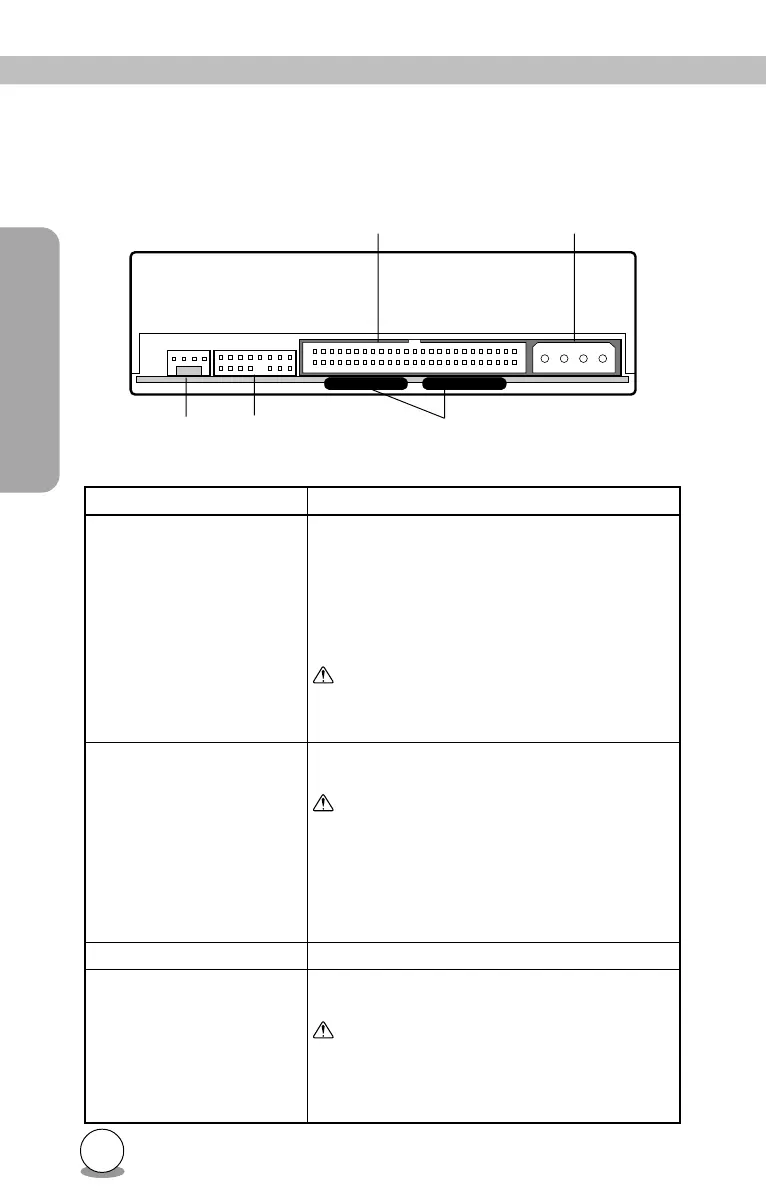

3.2 Rear panel
Name Function
SCSI ID jumper Used when selecting the SCSI ID number.
Don't use jumpers to change anything be-
sides the SCSI ID, but keep the drive as ini-
tially set (no jumper pins: ID 0). SCSI ID
changes become valid after power is turned
off, then on again.
Installing jumper pins besides the ones
for SCSI ID settings may be the cause of
damage or abnormal drive operation.
SCSI connector Use a 50 pin double-end flat SCSI cable to
connect to the SCSI interface.
Connecting or disconnecting connectors
while power is on may result in a short
circuit, causing damage to the equipment.
When connecting or disconnecting con-
nectors, make sure to turn off the power
beforehand.
Audio output connector Used to connect to the sound card.
Power connector Used to connect to the host computer's power
supply (DC 5V).
Be careful not to reverse the power con-
nector when attaching it. A reversed con-
nection may cause damage to the equip-
ment (not covered by the warranty).
SCSI connector Power connector
Audio output
connector
Terminators
SCSI ID jumper
