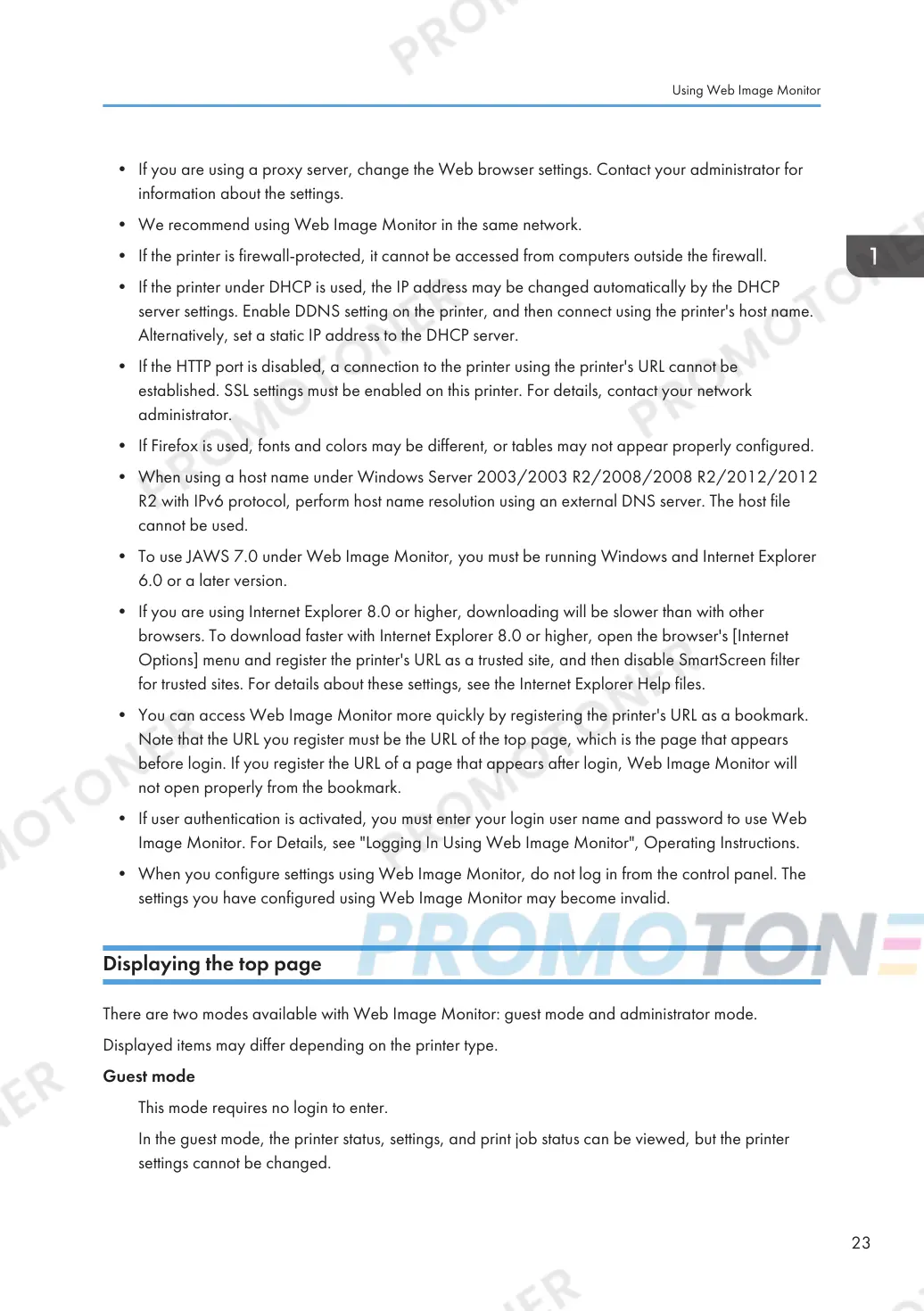

If you are using a proxy server, change the Web browser settings. Contact your administrator for
information about the settings.
We recommend using Web Image Monitor in the same network.
If the printer is firewall-protected, it cannot be accessed from computers outside the firewall.
If the printer under DHCP is used, the IP address may be changed automatically by the DHCP
server settings. Enable DDNS setting on the printer, and then connect using the printer's host name.
Alternatively, set a static IP address to the DHCP server.
If the HTTP port is disabled, a connection to the printer using the printer's URL cannot be
established. SSL settings must be enabled on this printer. For details, contact your network
administrator.
If Firefox is used, fonts and colors may be different, or tables may not appear properly configured.
When using a host name under Windows Server 2003/2003 R2/2008/2008 R2/2012/2012
R2 with IPv6 protocol, perform host name resolution using an external DNS server. The host file
cannot be used.
To use JAWS 7.0 under Web Image Monitor, you must be running Windows and Internet Explorer
6.0 or a later version.
If you are using Internet Explorer 8.0 or higher, downloading will be slower than with other
browsers. To download faster with Internet Explorer 8.0 or higher, open the browser's [Internet
Options] menu and register the printer's URL as a trusted site, and then disable SmartScreen filter
for trusted sites. For details about these settings, see the Internet Explorer Help files.
You can access Web Image Monitor more quickly by registering the printer's URL as a bookmark.
Note that the URL you register must be the URL of the top page, which is the page that appears
before login. If you register the URL of a page that appears after login, Web Image Monitor will
not open properly from the bookmark.
If user authentication is activated, you must enter your login user name and password to use Web
Image Monitor. For Details, see "Logging In Using Web Image Monitor", Operating Instructions.
When you configure settings using Web Image Monitor, do not log in from the control panel. The
settings you have configured using Web Image Monitor may become invalid.
Displaying the top page
There are two modes available with Web Image Monitor: guest mode and administrator mode.
Displayed items may differ depending on the printer type.
Guest mode
This mode requires no login to enter.
In the guest mode, the printer status, settings, and print job status can be viewed, but the printer
settings cannot be changed.
Using Web Image Monitor
23

Table of Contents

Other manuals for Ricoh SP C440dn

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh SP C440dn and is the answer not in the manual?

Ricoh SP C440dn Specifications

General IconGeneral
ColorYes
Print technologyLaser
Maximum resolution1200 x 1200 DPI
Duplex printing modeAuto
Time to first page (black, normal)10 s
Time to first page (color, normal)15 s
Print speed (black, normal quality, A4/US Letter)40 ppm
Printing colorsBlack, Cyan, Magenta, Yellow
Maximum duty cycle150000 pages per month
Number of print cartridges-
Page description languagesPCL 5Ce, PCL 5c, PCL 6, PCL 6C, PDF 1.3, PDF 1.4, PDF 1.5, PDF 1.6, PDF 1.7, PDF 1.7+, PostScript 3
CertificationEPEAT status: Gold rated
Product colorWhite
Current rating12 A
AC input voltage120 V
AC input frequency60 Hz
Power consumption (max)1650 W
Power consumption (standby)0.53 W
Power consumption (printing)765 W
Energy Star Typical Electricity Consumption (TEC)4.3 kWh/week
Sustainability certificatesENERGY STAR
Paper input typePaper tray
Total input capacity550 sheets
Total output capacity500 sheets
Maximum input capacity2300 sheets
Internal memory1000 MB
Processor modelRM7035
Processor frequency533 MHz
Compatible memory cardsSD
Mac operating systems supportedMac OS X 10.10 Yosemite
Server operating systems supportedWindows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 8, Windows 8 Pro, Windows 8.1, Windows 8.1 Pro
Maximum print size210 x 297 mm
Paper tray media typesCoated paper, Envelopes, Glossy paper, Labels, Lightweight paper, Plain paper, Pre-Printed, Recycled paper, Thicker paper, Thin paper, Transparencies
Non-ISO print media sizesExecutive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)A4, A5, A6
ISO B-series sizes (B0...B9)B5, B6
Duplex media weight (imperial)16 - 44 lbs
Maximum ISO A-series paper sizeA4
Paper tray media weight (imperial)14 - 59 lbs
Wi-FiNo
Security algorithmsWEP, WPA2, WPA2-PSK
Standard interfacesEthernet, USB 2.0
Optional connectivityParallel, Wireless LAN
USB 2.0 ports quantity1
Weight and Dimensions IconWeight and Dimensions
Depth658 mm
Width444 mm
Height490 mm
Weight57000 g
