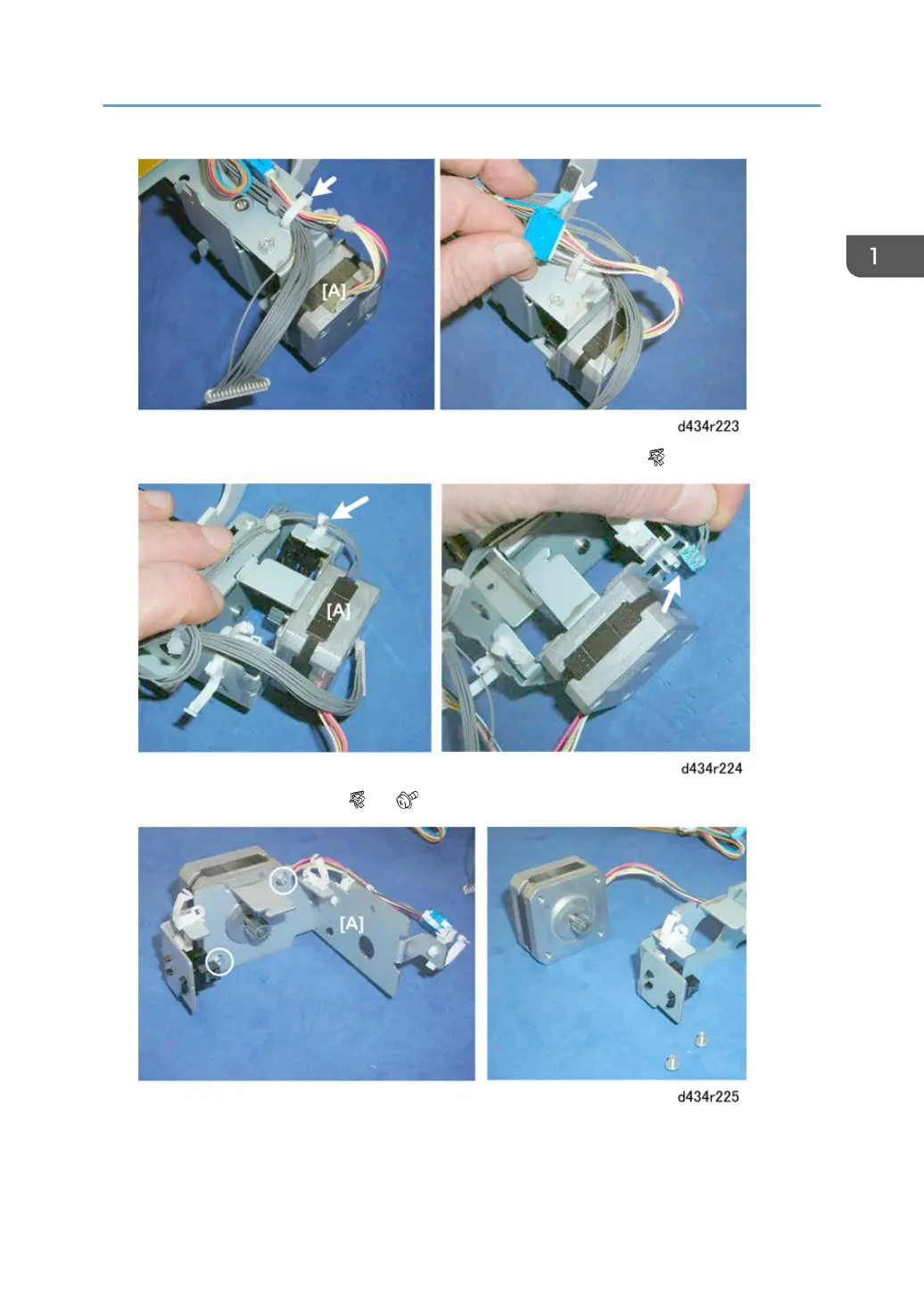

2. Disconnect the retraction HP sensor on the same bracket as the motor [A] ( x1)
3. Disconnect motor bracket [A] ( x1, x2)
Shift Tray
77
