Ricoh SR790 - 1.3.3 UPPER TRANSPORT MOTOR AND EXIT MOTOR; 1.3.4 LOWER TRANSPORT MOTOR

MOTORS 26 July 2002
B408-4

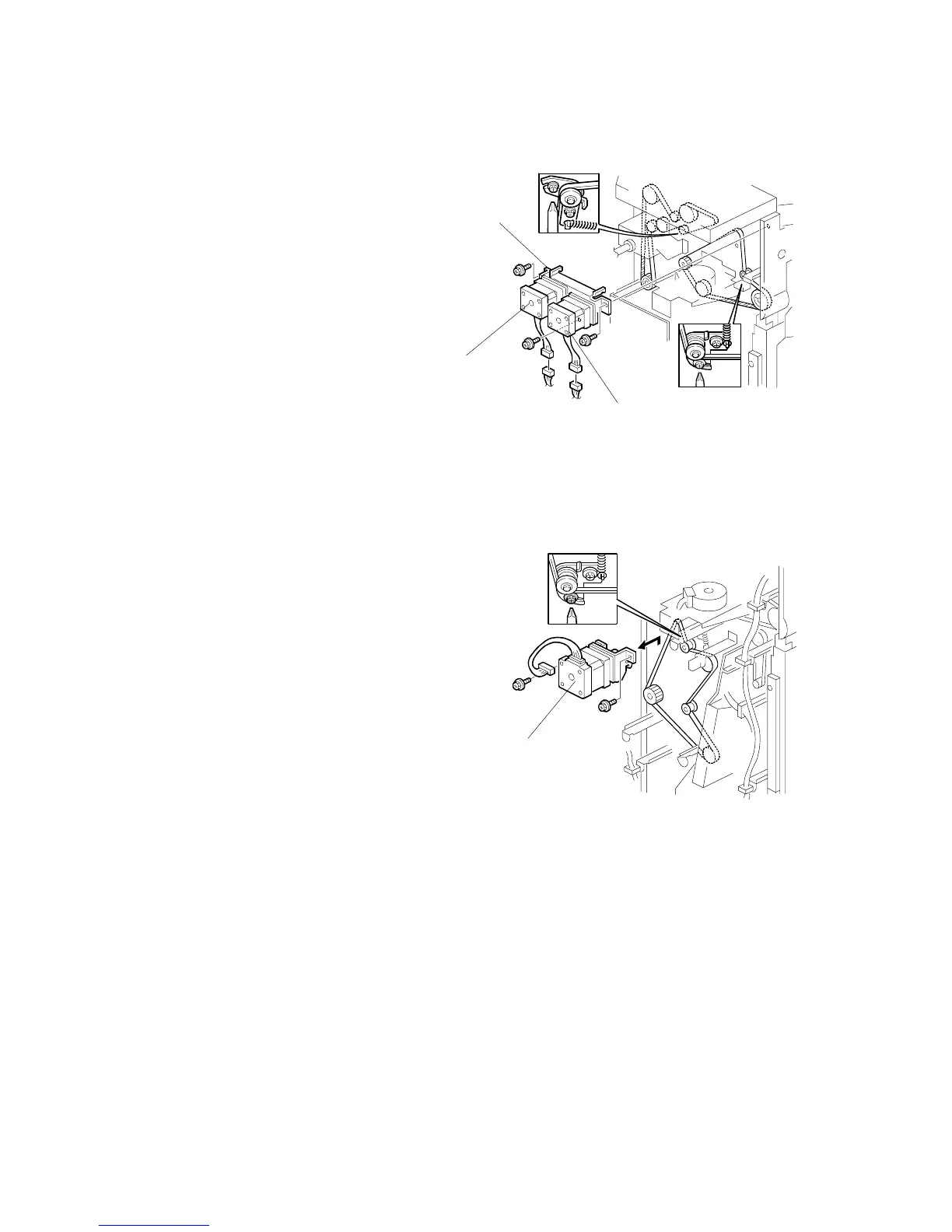

1.3.3 UPPER TRANSPORT MOTOR AND EXIT MOTOR
1. Rear cover (☛1.1)
2. Motor assembly [A] (! x 4, " x 2)
3. Upper transport motor [B] (! x 4)
4. Exit motor [C] (! x 4)
1.3.4 LOWER TRANSPORT MOTOR
1. Main PCB (☛1.1)
2. Lower transport motor [A] (! x 2, " x
1)
B408R112.WMF
B408R111.WMF
[A]
[B]
[C]
[A]
