Ricoh SR790 - 1.4.2 STACK HEIGHT SENSOR; 1.4.3 STAPLER TRAY PAPER SENSOR

MOTORS AND SENSORS 26 July 2002
B408-6
1.4.2 STACK HEIGHT SENSOR
1. Stack height sensor assembly [A] (! x
1)
2. Stack height sensor [B] (" x 1)
1.4.3 STAPLER TRAY PAPER SENSOR
1. Stapler tray paper sensor [A] (" x 1)

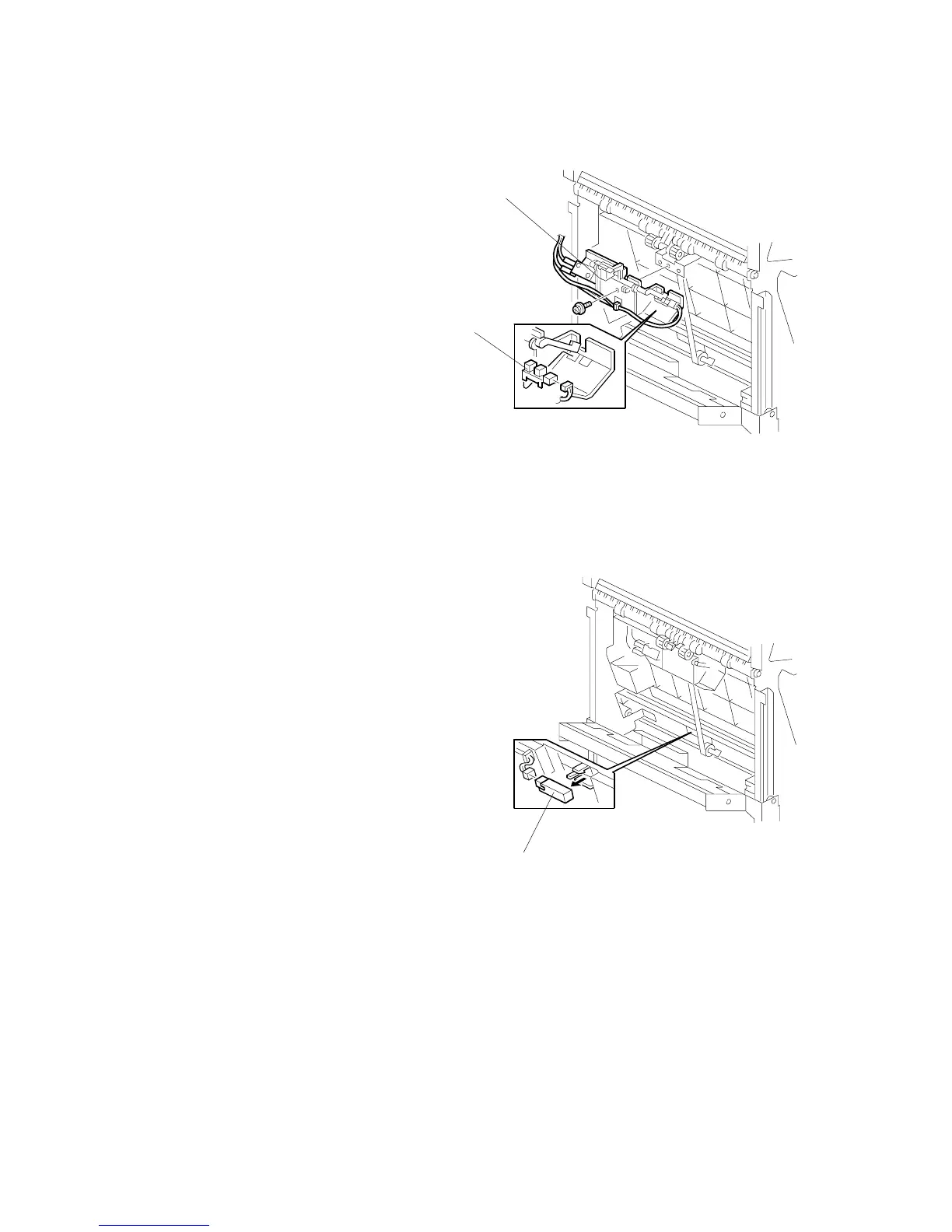

B408R121.WMF
B408R120.WMF
[A]
[B]
[A]
