¡ Interlock Indicator Light

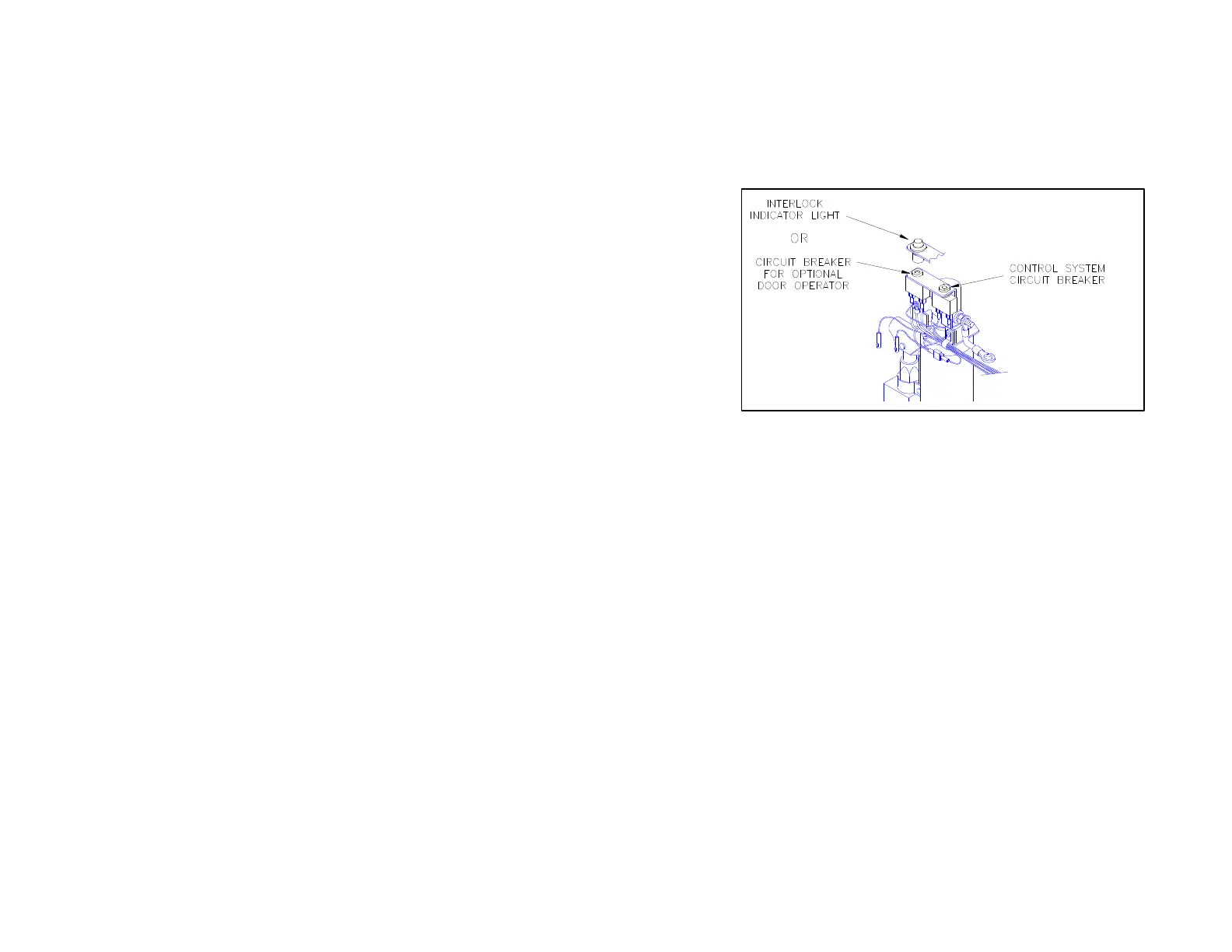

Refer to Figure 2-7. The purpose of a vehicle interlock system is to prevent opera-
tion of lift if an unsafe condition is present. When vehicle interlock systems are in-
terfaced with lift circuitry, the interlock indicator shows whether or not interlock is
operating properly. The light is interfaced with electrical system so that no matter
which interlock system/method is used, the light will be ON when interlock allows
electrical power to lift and OFF when interlock has disabled power to lift. When
there is no interlock system installed, the light stays illuminated at all times.
¡ Optional Door Operator Circuit Breaker
Refer to Figure 2-7. The circuit breaker for optional door operator is located on hy-
draulic pump assembly. In case of a door operator short circuit, the circuit breaker
button will “pop-out”. If pressing and releasing button does not reset power, DO
NOT press and hold. Contact a Ricon authorized dealer for repair. Refer to appro-
priate Remote Power Door Operator Service/Owner manual for a detailed descrip-
tion.
¡ Control System Circuit Breaker
Refer to Figure 2-7. The Control System Circuit Breaker is on hydraulic pump as-
sembly. In case of a control system short circuit, circuit breaker button will “pop-
out”. If pressing and releasing button does not reset power, DO NOT press and
hold. Contact a Ricon authorized dealer for repair.
