Ricon S Series User Manual

32DSSP01.A
2-6
¡ Main Circuit Breaker
Refer to Figure 2-8. The main circuit breaker is
located in vehicle engine compartment and is de-
signed to interrupt electrical power to lift electrical
system when a short circuit occurs. In the event
of a short circuit, the circuit breaker reset tab will
“flip-down”. If pressing reset tab UP and releas-
ing does not reset power, DO NOT press and hold
tab. Contact a Ricon authorized dealer for repair.
¡ Manual Back-Up Pump
Refer to Figure 2-9. The manual
backup pump is used to operate
lift if electrical power is not func-
tional. The controls for pump
consist of a pump handle for
raising lift platform and a pump
release valve for lowering it. In-
structions for operating manual
pump are provided in the MAN-
UAL OPERATION paragraph,
which is part of the LIFT OP-
ERATION section in this chapter.

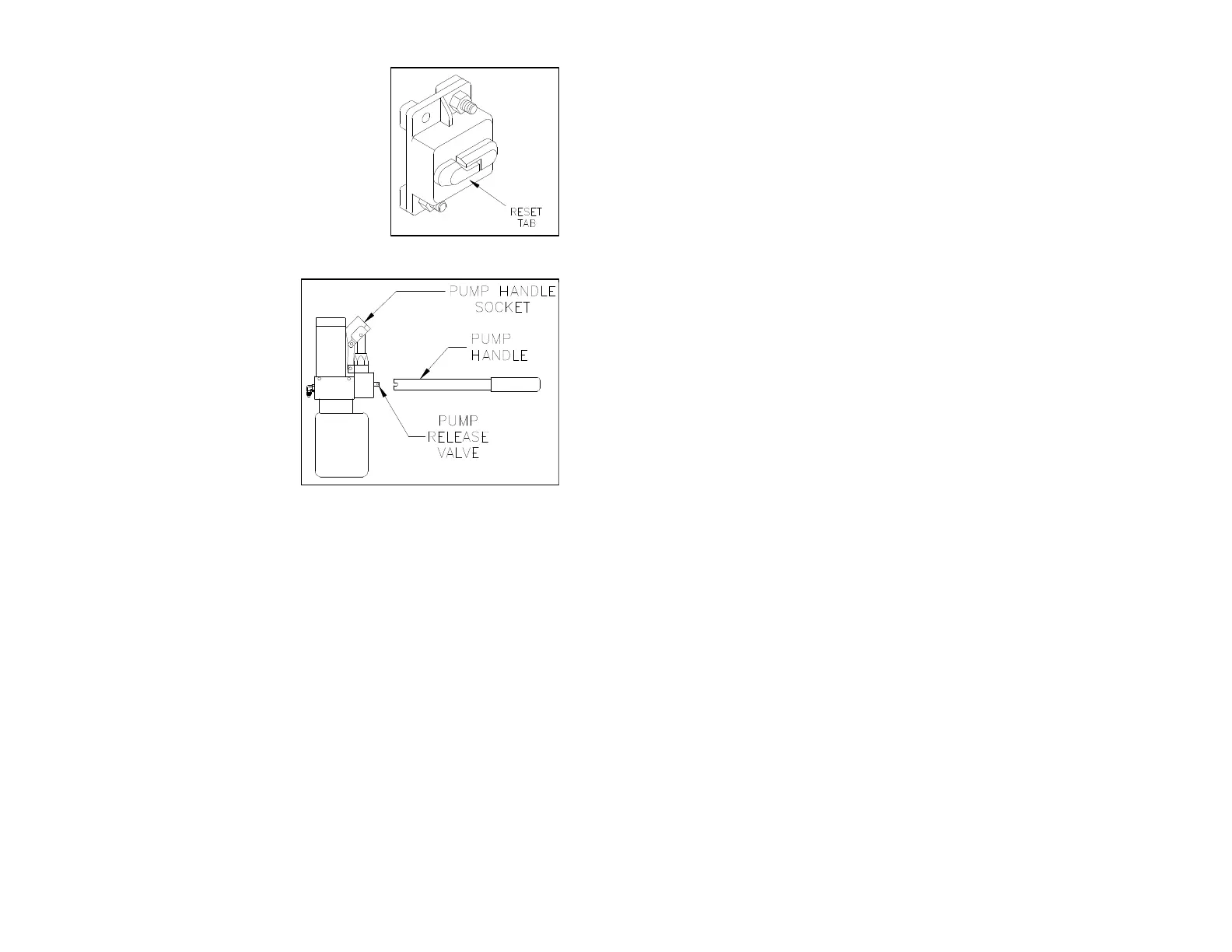

FIGURE 2
-
8: MAIN CI
RCUIT
BREAKER
FIGURE 2
-
9: MANUAL
BACKUP PUMP &
HANDLE
