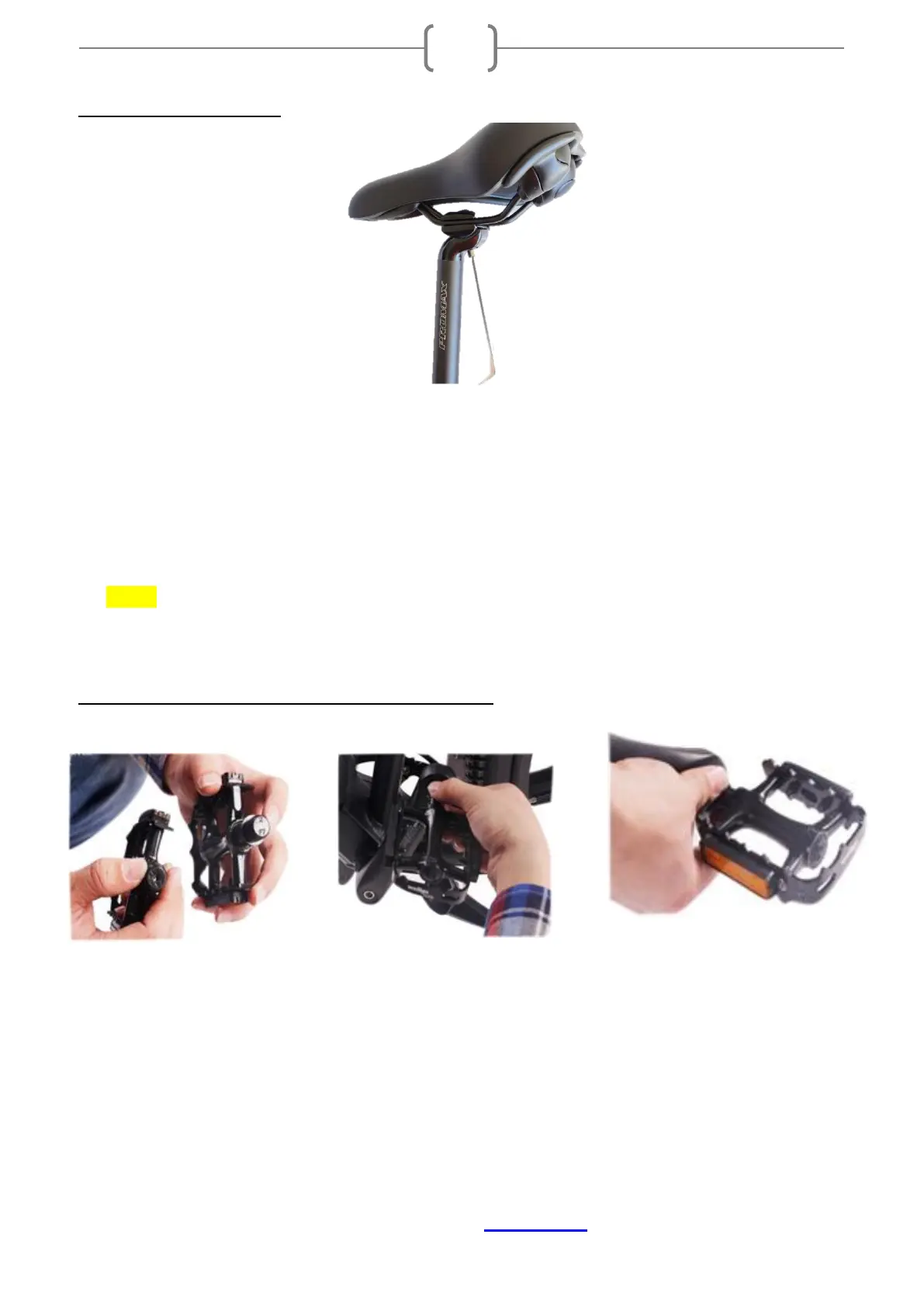

2.5 Seat Clamp Assembly:
• Slide saddle into seat post clamp.
• Using an 6mm hex wrench. Tighten the bolt to 12 nm of torque (unless noted otherwise on
seatpost).
• The seat post angle is adjustable. Ensure the grooves are properly aligned. Ensure the bolt(s)
is correctly torqued. If left loose or over-tightened, the seat post bolt could snap causing
serious injury and/or death.
NOTE: ◆ SOME GENERATIONS COME WITH THE SEAT POST SEPARATE FROM THE SADDLE.
IF ALREADY JOINED, CHECK THAT THE TORQUE ON THE BOLT IS TIGHTENED TO THE
PROPER TORQUE.
2.6 Pedal Assembly (LEFT AND RIGHT ARE UNIQUE):
• The left pedal (marked “L”) must be installed in the left crank arm. It is reverse thread, rotate counter-
clockwise to install and tighten.
• Screw each pedal into a crank by hand. They should screw in easily to start. Do not force them.
• The right pedal (marked with an “R”) must be installed in the right crank arm. It is standard thread,
rotate clockwise to install and tighten.
• Use an adjustable wrench to finish tightening the pedal in place.
