Original components are small 0603
footprints, but the larger 0805
footprint can be used as a
replacement with minimal effort.
(Need to scrape off a little solder
mask)

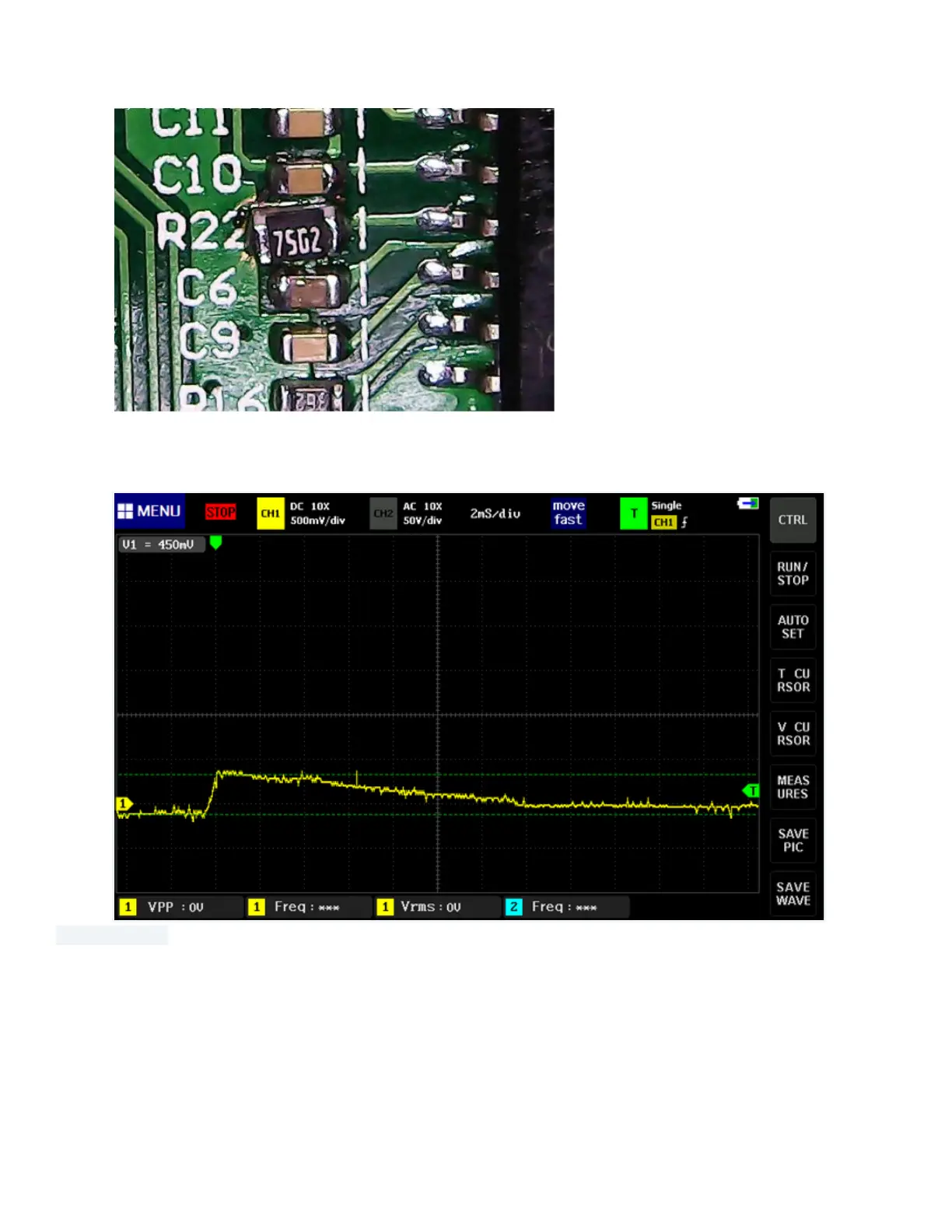

0805 Components can (fairly) easily fit for mod - (75K Resistor Installed)
The output surge becomes much smaller. (as measured with a 56K resistor installed)
Increasing the resistance of the resistor increases the turn-on delay even more.
Resultantly, the surge at the output will become even less or completely disappear.
(UniSoft suggests a resistor value between 68K - 100K.
