9 - English
33.9
33.9
22.5
22.5

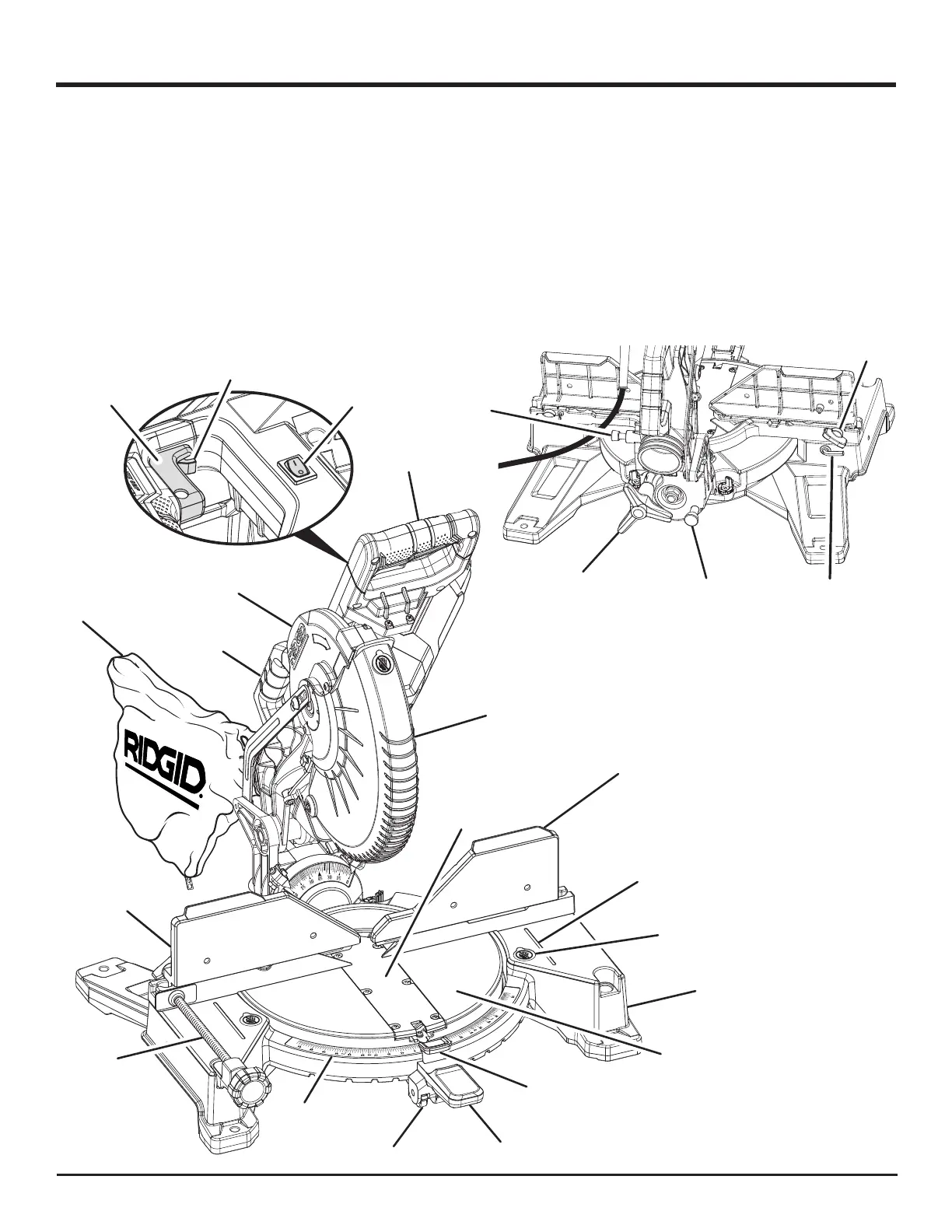

FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Blade Diameter ............................................................10 in.
Arbor Hole ................................................................. 5/8 in.
No Load Speed ........................................5,000/min. (RPM)
Input ................................. 120 V, AC Only, 60 Hz, 15 Amps
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes .....................2 in. x 6 in.
or 4 in. x 4 in.
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes .....................2 in. x 4 in.
Cutting Capacity (Right Bevel) with Miter at 0°/Bevel 45°:
Maximum lumber sizes ......................... 3/4 in. x 4-1/4 in.
Cutting Capacity (Left Bevel) with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes .....................2 in. x 6 in.
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes .....................2 in. x 4 in.
Cutting Capacity for Baseboards against the fence:
Maximum height ................................... 3-5/8 in. x 3/4 in.
LOCK PIN
FENCE
SCREW
BLADE WRENCH
STORAGE AREA
BEVEL
LOCK KNOB
BEVEL
STOP PIN
UPPER BLADE
GUARD
CARRYING
HANDLE
DUST
BAG
SLIDING MITER
FENCE
WORK
CLAMP
CONTROL ARM
THROAT
PLATE
LOWER
BLADE GUARD
SLIDING
MITER FENCE
“NO HANDS ZONE”
LABEL
“NO HANDS ZONE”
BOUNDARY LINE
SAW
BASE
MITER
TABLE
MITER
LOCK LEVER
DETENT
RELEASE BUTTON
MITER
SCALE
“D” HANDLE
LED
SWITCH
SWITCH
TRIGGER
TRIGGER
LOCKOUT LEVER
