RIDGID RT1400 - Drum;Caddy Assembly

3. Installing Cap Nut
a. Place cap nut on end of axle.
b. Tap gently with hammer until fully
seated.
c. Place wheel on the axle with smooth
portion of wheel facing outward.
NOTE: Smooth side of the
wheel to the outside.
Caddy Left
Drain
Axle
w/Wheel
Caddy
Right
Open
End
Cap
Nut

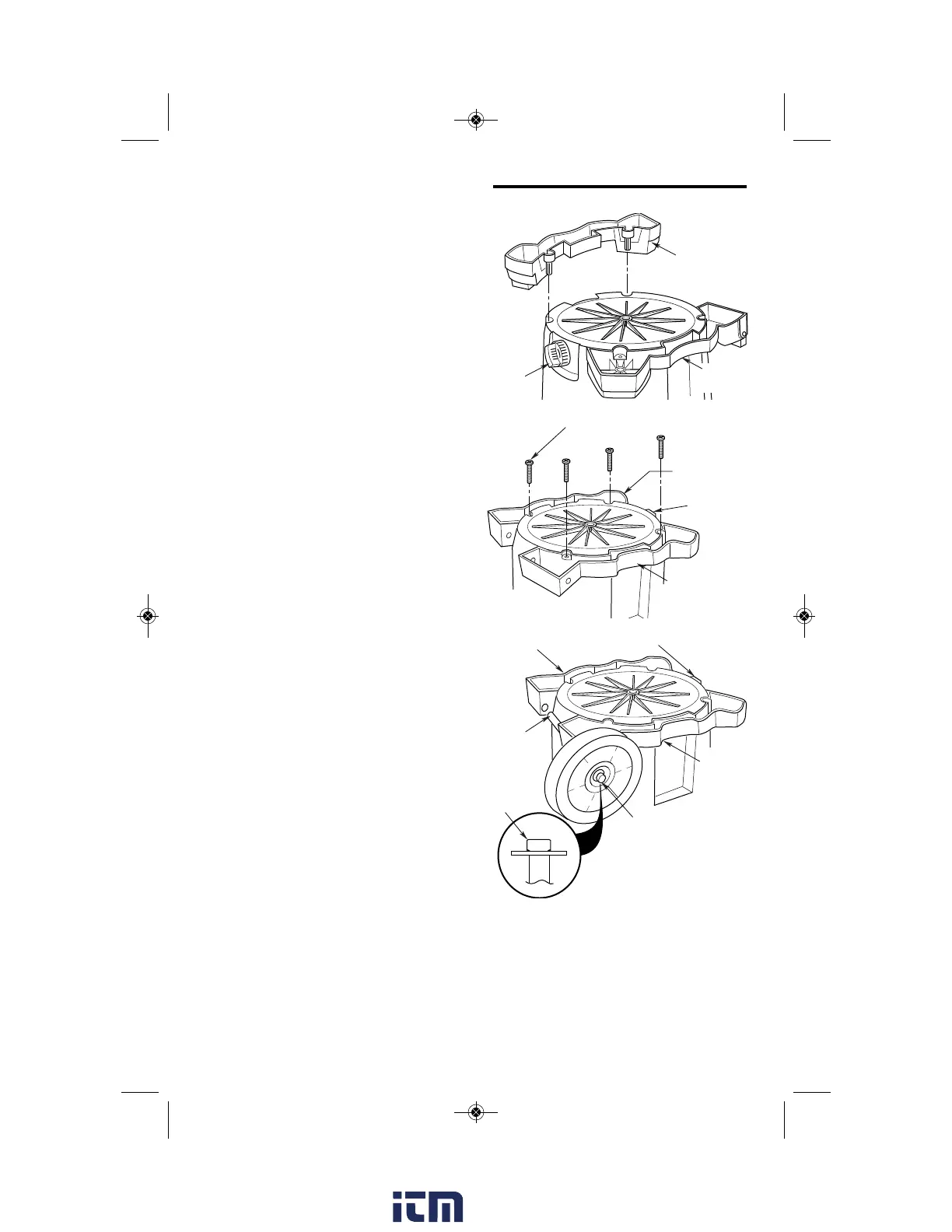

Drum/Caddy Assembly
Caddy
Right
Drain
Caddy
Left
Right
Caddy
Assembly
Left Caddy
Assembly
Drain
#10 x 1-3/4"
Screw (4)
If any parts are missing or damaged
contact Customer Service.
Do not assemble until you have all the
parts.
1. Insert caddy left and caddy right into
the bottom of drum as shown. Light
taps with a mallet or hammer may be
needed to fully seat both caddies.
2. Install (4) #10 x 1-3/4” screws into
matching holes on both right and left
side of caddy, securing them to the
bottom of the drum. Tighten screws
until just snug. Do not over tighten as
this may tend to deform the caddies.
6
