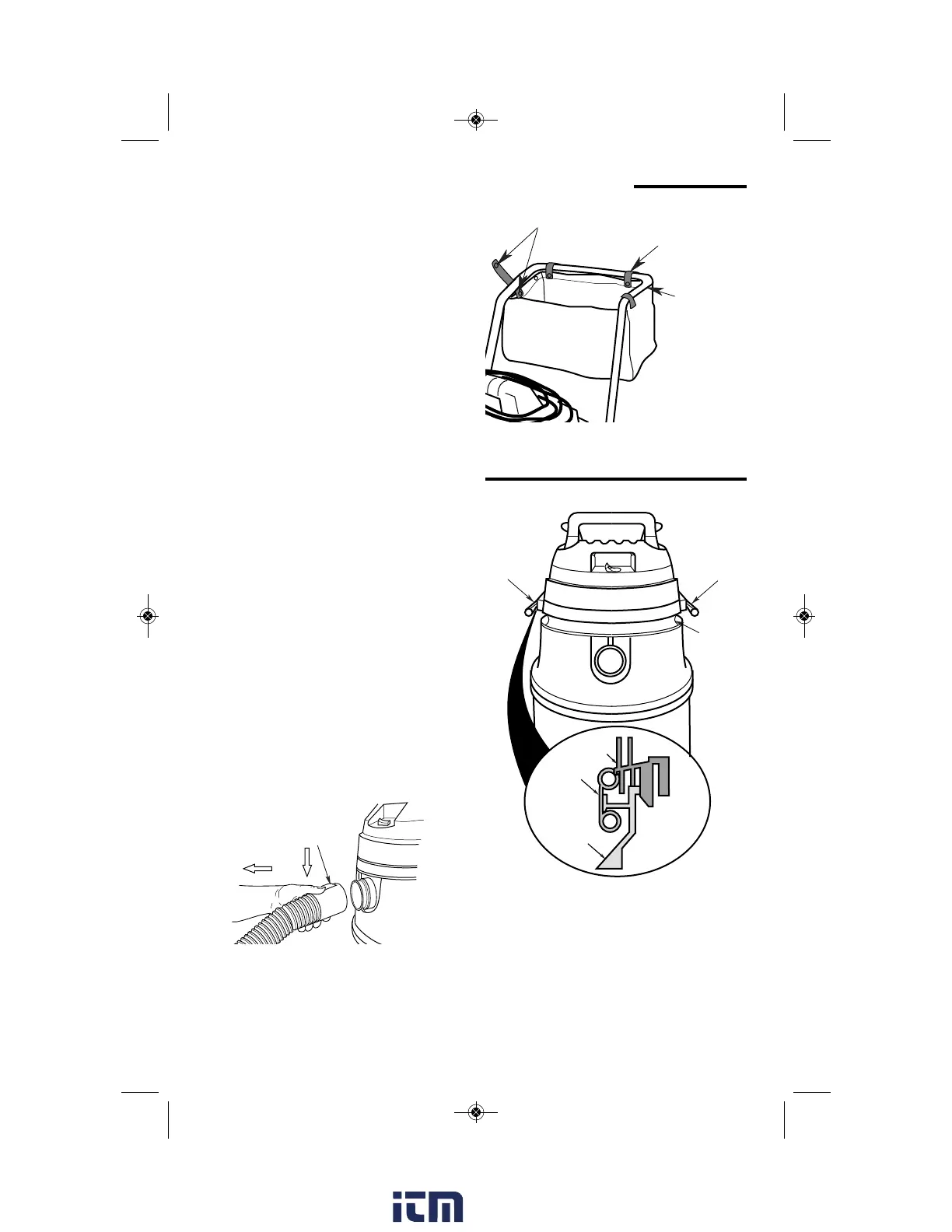

Wet/Dry Vac Assembly
1. Position the power head assembly on
the drum/caddy assembly as shown
(assembled earlier).
2. Rotate both latches down and press
until you hear them snap over the
flanges on the drum.
Drum
Latch
Drum
Latch
Drum
Flange
Latch
Drum
Powerhead
Assembly
Insert Hose
Insert the push button end of the pro-
hose into the inlet of the Vac. The hose
should snap into place.
To remove the hose from the Vac, press
the release button in the hose assembly
and pull the hose out of the Vac inlet,
as shown.
Release
Button
Press
and
Pull
Accessory
Bag Snaps
Accessory
Bag Straps (4)
Handle
Installing Accessory Bag
Install accessory bag by wrapping the
four accessory bag straps around the
metal handle.
Secure accessory bag by snapping each
of the four snaps.
Drum/Caddy Assembly (continued)
