8
INSTALLATION
2.4.2 Setting the Unit
Remove the top and side wooden panels, the plastic lm and the
polystyrene sheets. Remove the lag screws securing the unit to the
shipping skid. Lift the unit off the shipping skid with a forklift and
position it on the oor in the desired location.
9
WARNING: When lifting or moving the boiler: do not attempt
to manipulate the boiler using the top water anges or any
other component of the boiler.
9
WARNING: When lifting or moving the boiler with a forklift:
make sure the forks are longer than the boiler size (width or
depth) so that forks stick out as per Fig. 4.

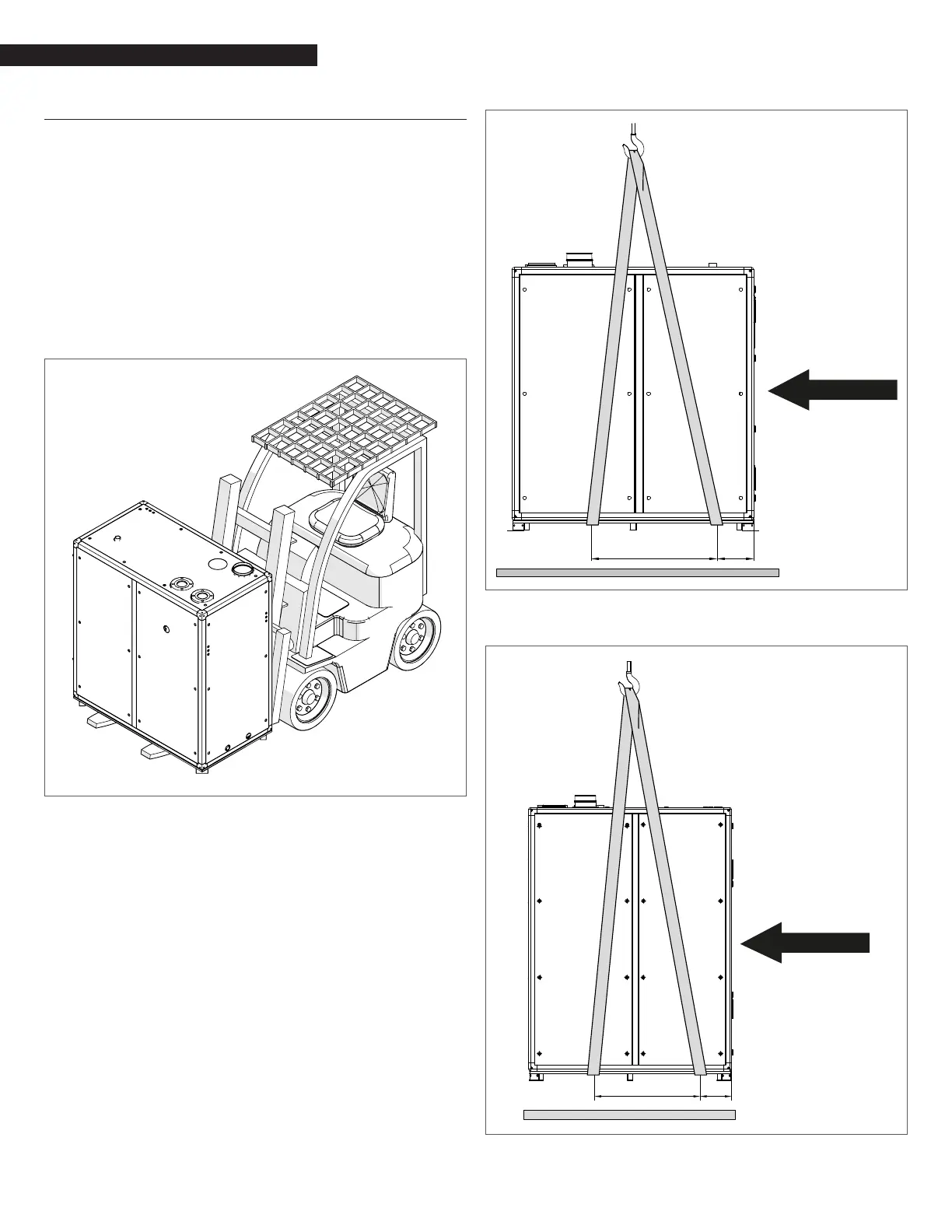

Fig. 4 Array AR 1000, AR 1500 and AR 2000 Forklift Handling
If a crane is required, the boiler must be lifted through bands.
9
WARNING: When lifting the boiler with crane: use bands, no
chains. Bands must comply with federal, state and local rules.
9
WARNING: When lifting the boiler with crane: the bands must
be positioned according to the Fig. 5 and Fig. 6.
In multiple unit installations, it is important to plan the position
of each unit in advance. Sufcient space for piping connections
and future service/maintenance requirements must also be taken
into consideration. All piping must include ample provisions for
expansion.
FRONT
12.6”31.1”
Fig. 5 Array AR 1000, AR 1500 Crane Lifting Handling
12.6”29.5”
FRONT
Fig. 6 Array AR 2000 Crane Lifting Handling
