12
CONDENSING GENERATORS
Wall-hung gas condensing modules

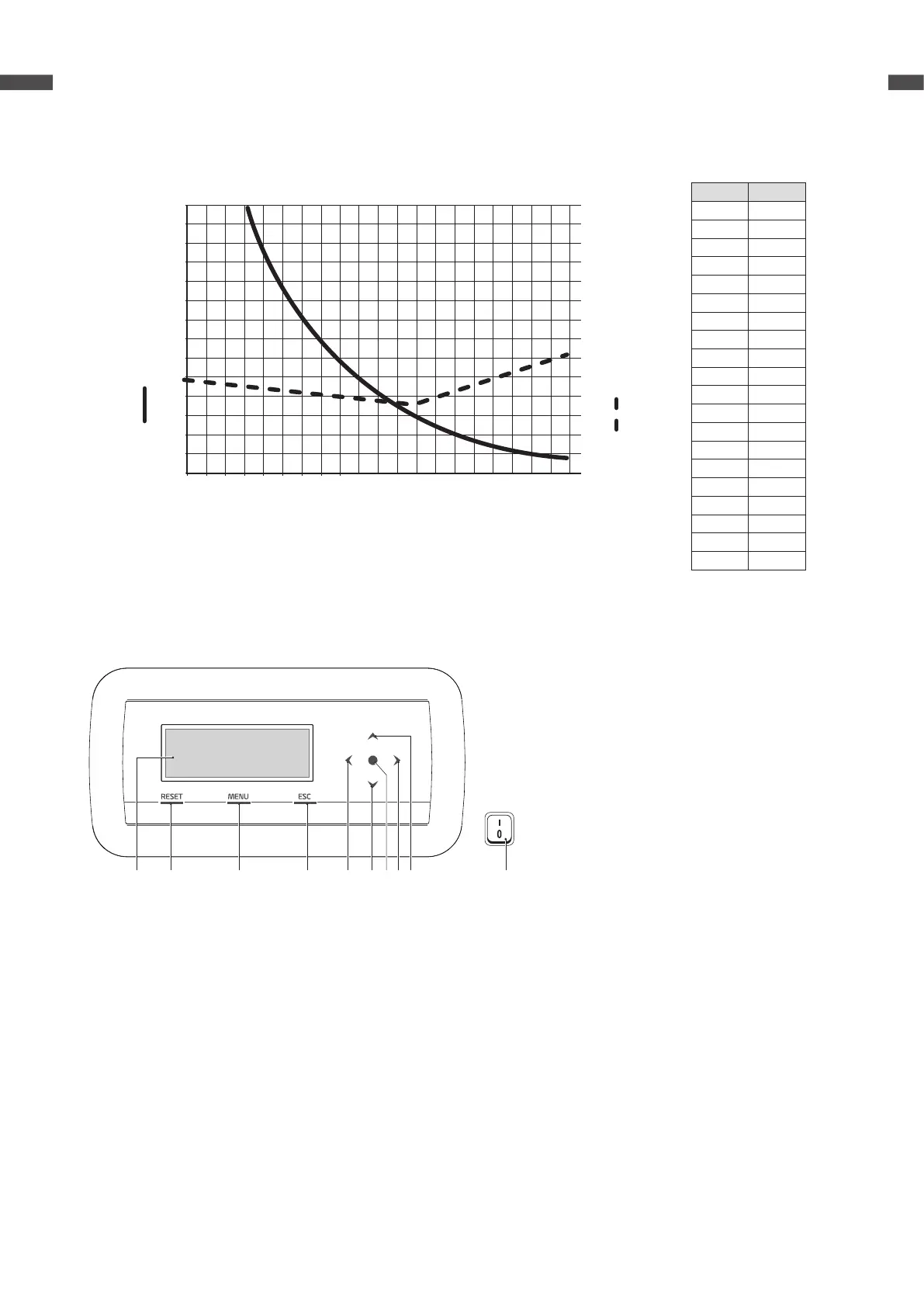

T (°C) R (° Ω )
0 27396
5 22140
10 17999
15 14716
20 12099
25 10000
30 8308
35 6936
40 5819
45 4904
50 4151
55 3529
60 3012
65 2582
70 2221
80 1663
85 1446
90 1262
95 1105
100 970
0
2000
R (Ohm)
∆
T (K)
4000
6000
8000
10000
12000
14000
0,0
0,5
1,0
1,5
2,00
2,5
3,0
3,5
0 20 25 3010 40 60 7050 80 90 100
T (C°)
Correspondence table valid for all probes
CONTROL PANEL
21 3 4 5 6 7 98 10
1. 255x80 backlit display (106,4x39,0mm)
2. RESET button: allows operation to be
restored after a fault stop
3. MENU button: allows access to the main
menu
4. ESC button: in the menu navigation it
allows to exit from a menu item and
return to the previous one
5. Navigation button ◄
6. Navigation button ▼
7. Navigation button ●
8. Navigation button ►
9. Navigation button ▲
10. Main switch (located on the bottom of
the appliance)
